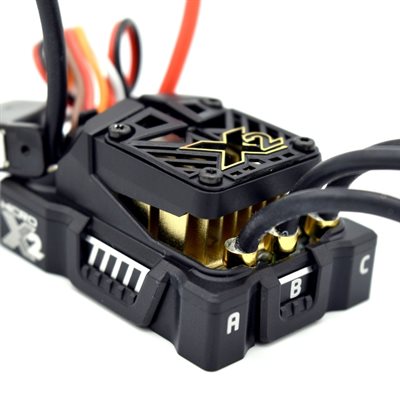

Mamba Micro X2, 16.8V, WP SENSORED ESC (4.0MM)
Product #: 010-0171-00
Putting the X in Extreme!
The Mamba Micro X2 is a refresh of our popular Mamba Micro X. This new ESC increases the maximum input voltage to 4s. We also added DATA LOGGING and our CRYO-DRIVE™ TECHNOLOGY; CryoDrive allows the ESC to run cooler and more efficiently at partial throttle. Like its predecessor, it is waterproof* and has SENSORED MOTOR SUPPORT.This ESC is ideal for the weight conscious builder or where space is limited, used in low speed crawling or trail running in vehicles weighing up to 8lbs on 2s or 3s; it can also be used in slightly more aggressive setups like rock racing and extended hill climbing on vehicles up to 4lbs. Recommended motors include Castle's "Slate" crawler motors (combos available) and Holmes Hobbies Puller Pro 540 "Stubby" (≤ 2700kv)
Important Product Update, 6/14/2023.
The internal BEC is back! All Micro X2s made on or after June 2023 will again have the internal BEC. You can check the date of manufacture on the side of the ESC box or on the ESCs receiver wire. ESCs made between August 2022 and May 2023 do not have an internal BEC and include an external 10-amp CC BEC; click here for more information.
If you're looking for a more aggressive setup in a heavier rig, like rock racing and extended hill climbing, we recommend you run the Mamba X ESC. Like its predecessor it includes improved features for rock crawling, including active drag brake and drag brake ramp.
FEATURES:
- Input Voltage range 2S-4S
- Waterproof design
- Sensored Motor capable
- Convenient transmitter programming for six common adjustable settings.
- Additional settings and software updates available via Windows®-based Castle Link software and USB adapter (coupon included with purchase) or the Castle Link App and a B-LINK Bluetooth Adapter (sold separately)
- Telemetry Ready (Compatible with S.BUS2 Telemetry Link and Futaba T4PX, T7PX and T7PXR transmitters)
- Auxiliary Wire Functionality allows for “on-the-fly” adjustments such as Max Power and Max Brake.
- Audible Alerts that will notify you of possible issues with calibrations and error conditions.
- Designed and manufactured in Olathe, Kansas and is backed by our 1-year warranty.
Mamba Micro X2 ESC Purchase Includes:
- Mamba Micro X2 ESC with 4mm Connectors
- Sensor Harness
- Coupon for free Castle Link USB adapter
- Driver's Ed and Quick Start Guide
- Castle Decals
*Not intended for operation while submerged in liquid. If unit is operated in wet conditions, rinse with fresh water to remove dirt or corrosives, then fully dry unit.
| Resources | ||
|---|---|---|
| Mamba Micro X2 Quick Start | Mamba Micro X2 Drivers Ed Guide | 0808 Motor Gearing Chart |
| Mamba Micro X2 FAQ | Audible Alert Reference Chart | |
| Technical Specs | |
|---|---|
| Input Voltage Range: | 2S-4S LiPo (16.8V Max) |
| BEC Specifications: | 2A Peak, 5.5v or 7.5v (5.5v default) |
| Operating Environment: | Waterproof* design allows for use in nearly any environment; included CC BEC is not waterproof. |
| Brake: | Proportional |
| Reversible: | Yes, but may be disabled |
| On/Off Switch: | Yes, waterproof |
| Cooling Fan: | Coming soon, uses 25mm size fan |
| Size (L x W x H): | 41.6 mm x 29.4 mm x 21.3 mm (1.64" x 1.16" x .84") |
| Weight (with wires): | 1.66 oz / 47 grams |
| Connectors: | 4.0 mm bullets |
| Items Needed for Operation: | Battery Connector required, 4 mm Castle Connectors are recommended. |
| Product Use Statements: |
|
| Application Guidelines: | 1:14 scale RC vehicles weighing up to 3lbs and 1:10 scale low speed crawler vehicles up to 9lbs. |
| Recommended Motors: | Castle 1406-1900Kv Sensored Motor Castle 1406-2280Kv Sensored Motor Castle 1406-2850Kv Sensored Motor |
| Programmability: | Additional settings and software updates available via Windows®-based Castle Link software and USB adapter (coupon included with purchase) or the Castle Link App for Android or iOS and a B-LINK Bluetooth Adapter (sold separately) |
| Telemetry Link Capable: | Yes, with Castle Creations Telemetry Link for S.BUS2 and Futaba T4PX and T7PX Transmitters. |
| Tech Notes: | If running on 4s, and using two 2s LiPos in series, please refer to this BEC wiring diagram. *Although the Mamba Micro X2 is waterproof, it is not intended for operation while completely submerged in liquid. They can corrode when exposed to corrosive materials, such as salt water. Always rinse the ESC with clean water after exposure to corrosives or dirt. While the controller may be waterproof, we suggest users confirm that the rest of their vehicle, including the batteries, servos, radio and chassis are also waterproof before exposing them to liquids of any kind. |
For support, frequently asked questions, technical documents, and more, visit our support site.Castle Creations, Inc. warrants this product to be free frommanufacturing defects for a period of one year from date of purchase.
This is a high power product with the potential to be very dangerous.Please read the safety information before use. This product may containchemicals known to the State of California to cause cancer and or birthdefects or other reproductive harm.
U.S. Patent # 7400103, 7492122, 7579796, 7740516, 8287328, 8678875, and 8905814 B2 - Other patents pending.
Controller designed and circuit boards manufactured, in Olathe, Kansas USA.
Controller assembled in Olathe, Kansas USA.
This is a high power product with the potential to be very dangerous.Please read the safety information before use. This product may containchemicals known to the State of California to cause cancer and or birthdefects or other reproductive harm.
U.S. Patent # 7400103, 7492122, 7579796, 7740516, 8287328, 8678875, and 8905814 B2 - Other patents pending.
Controller designed and circuit boards manufactured, in Olathe, Kansas USA.
Controller assembled in Olathe, Kansas USA.
| Product Features | |
|---|---|
| Data-Logging | Enabled by default, the Mamba Micro X2 captures and records performance data from your vehicle. This allows you to view a detailed turn-by-turn record of what your ESC actually experienced during the run. You will be able to record real-time data such as motor RPM, ESC and motor temperature, throttle input, and more. Download and analyze the collected data via Castle Link and make adjustments to maximize both performance and battery life. Quick Tip: You can use the Quick Connect Duo (sold separately) to allow you to access both wires into a single Castle Link connection. |
| Auxiliary Functionality: | The Mamba Micro X2 allows “on-the-fly” adjustments to be made through the AUX wire once enabled in Castle Link. Once you have selected an AUX wire function, that setting can then be tuned from your transmitter while driving. Torque control, max throttle, max brake and drag brake adjustments are a sampling of the available modes. This real-time tuning allows you to quickly and easily fine-tune your system. . Click here for additional information. |
| Programmability: | For over 24 years Castle engineers have been setting the bar for industry leading software functionality. The Castle Link Programming Suite is your ticket to creating the perfect setup. To gain access to the host of tuning parameters, simply redeem the coupon for the Castle Link adapter included with your Mamba Micro X2 purchase and download the simple to install software from our website and you are ready to personalize your controller's settings. You can now wirelessly program your ESC with the free Castle Link Mobile App and the purchase the B-Link Bluetooth Adapter. Don’t forget to use the “check for updates” feature in Castle Link to download new software as it becomes available. New features are yours at no cost, a perk for choosing Castle. |
| Firmware Updates: | Users will receive free access to all firmware updates, including added features sets using the Castle Link USB Programming Kit or the Castle Link App and a B-Link Bluetooth Adapter. |
| Warranty: | The Mamba Micro X2 is proudly designed and manufactured in Olathe, Kansas and is backed by Castle Creations’ 1-year warranty and unparalleled "make-it-right" customer support. Call us, email us, or walk in our front door – we’re here to help. Click here for additional information about our Tier 1 and Tier II warranty. |
| Power System Alerts: | Audible Alerts that will notify you of possible issues with calibrations and error conditions to help diagnose problems in the field. |
| Telemetry Ready: | Mamba Micro X2 is telemetry ready, which means owners of Futaba T4PX or 7PX Transmitters will be able to purchase the Castle Creations Telemetry Link for S.BUS2. Real-time data such as ESC temperature, voltages, and RPM can be monitored to ensure performance advantages and spare you the “unknown” parameters that all R/C enthusiasts experience at some point. Telemetry data provides another level of protection and can increase performance. |
| Optional Accessories | |
|---|---|
| 011-0135-00 | B-Link Bluetooth Adapter supports iOS and Android App |
| 010-0152-00 | Telemetry Link S.BUS |
| 010-0149-00 | Castle Link Quick Connect Duo |
| 011-0145-00 | Direct Connect Sensor Wire - 200mm |
| 011-0146-00 | Direct Connect Sensor Wire - 250mm |
| 011-0147-00 | Direct Connect Sensor Wire - 300mm |
| 011-0154-00 | Servo Direct Connect |
| Service Parts | |
|---|---|
| 011-0105-00 | Replacement receiver harness |
| 011-0108-00 | Replacement sensor harness |
