B-Link Bluetooth Adapter

Castle Link

Product #: 011-0135-00

(Based on 31 vote(s))
11 review(s) | Write a review
USD $54.95 /EA
List Price: USD $67.95 /EA
  • Accessories : PC Software and Cables
    • EA
  • Tell a Friend
  • Availability: This item is in stock.

Control at your fingertips!

Castle Link™ ESC tuning is an essential component for customizing vehicle performance for many Castle Creations’ customers. While the controllers are plug and play, optimizing a Castle ESC through the Castle Link Programming Suite unlocks the full range of capabilities that set Castle apart from the competition. Users enjoy the ability to adjust many variables to enhance their experience including throttle, braking curve, drag brake, reverse type and more. The Castle B•LINK™ Bluetooth™ Adapter enables users to wirelessly program settings and view and download data logs on current Castle Creations ESCs, many older models and the BEC 2.0/BEC Pro on Apple iOS devices and now Android devices!

REQUIREMENTS:

  • Apple devices require iOS version 10.0 or higher. Click HERE for a list of compatible devices.
  • Android devices require version 5.0 or higher.

A complete listing of compatible ESCs and accessories can be found under "Additional Resources" tab.

The free Castle Link app for iOS is available on the Apple App Store for use with iPhones and iPads, and Google Play for Android devices. Once downloaded, it does not require a data connection and can be used anywhere, including remote areas.

FEATURES:
  • WIRELESS BLUETOOTH COMMUNICATION allows you to interface with most Castle Link compatible ESCs and accessories to change parameters and update  firmware.
  • COMPACT AND LIGHTWEIGHT at 1.20" x .81" x .25" (30.48mm x 20.55mm x 6.55mm) and 0.23oz (6.62g), it can be installed in the vehicle or airframe without significantly increasing model weight.
  • CONVENIENT WATERPROOF DESIGN allows you to quickly adjust settings in the field without disconnecting or disassembling the model. It can stay installed in the model or be easily swapped between models.
  • FREE APP DOWNLOAD is readily available in the Apple App Store and Google Play. Once downloaded it does not require a data connection so it can be used in the most remote of areas and won’t use data.
  • EASY TO USE application can be used with multiple B-Link Bluetooth Adapters or can store model information and allow you to use one adapter on multiple models.
  • PASSCODE PROTECTED with (user-selectable) 4-digit code to prevent unwanted tampering with your settings.
  • SYNC information between multiple devices by creating a free account (requires internet connection to sync database).



    Note: Castle B-Link Bluetooth adapter is not compatible with Castle Telemetry Link for Spektrum X-Bus and Castle Telemetry Link for Futaba S.Bus2. The B-Link can be used to adjust settings on the ESC; but it cannot be run in conjunction with the Telemetry Links.

    Technical Specifications

    Input Voltage:

    Minimum: 4.5V - Maximum: 13V

    Max Continuous Current:

    10A

    Maximum Burst Current:

    20A

    Dimensions (with wires):

    7.25" x 0.81" x 0.27" (184.15mm x 20.55mm x 0.27"mm)

    Dimensions (w/o wires):

    1.20" x 0.81" x 0.27" (30.48mm x 20.55mm x 0.27"mm)

    Weight:

    6.62gm / 0.015lbs

    Needed for Operation:

    Castle Link App found at Apple App Store or Google Play and compatible ESC and/or Accessory

    Tech Notes:

    Not compatible with Castle Telemetry Link for Spektrum XBus and Futaba S.Bus2


    Resources

    FAQ







    Castle Creations, Inc. warrants this product to be free from manufacturing defects for a period of one year from date of purchase.  Click here for additional information about our warranty.







    CAS
    TLE LINK APP FEATURES:

    The Castle Link App contains all of the same tuning options as the Castle Link USB Programming Suite used on a Windows compatible PC, now with even greater flexibility.

    Note: It is not possible to view data logs through the app at this time, but developers will continue to add features such as this.

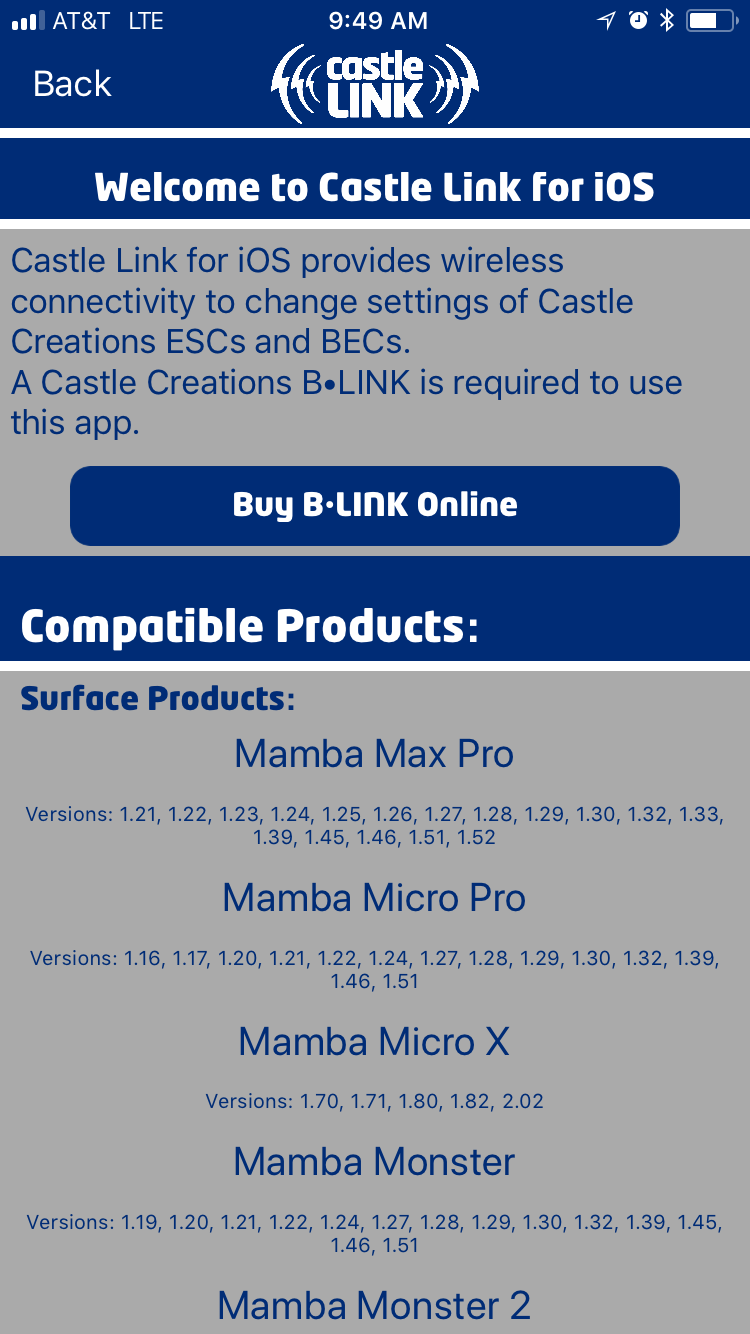

    iPhone 8 Screen Shots

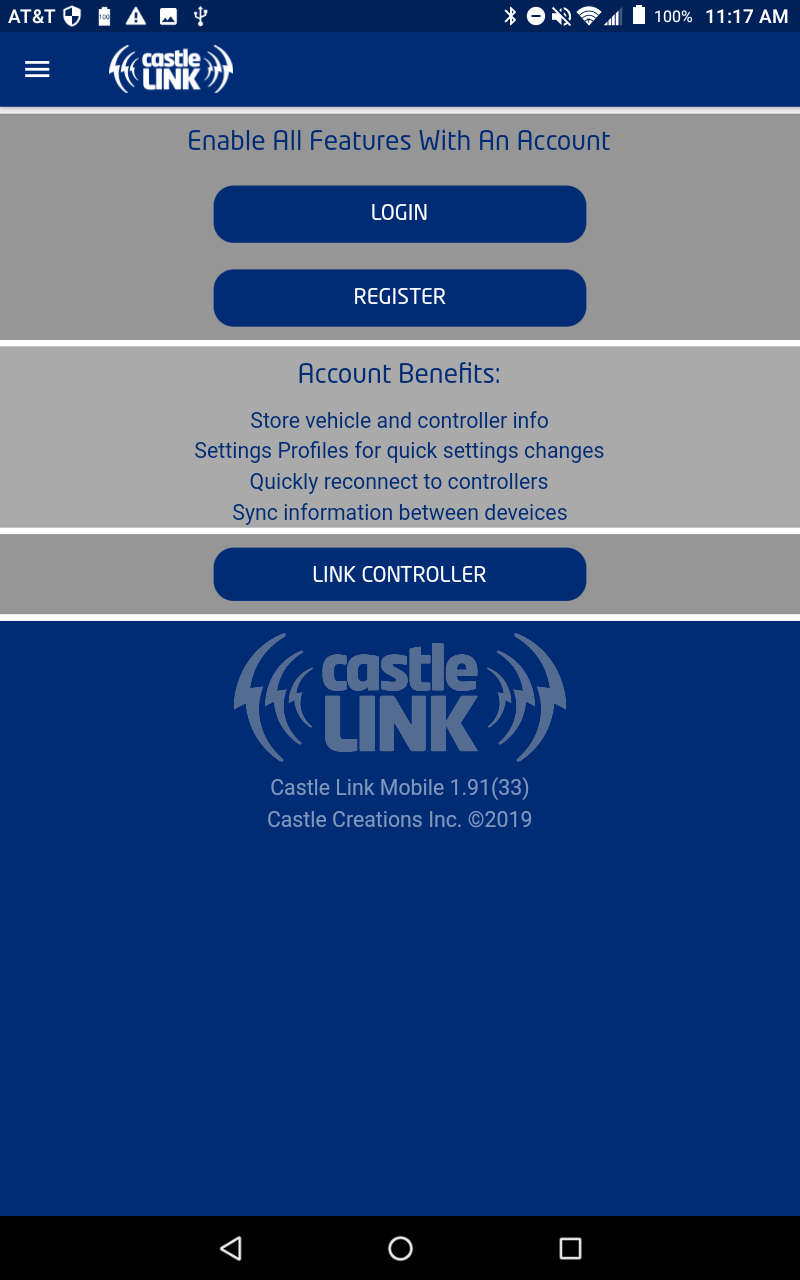

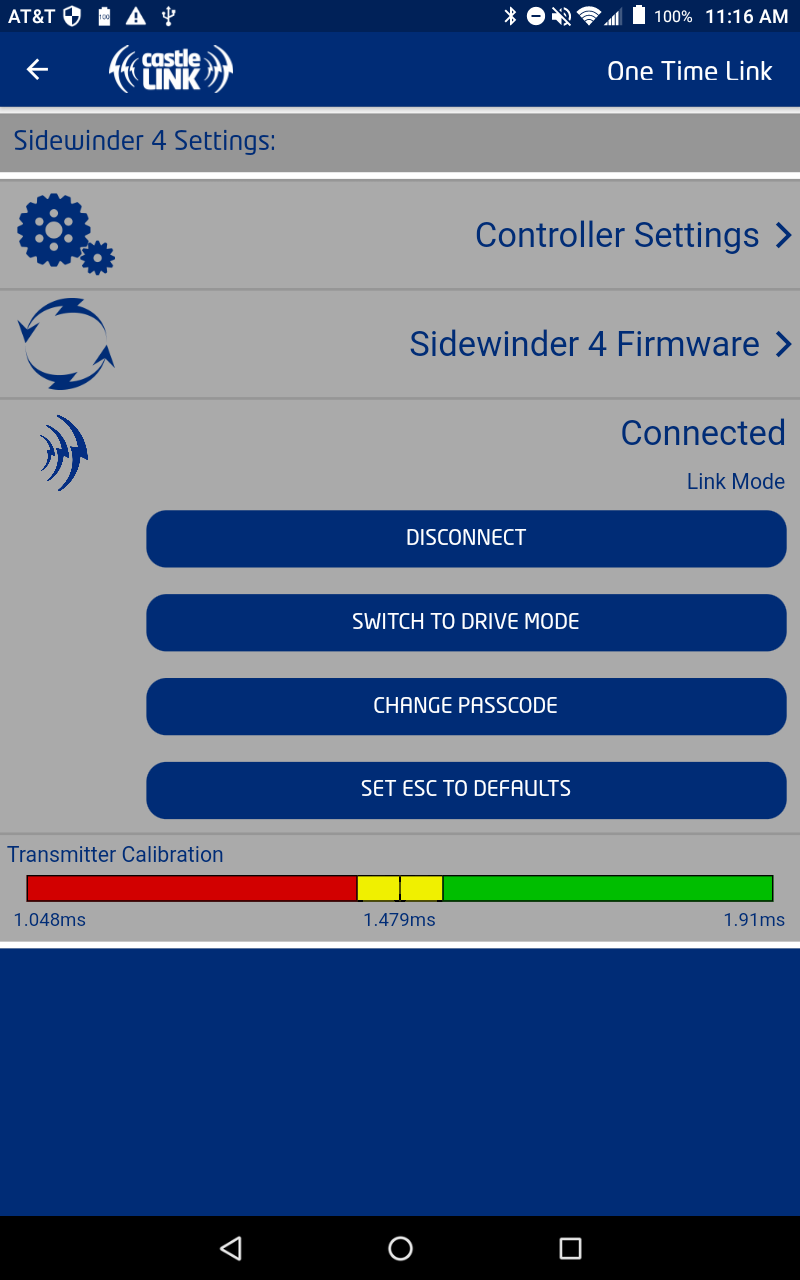

    Android Screen Shots




    Mamba Max Pro

    Multirotor 25

    Multirotor 35

    Mamba Micro Pro

    Phoenix Edge 50

    Phoenix Edge Lite 50

    Mamba Micro X/2

    Phoenix Edge 75

    Phoenix Edge Lite 75

    Mamba Monster

    Phoenix Edge 100

    Phoenix Edge Lite 100

    Mamba Monster 2

    Phoenix Edge 130

    Phoenix Edge Lite 130

    Mamba Monster X

    Phoenix Edge 200

    Phoenix Edge Lite 200

    Mamba X

    Phoenix Edge HV 40

    Phoenix Edge Lite HV 40

    Mamba XL 2

    Phoenix Edge HV 60

    Phoenix Edge Lite HV 60

    Mamba XL X

    Phoenix Edge HV 80

    Phoenix Edge Lite HV 80

    Sidewinder V2

    Phoenix Edge HV 120

    Phoenix Edge Lite HV 120

    Sidewinder 3

    Phoenix Edge HV 160

    Phoenix Edge Lite HV 160

    Sidewinder 4

    Phoenix Edge HV 160 F

    Talon HV 120

    Sidewinder 8th

    Talon 15

    Talon 25

    Sidewinder Micro

    Talon 35

    Talon 60

    Sidewinder Micro 2

    Talon 90

    DMR 30/40

    Sidewinder SCT





    Copperhead 10

    Hydra X8s



    Mamba Monster X 8S

    Hydra XLX2
