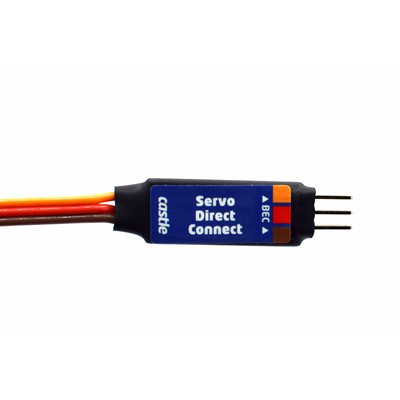

Servo Direct Connect
Product #: 011-0154-00
Useful for power hungry servos that need a dedicated power supply; or when running a high voltage servo with receivers or other servos that need lower voltage. This allows you to use the ESC's internal BEC at lower voltage to power the receiver, and the external BEC, along with the Servo Direct Connect, to power the steering servo at higher voltages.
1 - Servo Quick Connect
1 - Heat shrink tubing
1. Install BEC per manufacturer's instructions and adjust output voltage to desired level.
2. Connect the servo to pins on side of Servo Direct Connect marked "Servo".
|Input voltage:||4.8 - 8.4 volts|
|Servo Direct Connect Wiring Diagram
