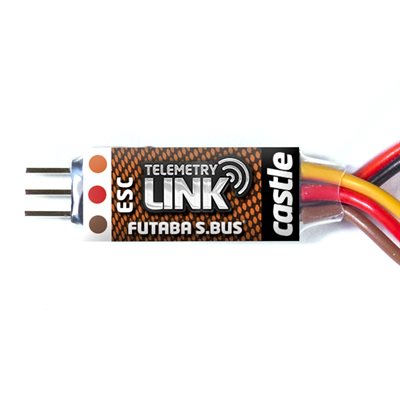

Telemetry Link for Futaba S.Bus2

Product #: 010-0152-00

UPC code:819326011191

(Based on 8 vote(s))
3 review(s) | Write a review
USD $54.95 /EA
List Price: USD $67.95 /EA
  • Accessories : Telemetry Items
    • EA
  • Tell a Friend
  • Availability: This item is in stock.


Knowledge is Power!

Maybe you want to know the voltage of your onboard battery(s), the RPM the motor is turning or the temperature of your ESC. In this day and age R/C is not just one way communication anymore. Traditional radio systems just transmit signals to the receiver, but Telemetry-capable systems also send real-time data from your model back to your transmitter. The S.BUS2 Telemetry Link was developed based on communication protocol disclosed from Futaba for use with specific Futaba S.BUS2 radios and compatible Castle Creations ESCs. Telemetry data can be displayed on the transmitter screen, or notify you when a defined threshold is exceeded, (battery voltage, ESC temperature, etc.) you can configure a vibration or sound alert from the radio.

Let’s start from the beginning.

Why should I integrate Telemetry into my models?

Telemetry has the potential not only to improve the safety of our models by monitoring battery voltages, ESC temperature, and other critical parameters, but it also creates other opportunities to get even more fun out of flying because it reduces the risk of “unknown” inevitable crashes. Think of the benefits to be had from alarms that will sound to warn you if your ESC is running hot or if your receiver battery is running unexpectedly low.

Exactly how does the Castle Telemetry Link integrate into my models?
First and foremost, we need to review essential compatibility parameters.

Please check our Radio Compatibility Chart to verify your transmitter and receiver will work with the Telemetry Link for Futaba S.Bus2.

Technical Specs
Size: Circuit board: 1.0" (25.4mm) x 0.44" (11mm)
Overall dimensions: 5.25" (133mm) x 0.44" (11mm) including wires
Weight: 0.192 oz (5.44g) without wires
Tech Notes The Telemetry Link will not work if the ESC is programmed for Multirotor or External Governor Mode due to the higher PWM frequency.

The maximum RPM is limited to 100,000 electrical RPM (Calculated by multiplying mechanical RPM by half of the magnetic poles)

The Telemetry Link cannot be used in conjunction with the the B-Link Bluetooth adapter.

When using the new Futaba 7PXR transmitter, you must program the Telemetry Link's Throttle input to "External Input Wire".

There is currently a bug with the Monster X 8s, Copperhead 10, Micro X2, Mamba XLX2, Hydra X 8S and Hydra XLX2; it prevents controller temperatures from being displayed correctly. We have been unable to find the root cause and regretfully are unable to find a solution.

Resources
SBUS2 Telemetry Link Configuration

Castle Creations warrants this product to be free from manufacturing defects for a period of one year from date of purchase.

Product designed, and circuit boards manufactured, in Olathe, Kansas USA.
Product assembled in Olathe, Kansas USA.

Compatible Castle ESC The ESC must have the ability to accept a bi-directional communication protocol that gives it the ability to transmit real-time telemetry feedback. This feature is called Link Live™ and needs to be enabled on compatible ESCs using Castle Link™. Click here to view the Castle ESC Compatibility Chart.
Note: The Telemetry Link will not work if the ESC is programmed for Multirotor or External Governor modes due to the higher PWM frequency.
Compatible Futaba S.BUS2 Radio S.BUS2™ extends Futaba S.BUS™ and supports bidirectional communication. Compatible radios will support S.BUS2 protocol. It is also necessary to utilize a compatible Futaba® Telemetry Receiver. Click here to view the Futaba® Radio Compatibility Chart.

Now, let’s see the mechanical integration.

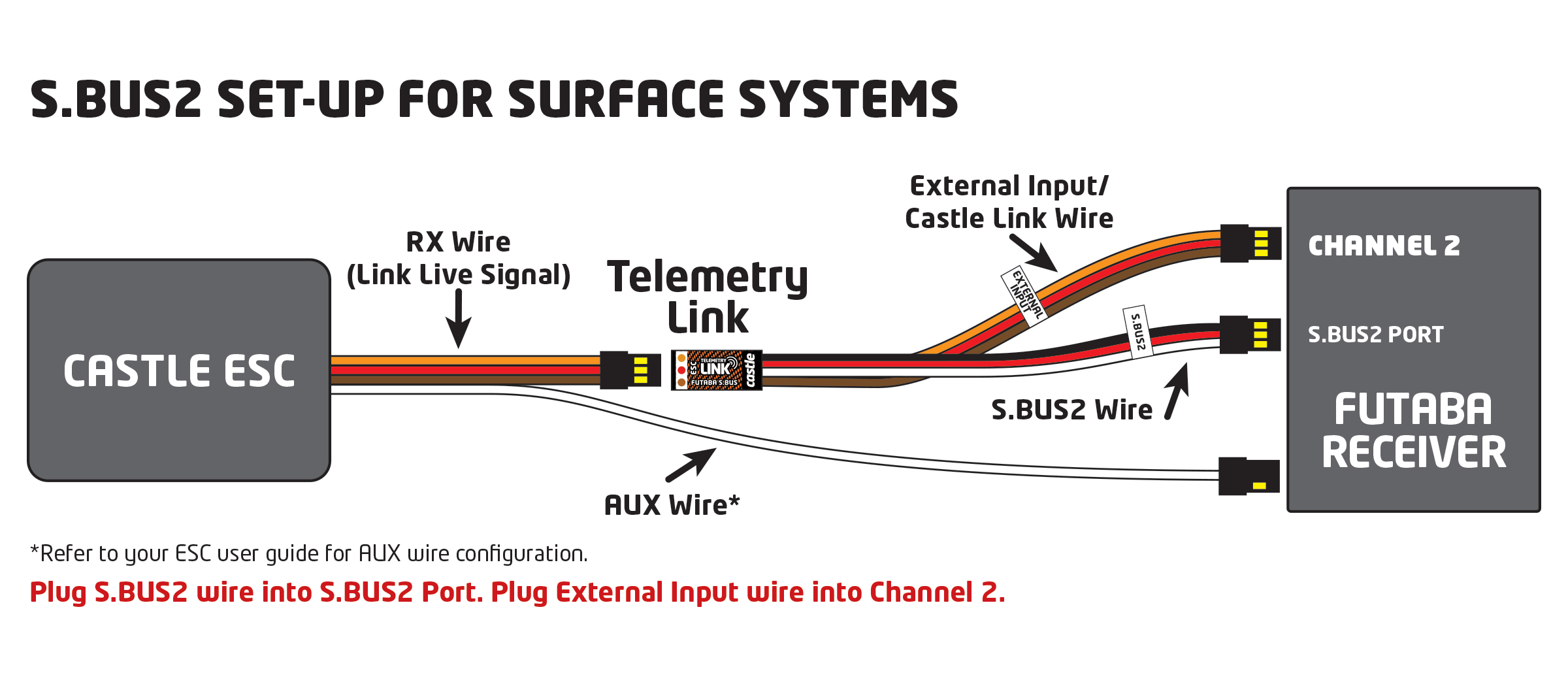

Below is an example of a S.BUS2 Telemetry Link set-up for Surface, Air and Internal Governor Systems. You can see how the Telemetry Link (about 5.4 inches long) connection is made between the Castle ESC and the Futaba® S.BUS2™ receiver. And how about this….there is no requirement for additional Telemetry Sensors for your S.BUS2™ radio when using the S.BUS2 Telemetry Link. There are 7 specific data points available* and you can enable/disable to your liking through Castle Link™.




Note: data points available may vary depending on the ESC's capabilities.

Futaba S.Bus2 Telemetry Link Data Points
Battery Voltage You will be able to see the voltage state of your battery during flight and respond appropriately to deteriorating conditions or alarms you’ve programmed in your radio.
Battery Current Compatible controllers will transmit the instantaneous current draw of the system. You can use this information to reduce the load to prevent an over-current shutdown.
Motor Power Output This is the percentage of full power your ESC is delivering to your motor.
RPM Ensure you are within acceptable parameters, without the use of a tachometer.
BEC Voltage Monitor your BEC voltage and its stability to the RX even under different loads from different servos.
ESC Temperature ESC temperature monitoring can eliminate a potential thermal shut down.
Battery Ripple Just how hard are the capacitors, FETS, and internal components working with your set up, excessive ripple can cause internal heating of batteries. Excessive heat is harmful to the components and it can ultimately kill the controller.

Operation of a model aircraft requiresyour undivided attention. We encourage you to refer to your transmittermanual to configure tactile and/or audible alerts to ensure your safety,and the safety of those around you.


Have confidence in pushing your model to its limits.
Let’s face it, your time and your energy should be devoted to enjoying your craft. Telemetry adds a whole new aspect to the RC pilot or driver that, when set-up and utilized properly, can take a lot of work load away and add to the overall satisfaction and safe operation of model airplanes, helicopters and cars.

You can review compatible radio systems and much more on the S.BUS2 Resource page.

Average rating:
(Based on 8 vote(s))
Rate this product:
Moonie From United States
Hydra XLX2
January 17, 2023
Works vary well with a castle hydra xlx2 and a futaba 10px. This is a must have component if you already have the rest of the hardware to use it.
2 of 2 people found this review helpful
Was this review helpful to you? (2) (0)
Ralph Grant From United States
Needs Consumption Capacity
December 19, 2019
Works great! If only this would provide a "Totalized" current consumption capacity it would be awesome useful. I still use the Futaba SBS01C to tell me total battery used, hence the mah left before landing. This would allow you to not extend your battery leads and/or do extensive soldering like the SBS01C. Make sure your system has S.Bus2. 18MZ-WC, 18MZ, 18SZ, 4PX-R and 4PX
9 of 10 people found this review helpful
Was this review helpful to you? (9) (1)
Alain From Canada
very usefull
May 28, 2018
Reliable, fast and usefull.
But motor temperature is missing. That's a shame.
8 of 12 people found this review helpful
Was this review helpful to you? (8) (4)
