B-Link Wireless Adapter

Castle Link

Product #: 011-0135-00

(Based on 31 vote(s))
11 review(s) | Write a review
USD $54.95 /EA
List Price: USD $67.95 /EA
  • Accessories : PC Software and Cables
    • EA
  • Tell a Friend
  • Availability: This item is in stock.

Control at your fingertips!

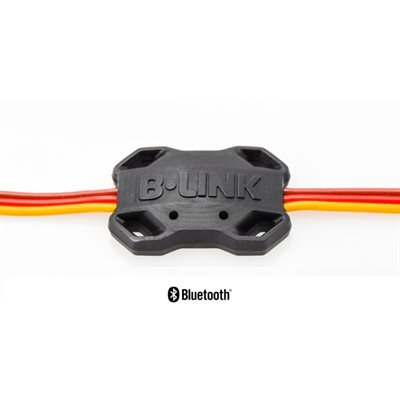

Castle Link™ ESC tuning is an essential component for customizing vehicle performance for many Castle Creations’ customers. While the controllers are plug and play, optimizing a Castle ESC through the Castle Link Programming Suite unlocks the full range of capabilities that set Castle apart from the competition. Users enjoy the ability to adjust many variables to enhance their experience including throttle, braking curve, drag brake, reverse type and more. The Castle B•LINK™ Wireless ™ Adapter enables users to wirelessly program settings and view and download data logs on current Castle Creations ESCs, many older models and the BEC 2.0/BEC Pro on Apple iOS devices and now Android devices!

REQUIREMENTS:

  • Apple devices require iOS version 10.0 or higher. Click HERE for a list of compatible devices.
  • Android devices require version 5.0 or higher.

A complete listing of compatible ESCs and accessories can be found under "Additional Resources" tab.

The free Castle Link app for iOS is available on the Apple App Store for use with iPhones and iPads, and Google Play for Android devices. Once downloaded, it does not require a data connection and can be used anywhere, including remote areas.

FEATURES:
  • WIRELESS COMMUNICATION allows you to interface with most Castle Link compatible ESCs and accessories to change parameters and update  firmware.
  • COMPACT AND LIGHTWEIGHT at 1.20" x .81" x .25" (30.48mm x 20.55mm x 6.55mm) and 0.23oz (6.62g), it can be installed in the vehicle or airframe without significantly increasing model weight.
  • CONVENIENT WATERPROOF DESIGN allows you to quickly adjust settings in the field without disconnecting or disassembling the model. It can stay installed in the model or be easily swapped between models.
  • FREE APP DOWNLOAD is readily available in the Apple App Store and Google Play. Once downloaded it does not require a data connection so it can be used in the most remote of areas and won’t use data.
  • EASY TO USE application can be used with multiple B-Link Wireless Adapters or can store model information and allow you to use one adapter on multiple models.
  • PASSCODE PROTECTED with (user-selectable) 4-digit code to prevent unwanted tampering with your settings.
  • SYNC information between multiple devices by creating a free account (requires internet connection to sync database).



    Note: Castle B-Link Wireless adapter is not compatible with Castle Telemetry Link for Spektrum X-Bus and Castle Telemetry Link for Futaba S.Bus2. The B-Link can be used to adjust settings on the ESC; but it cannot be run in conjunction with the Telemetry Links.

    Technical Specifications

    Input Voltage:

    Minimum: 4.5V - Maximum: 13V

    Max Continuous Current:

    10A

    Maximum Burst Current:

    20A

    Dimensions (with wires):

    7.25" x 0.81" x 0.27" (184.15mm x 20.55mm x 0.27"mm)

    Dimensions (w/o wires):

    1.20" x 0.81" x 0.27" (30.48mm x 20.55mm x 0.27"mm)

    Weight:

    6.62gm / 0.015lbs

    Needed for Operation:

    Castle Link App found at Apple App Store or Google Play and compatible ESC and/or Accessory

    Tech Notes:

    Not compatible with Castle Telemetry Link for Spektrum XBus and Futaba S.Bus2


    Resources

    FAQ







    Castle Creations, Inc. warrants this product to be free from manufacturing defects for a period of one year from date of purchase.  Click here for additional information about our warranty.







    CAS
    TLE LINK APP FEATURES:

    The Castle Link App contains all of the same tuning options as the Castle Link USB Programming Suite used on a Windows compatible PC, now with even greater flexibility.

    Note: It is not possible to view data logs through the app at this time, but developers will continue to add features such as this.

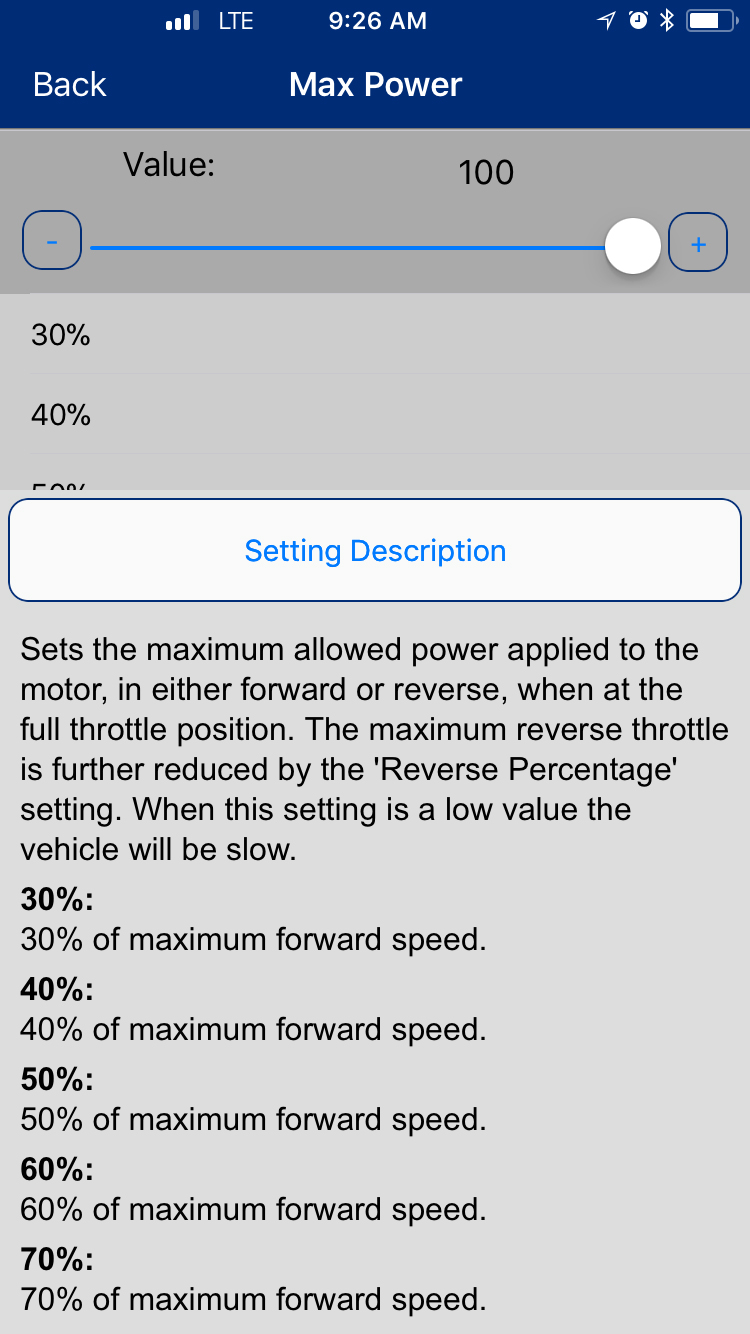

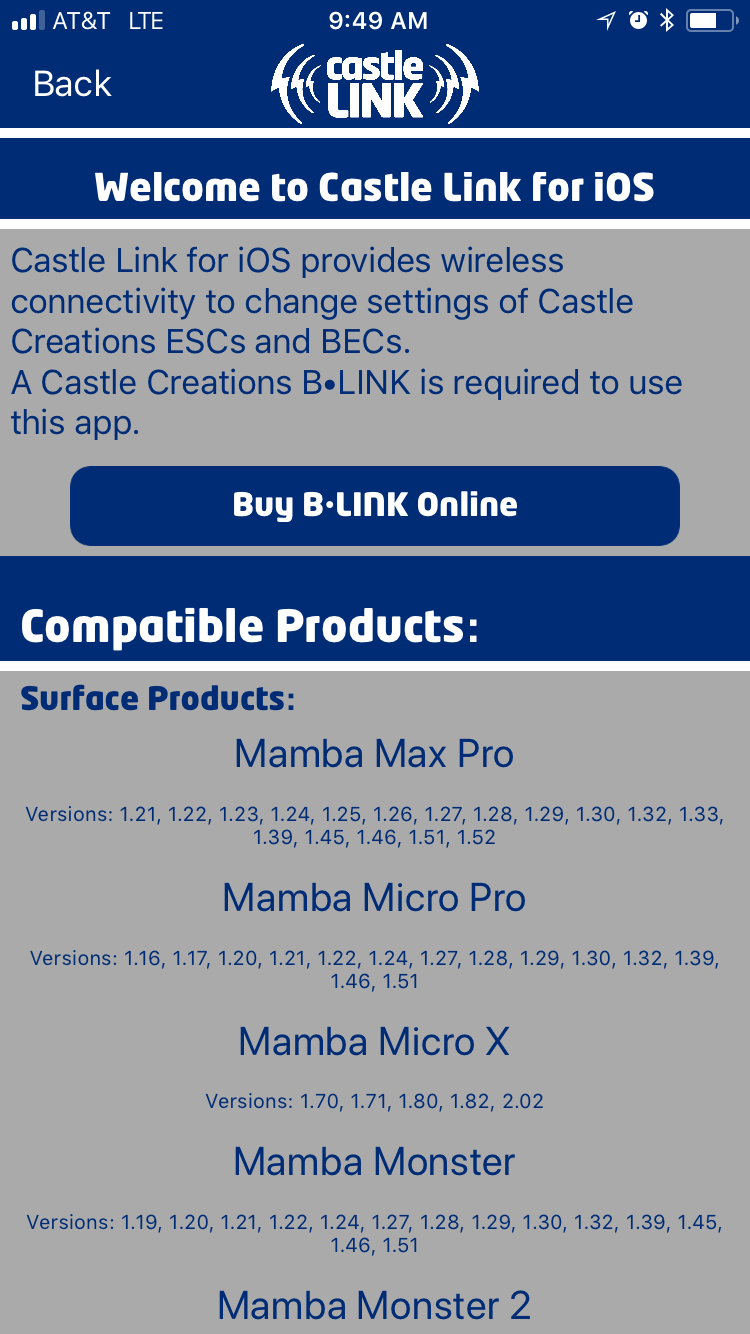

    iPhone 8 Screen Shots




    Android Screen Shots




    Mamba Max Pro

    Multirotor 25

    Multirotor 35

    Mamba Micro Pro

    Phoenix Edge 50

    Phoenix Edge Lite 50

    Mamba Micro X/2

    Phoenix Edge 75

    Phoenix Edge Lite 75

    Mamba Monster

    Phoenix Edge 100

    Phoenix Edge Lite 100

    Mamba Monster 2

    Phoenix Edge 130

    Phoenix Edge Lite 130

    Mamba Monster X

    Phoenix Edge 200

    Phoenix Edge Lite 200

    Mamba X

    Phoenix Edge HV 40

    Phoenix Edge Lite HV 40

    Mamba XL 2

    Phoenix Edge HV 60

    Phoenix Edge Lite HV 60

    Mamba XL X

    Phoenix Edge HV 80

    Phoenix Edge Lite HV 80

    Sidewinder V2

    Phoenix Edge HV 120

    Phoenix Edge Lite HV 120

    Sidewinder 3

    Phoenix Edge HV 160

    Phoenix Edge Lite HV 160

    Sidewinder 4

    Phoenix Edge HV 160 F

    Talon HV 120

    Sidewinder 8th

    Talon 15

    Talon 25

    Sidewinder Micro

    Talon 35

    Talon 60

    Sidewinder Micro 2

    Talon 90

    DMR 30/40

    Sidewinder SCT





    Copperhead 10

    Hydra X8s



    Mamba Monster X 8S

    Hydra XLX2




    Average rating:
    (Based on 31 vote(s))
    Rate this product:
    Drew Yard From United States Arizona
    B-link adapter
    July 13, 2024
    Love this, I use it on 5 different rigs to tune each just the way I like them
    1 of 1 people found this review helpful
    Was this review helpful to you? (1) (0)
    Mike From Canada
    Super Convenient
    January 2, 2023
    I have 3 of these B-Links, permanently mounted in my Ryfts and VS4-10. I find them super convenient to make programming changes on the fly to account for changes in terrain and general conditions. Too much drag brake, call it up and change the setting and send to the esc. Still don't like it, change it again. All kinds of settings can be changed as you go. Well worth the extra cost.
    2 of 2 people found this review helpful
    Was this review helpful to you? (2) (0)
    Mike From Ny
    B-link and telemetry
    March 22, 2021
    Make b-link compatible with the telemetry connector ftw
    4 of 5 people found this review helpful
    Was this review helpful to you? (4) (1)
    Billy From United States
    Need to Fix Current Limiting Save Bug
    July 4, 2020
    Good product but currently collecting dust -- literally. If you modify the "current limiting" setting, then save settings, the current liming value will default to 200A. In fact, if I set the current limiting value to more than 200A on PC -- then use B-Link to adjust and save settings other values (yet do not change current limiting), current limiting defaults to 200A.
    I have had this since fall and no update as indicated by support. I understand that Covid-19 has affected R&D schedules (as a PM, I am in the same boat) -- but status would be nice.
    Will definitely change score when resolved. :-)
    16 of 18 people found this review helpful
    Was this review helpful to you? (16) (2)
    André From Germany
    B-Link
    July 25, 2019
    Nice tool, works perfectely. Easy 2 use.
    BUT still no Data-Logging possible (u cant read them out)
    8 of 10 people found this review helpful
    Was this review helpful to you? (8) (2)
    Gadget Guy From United States
    Stop Your Whining Android Users
    July 6, 2019
    Stop bashing a product you can't even fairly evaluate. CC already said an Android version is on the way, so stop your whining already. I'm an Apple-only guy and didn't whine when they didn't support Mac OS X systems. I just created a Windblows partition on my laptop and boot into Windblows anytime I need to mod an ESC. This is a great solution for Apple users and so much simpler to use in the field than lugging around a laptop. Kudos to Castle Creations for engineering a great product like this. Enjoy the Android support when it gets here. Be patient grasshopper.
    14 of 49 people found this review helpful
    Was this review helpful to you? (14) (35)
    Petko From Denmark
    Needs an android app
    July 3, 2019
    Please make an android app.
    There people outside of the United States aren't very fond of apple and their overpriced products.
    If you look at the global Mobile OS usage, you're on the wrong side.
    Android 72.48%
    iOS 26.64%
    13 of 25 people found this review helpful
    Was this review helpful to you? (13) (12)
    Jarret From United States
    Mobile OS Market Share
    June 5, 2019
    So the Bluetooth adapter and software were developed for iOS only, which has a global market share of just 14.9%, vs Android with 85.1% (via IDC.com). This gap is projected to widen between now and 2022 by 2 to 4%.

    Hopefully an Android version is in the works. 85% is a lot of lost consumers.
    4 of 17 people found this review helpful
    Was this review helpful to you? (4) (13)
    Dale N From Pennsylvania
    B-link
    April 21, 2019
    Love the wireless connectivity but without it working on Android is a huge minus. And the other downfall is you cannot connect wirelessly to your data log. I have had this awhile and seems like nothing gets done to fix it. Not very happy due to those reasons
    4 of 4 people found this review helpful
    Was this review helpful to you? (4) (0)
    Computer Nut From Canada
    B-Link
    March 17, 2019
    Having previously used a Castle Link with an Axial ESC and 10A BEC, when I purchased my new Mamba X I decided to get this new B-Module. I am glad I did, works great and no having to disconnect everything to re-program it. I only wish the promised Android version would come out soon so I wouldn't have to use my work iPhone.
    6 of 6 people found this review helpful
    Was this review helpful to you? (6) (0)
    Vern Hicks From Canada
    B link
    May 15, 2018
    Works effortlessly and his I feel essential to castle ESC’s. Definitely enhances experience. Links while vehicle running and disconnects without power off so cool.
    13 of 18 people found this review helpful
    Was this review helpful to you? (13) (5)
