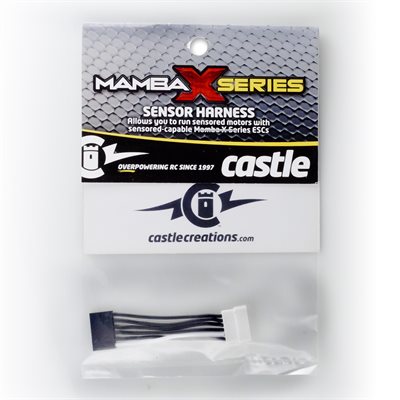

Mamba X-Series Sensor Harness
Product #: 011-0108-00
UPC code:819326011108
The Mamba X Series Sensor Harness allows you to run sensored motors with Mamba Monster X, Mamba Monster X 8S, Mamba X, Mamba XLX2, and Mamba Micro X2 ESCs. Also compatible with Copperhead 10 ESC.
Note: This part can be eliminated by using the Direct Connect Sensor Wire; it allows you to connect directly to the ESC and back of the motor.
Available in 200mm, 250mm and 300mm.
Note: This part can be eliminated by using the Direct Connect Sensor Wire; it allows you to connect directly to the ESC and back of the motor.
Available in 200mm, 250mm and 300mm.
Sensor Harness Connection Instructions
- Remove the sensor dust cover from the ESC (replace dust cover if changing back to a sensorless motor).
- Insert the Sensor Harness into the ESC, orienting the Sensor Harness to match the ESC label.
- Connect your sensored motor wires to the ESC. (Connect A to A, B to B and C to C.) Motor wire orientation is important; to change motor direction use Castle Link.
- Connect your motor’s sensor wire to the Sensor Harness.
| Resources | |
|---|---|
| Replacement instructions for Monster X |
|
Castle Creations, Inc. warrants this product to be free from manufacturing defects for a period of one year from date of purchase.
This product may contain chemicals known to the State of California to cause cancer and or birth defects or other reproductive harm.
Product designed in Olathe, Kansas USA.
Product made in China.
