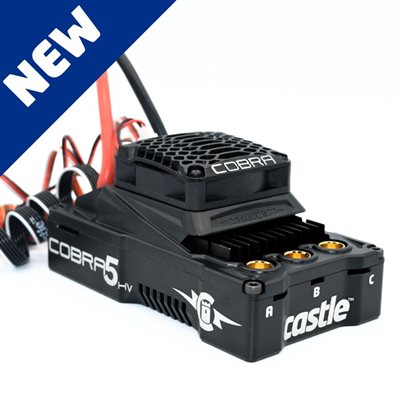

COBRA 5 HV, 12S, 50.4V ESC, 20A PEAK BEC
Product #: 010-0178-00
COBRA 5 HV - HIGH VOLTAGE. NO COMPROMISE
The Castle Cobra 5 HV takes everything the Cobra 5 has and dials it up to 12. With 50.4V support (12S LiPo) this ESC is built to tame 1:4 scale monsters weighing up to 50 lbs.
COBRA 5 HV FEATURES:
- Double the maximum sample frequency of older generations.
- 8x increased logging time of older generations.
- ESC electrical motor timing data.
- Acceleration data via onboard accelerometer.
- Looping feature prevents interruptions in data log recording.
- Improved braking adjustability
- Separate brake and reverse curves
- Highly adjustable internal BEC (5.0V - 8.5V adjustable in 0.1V increments)
ADDITIONAL FEATURES:
- CRYO-DRIVE™ Technology minimizes the amount of time the ESC’s electrical components spend generating heat, resulting in improved thermal performance during partial throttle operation where the majority of driving occurs
- ESC is housed in a rugged CNC aluminum case and potted in waterproof epoxy to protect the electronics and promote efficient heat transfer
- Premium forged heatsink with elliptical fins for superior air flow and increased heat dissipation
- Oversized factory equipped thermally controlled 50mm cooling fan
- Waterproof design for all weather conditions
- Auxiliary wire functionality for "on-the-fly" adjustments using your transmitter
- Audible alerts for easy diagnosis of common issues such as motor-over-temperature and low-voltage cutoff
- Convenient transmitter programming for six common adjustable settings including cutoff voltage and drag brake
PURCHASE INCLUDES:
- Cobra 5 HV ESC
- 400mm direct connect sensor wire
- Cobra decals
- Castle Link V4 USB Adapter
- Cobra Quick Start Guide
| Resources | ||
|---|---|---|
| Cobra 5 HV Drivers Ed Guide | Cobra 5 HV Quick Start Guide | Cobra 5 HV Product Use Statements |
| Castle Link Settings Overview | Cobra 5 HV Mounting Template | |
| ESC Calibration | Audible Alert Reference Chart | |
| Media Content | |||
|---|---|---|---|
| Do RC | Innovation RC | RCKyota | |
| Exocaged RC | |||
- Waterproof : Yes
- Telemetry Capable : No
- Data Logging : Yes
- Auxiliary Wire : Yes
- Minimum Input Voltage : 3S
- Maximum Input Voltage : 12S
- Sensored Capable : Yes
- Recon G6 Certified ESC : No
- ROAR Certified ESC : No
- CRYO-DRIVE : Yes
- B-Link Compatible : No
| Technical Specs | |
|---|---|
| Controller | |
| Input Voltage Range: | MIN: 6S LiPo (18v) MAX: 12S LiPo (50.4v) |
| BEC Specifications: | 5.5V to 8.5V adjustable in 0.1V increments (20A peak), default 5.5V |
| Application Guidelines: | 1/5th and 1/4th scale vehicles weighing up to 50lbs. |
| Running Modes: | SmartSense™ and Sensorless brushless |
| Reversible: | Yes, but may be disabled for racing. |
| On/Off Switch: | Yes, waterpoof |
| Cooling Fan: | Yes, factory equipped (50mm), temperature controlled |
| Size (L x W x H): | 4.72" x 2.63" x 2.31" (120mm x 67mm x 58.6mm) |
| Weight (with wires): | 16.8oz (479g) |
| Connectors: | 8.0mm female bullets for motor connection. Matching 8mm male bullets required. |
| Items Needed for Operation: | A high current connector designed for high-powered electric systems, rated for 150+ amps, such as Castle CC Bullet 8.0mm, 6.5mm Polarized Castle Connectors, QS8 8mm Anti Spark, or QS10 10mm Anti Spark soldered to the battery leads. |
| Installation: | Mounting holes located on the bottom of aluminum case for installation into vehicle, download template here. |
| Recommended Motors: | 2028-800kv, 2535-520kv, 2535-680kv |
| :Programmability: | Access to tuning options and firmware updates for free with Castle Link V4 USB adapter included with purchase. Now with USB-C connector! (Requires Windows 10 or higher) |
| Operating Environment: |
|
| Product Use Statements: | Click here to view |
For support, frequently asked questions, technical documents, and more, visit our support site.Castle Creations, Inc. warrants this product to be free from manufacturing defects for a period of one year from date of purchase.
This is a high power product with the potential to be very dangerous. Please read the safety information before use. This product may contain chemicals known to the State of California to cause cancer and or birth defects or other reproductive harm.
U.S. Patent # 7400103, 7492122, 7579796, 7740516, 8287328, 8678875, and 8905814 B2 - Other patents pending.
Controller designed, and circuit boards manufactured in Olathe, KS. USA
Controller assembled in Olathe, KS. USA
This is a high power product with the potential to be very dangerous. Please read the safety information before use. This product may contain chemicals known to the State of California to cause cancer and or birth defects or other reproductive harm.
U.S. Patent # 7400103, 7492122, 7579796, 7740516, 8287328, 8678875, and 8905814 B2 - Other patents pending.
Controller designed, and circuit boards manufactured in Olathe, KS. USA
Controller assembled in Olathe, KS. USA
.png)
| Optional Accessories | |
|---|---|
| 010-0079-00 | Castle Link Quick Connect (or Quick Connect Duo) |
| 011-0053-00 | 6.5mm Polarized Connectors-Male/Female Single Pk |
| 011-0068-00 | 6.5mm Polarized Connectors-Male Multi-Pack |
| 011-0069-00 | Polarized Castle Connectors - 6.5mm Female Multi-Pack |
| CC BULLET 6.5MM | 6.5mm Male/Female Connector Set (3ea) |
| CC BULLET 8.0MM | 8.0mm Male/Female Connector Set (3ea) |
| 011-0102-02 | Castle Capacitor Pack, 12S MAX (50V) |
| Service Parts | |
|---|---|
| 011-0027-00 | WIRE, 36", 08 AWG, BLACK |
| 011-0028-00 | WIRE, 36", 08 AWG, RED |
| 011-0029-00 | WIRE, 36", 08 AWG, WHITE |
| 011-0157-00 | RECEIVER HARNESS REPLACEMENT |
| 011-0156-00 | ESC COOLING FAN |
| 011-0178-00 | DIRECT CONNECT SENSOR WIRE 400MM |
