Product #: 011-0148-00

(Based on 2 vote(s))
2 review(s) | Write a review
USD $23.95 /EA
List Price: USD $29.95 /EA
  • Accessories : CC Cap Pack
    • EA
  • Tell a Friend
  • Availability: This item is in stock.

Power Efficiency!

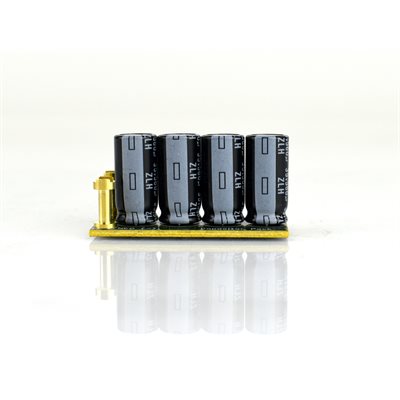

CC CapPack is useful in all brushless motor applications, where it serves to give just that little boost needed to overcome ripples in the battery voltage caused by hard acceleration or long battery wires. Ripple voltage is hard on an ESC - adding the CC CapPack can help reduce the load on the controller's on-board capacitors. This CapPack uses four 560µF, 35V capacitors totaling 2240µF, which increases its ripple reducing capabilities.It can be used with LiPo batteries up to 8 cells. If your batteries are greater than 8s (35V) then you will need the 880µF, 50V CapPack.


CC CapPack is highly recommended for all 500 class and smaller heli applications where Y harnesses and long wires can bleed voltage, and hard collective pulls can strain even the most powerful batteries.

Surface Vehicles:
With their high torque requirements – going from 0 to 100% throttle isn't easy on controllers or batteries - RC cars and trucks put enormous loads on brushless power systems. Use CC CapPacks in high performance applications (IE drag racing and high speed runs) to help your system power through the abuse.

Fixed Wing Aircraft:
Larger electric power systems lead to larger electric powered aircraft, and sometimes the distance between the battery pack and the ESC grows beyond the length of the wires installed on the components. Adding wire also adds inductance, which can increase the ripple voltage in a system. CC CapPack essentially negates the ripple caused by the addition of up to 12 inches of length to the battery wires.

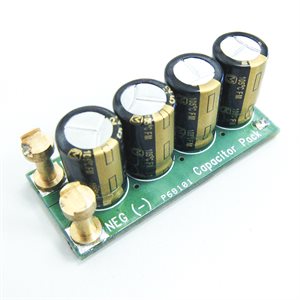

Notrequired for all boat applications. Recommended for high speed and highperformance setups, especially with the Hydra X8s. The Hydra XLX2generally doesn't require a capacitor pack. Users should monitor theripple voltage, per the note below.

Note: All Castle controllers with data logging capabilities can report the ripple voltage they encounter during use. Ripple voltage peaks should always be less than 10% of the total pack voltage; the smaller the ripple voltage the better. If an application exhibits more than 10% ripple voltage under peak loads, the user should consider using higher discharge (C Rating) batteries, shorter wires, higher current connectors, better gearing or a smaller load.

Multiple CapPacks may be used in an application. They should all be installed as close to the ESC as possible.

Cap Pack installation guide

Technical Specs
Size: Length: 1.8" (45.7mm)
Width: 0.78" (19.9mm)
Height: 0.88" (22.4mm)
Weight: N/A
Voltage Range: 5V - 35V
Capacitance: 2240µF total

For support, frequently asked questions, technical documents, and more, visit our support site.

Castle Creations, Inc. warrants this product to be free from manufacturing defects for a period of one year from date of purchase.

This product may contain chemicals known to the State of California to cause cancer and or birth defects or other reproductive harm.

Product designed in Olathe, Kansas USA.

Average rating:
(Based on 2 vote(s))
Rate this product:
Dave From UK
Mr Hall
December 31, 2022
Highly highly recommend these ...why because one day when your lipos get saggy voltages it can cause Ripple voltage and this can explode your ESC
0 of 0 people found this review helpful
Was this review helpful to you? (0) (0)
Steve From United States
CC Cap Pac 8S
January 15, 2021
The only thing I don't understand is why on the package it says compensates for extensions of up to eight inches but when you read the specifications here on Castles site it says it's good for 12inches I guess I missed something somewhere
2 of 2 people found this review helpful
Was this review helpful to you? (2) (0)
