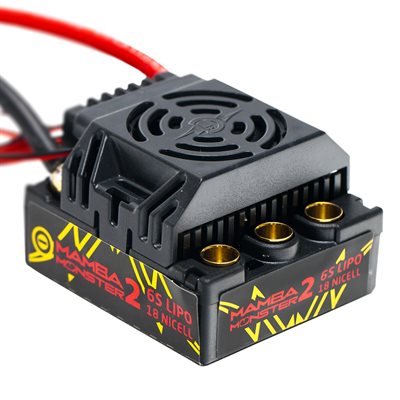

Mamba Monster 2 Extreme 1:8 Scale ESC
Product #: 010-0108-00
UPC code:819326010118
Castle Creations' introduction of the Mamba Monster was a break-through moment for R/C modelers wanting to experience what seemed to be unobtainable. Brute power and sheer stamina have made this our legacy “power up” for popular 1/8th scale buggies, truggies and on road vehicles and 1/10th scale monster trucks.
The Mamba Monster 2 ESC is capable of 2S LiPo to a maximum of 6S LiPo and is waterproof, which means you can run your vehicle through the morning dew, across the soggy snow or just about anywhere else you’d be interested in running a 1/8th scale RC buggy or truck.
ESC Features:
- Adjustable Internal BEC: 5.0 - 7.0, in .1v increments (5A Peak), default 5.5V
- Factory equipped (30mm), fully removable cooling fan
- Waterproof design allows for use in nearly any environment
- LED error codes for common error conditions
- Convenient transmitter programming for nine common adjustable settings
- Full compatible with the Castle Link Programming Suite to modify settings and download software updates available via Windows®-based Castle Link software and USB adapter (sold separately), or the Castle Link iOS App and a B-LINK Bluetooth Adapter. (sold separately)
- Proudly Designed, Assembled and Supported in Olathe, KS USA
- Backed by Castle Creations' 1 YR WARRANTY
Industry Leading Software Functions
The Mamba Monster 2 includes a coupon for a free Castle Link USB device. This allows access to the full programming suite of adjustable settings that tune and tweak your vehicle to your preferences, resulting in an incredible RC driving experience.
Package Includes:
- Mamba Monster 2 Electronic Speed Controller
- Coupon for free Castle Link USB adapter
- Driver's Ed and Quick Start Guides
- Castle decal sheet
| Technical Specs | |
|---|---|
| Input Voltage Range: | MIN: 2S LiPo MAX: 6S LiPo |
| BEC Specifications: | User selectable output between 5 and 7 volts; default 5.5 volts |
| Operating Environment: | Waterproof* design allows for use in nearly any environment |
| Brake: | Proportional |
| Reversible: | Yes, but may be disabled for racing |
| On/Off Switch: | Yes |
| Supported Motors | Sensorless brushless and brushed. Will work on sensored motors, but will operate sensorless. (For sensored operation, please see the Monster X.) |
| Cooling Fan: | Yes, factory equipped, fully removable** (see Product Use Statements below) |
| Size: | Length: 2.19" (56mm) Width: 1.86" (47mm) Height: 1.33" (34mm) |
| Weight (with no battery connector): | 3.93 oz. (111.5 g) |
| Connectors: | 6.5mm female bullets for motor connection. |
| Items Needed for Operation: | Battery Connector required - 6.5mm Castle Connectors are recommended. |
| Product Use Statements: | *Although Monster 2 and Castle brushless motors are waterproof, they are not intended for operation while completely submerged in liquid. They can corrode when exposed to corrosive materials, such as salt water. Always rinse the ESC and motor with clean water after exposure to corrosives or dirt. While the motor and controller may be waterproof, we suggest users confirm that the rest of their vehicle, including the batteries, servos, radio and chassis are also waterproof before exposing them to liquids of any kind. **The cooling fan must be removed prior to driving in wet conditions. It is not waterproof. |
| Application Guidelines: | Intended for up to 6S (25.2 Volt) operation in vehicles weighing less than 15 lbs, with batteries, ready-to-run. Not recommended for use in high speed 1/8th and larger applications (IE Arrma Infraction and Limitless, Traxxas XO-1) |
| Recommended Motors: | Castle 1512 2650Kv: Max Cells: 4S Lipo or 12 NiMH Castle 1515 2200Kv: Max Cells: 6S Lipo or 16 NiMH |
| Max. Recommended Vehicle Weight: | Less than 15 lbs, with batteries, ready-to-run with 2200kv motor; no more than 9 lbs with 2650kv motor. |
| Programmability: | Fully programmable Castle feature set using Castle Link USB adapter (coupon for free Link included) and freely downloadable Castle Link Windows software or the Castle Link iOS App and a B-LINK Bluetooth Adapter. |
| Telemetry Link Capable: | No |
| Tech Notes: | Not all LiPos are created equal, and surge ratings should never be used to determine a pack’s suitability for a brushless application. Use the CONTINUOUS C rating only. Mamba Monster setups frequently hit 100+ amps in peaks. We strongly suggest using 5,000 mAh or larger LiPo cells with a discharge rating of at least 30C (or high quality 25C batteries such as Traxxas® Power Cells®). Our experience suggests using only mild gear ratios with NiMH cells. Do not attempt to use NiMH cells in extreme setups. Mamba Monster 2 features solder posts, so changing battery wire length and direction is simple for an even more custom install. |
| Resources | |
|---|---|
| Monster 2 Driver's Ed Guide | Monster 2 Quick Start Guide |
Castle Creations, Inc. warrants this product to be free from manufacturing defects for a period of one year from date of purchase.
This is a high power product with the potential to be very dangerous. Please read the safety information before use. This product may contain chemicals known to the State of California to cause cancer and or birth defects or other reproductive harm.
U.S. Patent # 7400103, 7492122, 7579796, 7740516, 8287328, 8678875, and 8905814 B2 - Other patents pending.
Controller designed, and circuit boards manufactured, in Olathe, Kansas USA.
Controller assembled in Olathe, KS USA.
| Product Features | |
| Power System Alerts: | The Mamba Monster 2 is programmed to flash LED patterns to alert users to certain conditions such as over temperature or not detecting a valid signal from the receiver. |
| Warranty: | Castle Creations, Inc. warrants this product to be free from manufacturing defects for a period of one year from date of purchase. |
| Programmability: | Fully programmable Castle feature set using Castle Link USB adapter (coupon for free Castle Link adapter included in package) and freely downloadable Castle Link Windows software, or the Castle Link iOS App and a B-LINK Bluetooth Adapter (A small subset of the settings available through Castle Link Windows software can be accessed via manual programming through the transmitter stick). |
| Firmware Upgrade: | Users will receive free access to all firmware updates, including added features sets using the Castle Link USB Programming Kit |
Castle Link Compatible
With the Castle Link USB Programming Kit you can use your Windows™ PC toeasily program your controller. Castle Link includes all code for allCastle Link compatible hobby products in one convenient download. Note:Castle Link software requires a Castle Link USB Adapter and a computerthat is running Windows. Castle Link is compatible with Windows Vista,Windows 7, Windows 8 and Windows 10. Macintosh users may take advantageof software such as Parallels Desktop, VMware Fusion, or Apple's BootCamp along with Windows Vista, Windows 7, Windows 8, or Windows 10 to runthe Castle Link software, provided the Macintosh has an Intelprocessor. Macintosh installation is not supported by Castle Creations.
Additional Castle Link benefits include:
- Access expanded programming and parameters for Castle controllers
- Access to all firmware updates, including added features sets released from Castle Engineering, at no charge.
- Intuitive Demo Mode capability
- Ability to default ESC to factory settings
- Ability to save setup profiles for later use
- Ability to download and view data logs (on applicable controllers)
| Optional Accessories | |
|---|---|
| 011-0135-00 | B-Link Bluetooth Adapter supports iOS and Android App |
| 011-0119-00 | Castle Link V3 USB Programming Kit |
| 010-0004-00 | CCBEC 10A Peak 25V Max BEC |
| 010-0079-00 | Castle Link Quick Connect (or Quick Connect Duo) |
| 011-0053-00 | 6.5mm Polarized Connectors-Male/Female Single Pk |
| 011-0068-00 | 6.5mm Polarized Connectors-Male Multi-Pack |
| 011-0069-00 | Polarized Castle Connectors - 6.5mm Female Multi-Pack |
| CC BULLET 6.5MM | 6.5mm Male/Female Connector Set (3ea) |
| CC BULLET 8.0MM | 8.0mm Male/Female Connector Set (3ea) |
| 010-0153-00 | CC BEC 2.0 15A Max Ouput, 14S (58.8 Volts), Waterproof |
| 011-0148-00 | Castle Capacitor Pack, 8S MAX (35V) |
