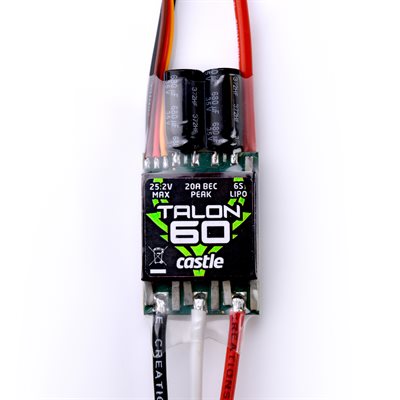

TALON 60 , 6S / 25.2V, 60 AMP ESC WITH 20 AMP BEC
Product #: 010-0163-00
The Talon 60 is well suited for SMALL SCALE OR AEROBATIC HELIS ranging from 360-450 size requiring up to 1400 watts on 6S. This ESC offers Castle’s industry-leading helicopter functions, such as the remarkable direct entry governor mode. Simply type in the desired RPM using a Castle Link USB adapter (redeemable coupon enclosed with purchase) and the free Castle Link Programming Suite running on a Windows ™ PC.
The compact layout and slim profile of the Talon 60 is also perfect for SCALE, SPORT and AEROBATIC PLANES in the .32 - .60 range requiring up to 1400 watts on 6S. Mounting the Talon 60 is simple and stress-free in any setup.
For nearly 20 years Castle engineers have been setting the bar for industry leading software functionality. The Castle Link Programming Suite is the ticket to creating the perfect setup. Gaining access to the host of tuning parameters, including free firmware updates and added feature sets, requires only the Castle Link USB adapter (redeemable coupon enclosed with purchase) and the free Castle Link software on your Windows ™ PC. Users can then fine tune many variables to enhance their level of expertise.
Power System Alerts
The Talon ESCs are programmed to sound a number of tunes and codes using the motor as well as flashing LED patterns to alert users to certain conditions regarding their power system, such as over temperature, excessive load and locked head speed.
Telemetry has the potential not only to improve the safety of our models by monitoring battery voltages, ESC temperature, and other critical parameters, but it also creates other opportunities to get even more fun out of flying because you’ve essentially reduced the risks of “unknown” inevitable crashes. Think of the benefits to be had from alarms that will sound to warn you when there's interference about or if your receiver battery is running unexpectedly low. Requires purchase of Castle Telemetry Link for S.BUS2 (Item # 010-0152-00) and compatible Futaba Radio or Castle Telemetry Link for X-BUS (Item# 010-0148-00) and a compatible Spektrum Radio.
The TALON 60 is PROUDLY DESIGNED, MANUFACTURED AND SUPPORTED IN OLATHE, KANSAS, and is backed by Castle Creations’ 1-year warranty and unparalleled ‘make-it-right’ customer support.
|Input Voltage Range:||MIN: 2S LiPo
MAX: 6S LiPo
|Max Continuous Amperage at full throttle:||60 amps*|
|BEC Voltage:||User selectable choice of 6 or 8 volt output (default is 6V).
|BEC Output:||20 amp peak** , 8 amp continuous
|Size:||Width: 1.19" (30.2mm)
Length: 2.56" (65mm)
Depth: 0.41" (10.6mm)
|Weight :||2.05 oz. (57 g) with wires
1.09 oz. (g) without wires
|Items Needed for Operation:||Battery and Motor connectors sold separately.
|Tools needed for installation:||Soldering iron for attaching High Current bullet connectors to ESC, motor, and battery. (Deans Ultra Plugs, EC5 or Castle Polarized 4mm or 6.5mm)
|Application Guidelines:||SMALL SCALE OR AEROBATIC HELIS ranging from 360-450 size requiring up to 1400 watts on 6S and SCALE, SPORT and AEROBATIC PLANES in the .32 -. 60 range requiring up to 1400 watts on 6S.
|Programmability:||Fully programmable Castle feature set using Castle Link USB adapter (coupon for free Castle Link adapter included in package) and freely downloadable Castle Link Windows software. (A small subset of the settings available through Castle Link Windows software can be accessed via manual programming through the transmitter stick.)|
|Telemetry Link Capable:||Yes|
|Talon User Guide
||Castle Support Page
*RC HOBBY APPLICATION RATING: 60 amps for the duration of a single
10,000 mAh battery pack with the ESC in contact with a 5 mph airflow of
25C (77F) or cooler air. Controller temperature must never exceed 100C
(212F). Exceeding current or temperature ratings may damage components
and may shorten the life of the ESC. Always verify system current draw
at full-throttle. Decrease load or increase airflow to decrease the
ESC’s operating temperature.
**Peak indicates amperage sustainable for 0.5 seconds - long enough for most servos' current draw transients. Always confirm servo servo current draw before the first flight of the model.
Castle Creations, Inc. warrants this product to be free from manufacturing defects for a period of one year from date of purchase.
This is a high power product with the potential to be very dangerous. Please read the safety information before use. This product may contain chemicals known to the State of California to cause cancer and or birth defects or other reproductive harm.
U.S. Patent # 7400103, 7492122, 7579796, 7740516, 8287328, 8678875, and 8905814 B2 - Other patents pending.
Controller designed, circuit boards manufactured, and controller assembled in Olathe, Kansas USA.
- Telemetry Capable : Yes
- ESC Current Rating : 60
- Data Logging : No
- Auxiliary Wire : No
- Internal BEC : Yes
- Minimum Input Voltage : 2S
- Maximum Input Voltage : 6S
