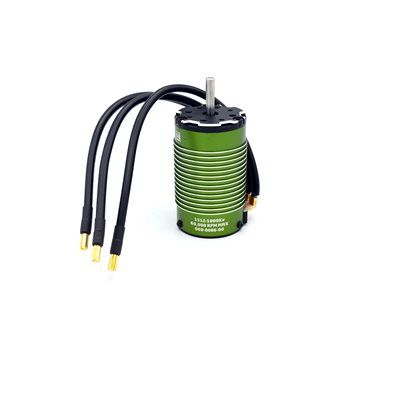

Castle 1512 Sensored Motor - 1800Kv ( MOD 4mm Bullets / 12AWG Wire)

Sensored Motors

Product #: 060-0086-00

USD $169.95 /EA
List Price: USD $207.95 /EA
  • Minimum Input Voltage : 3S
  • Maximum Input Voltage : 4S
  • Sensored Capable : Yes
  • Recon G6 Certified Motor : No
  • ROAR Certified Motor : Yes
    • EA
  • Tell a Friend
  • Availability: This item is in stock.
MOTOR  APPLICATION MAX VEHICLE WEIGHT
1512-1800Kv    Idea for 1:8 scale buggies up to 4s operaton.
 Up to 9 lbs. ready-to-run.

You might be familiar with the brute 1:8 scale version of the 1512-1800Kv (10AWG wire and 6.5mm bullets) that has overpowered buggies, truggies, on-road vehicles for years. Now we are offering our eBuggy version (paired with Mamba X 1:10 scale ESC, click here for details),  tailored with pre-soldered 4mm bullet connections and 12AWG wire!

MOTOR FEATURES:

  • Our IMPROVED 4-POLE 12-SLOT design boasts exceptional EFFICIENCY and produces LESS HEAT.
  • Oversized gold-plated solder tabs for LESS RESISTANCE and easy soldering.
  • Our OPTIMIZED design eliminates the need for mechanical timing adjustments. Our sensor alignment method delivers uniform timing and torque in both directions, automatically.
  • REBUILDABLE design allows users to replace front end bell/bearing assembly or rotor/shaft assembly.
  • ROAR standard sensor port and labeled connections.
  • Proudly designed and supported in Kansas, USA.
  • Backed by Castle Creations 1-YEAR WARRANTY.

COMPONENTS OF THE HIGHEST QUALITY:

  • High strength 180°C grade neodymium sintered magnets
  • 12 AWG high strand count wire with silicone insulation
  • 6061-T6 aluminum heatsink can
  • High quality, temperature-stabilized sensors
  • High-purity, high-temperature copper windings
  • High RPM NMB oversized bearings
  • Hardened stainless steel shaft
  • Stacked stator with high quality 0.2mm steel laminations
  • Kevlar wrapped rotor
RESOURCES
 BLOG:  Sensored VS Sensorless Maintaining motors in wet environments  Sensored Motor Quick Start
 Castle Support Home  BLOG: The Care and Feeding of your Castle Motor Castle Surface Product Selector
Technical Specs
Input Voltage Range: 3s-4s LiPo
Kv: 1800
Max. RPM: 60,000
Size: Length: 67.7mm
Diameter: 40mm (41.4mm with fins)
Weight (w/wires): 385g (13.6oz) ; 336g without wires
Shaft Size: Length: 20mm
Diameter: 5mm
Mounting Hole Specifications: M3 and M4 @ 25mm
Cooling Fan: Optional, coming soon!
Connectors: 4mm male Castle Bullet Connectors, includes 210mm length sensor wire.
Items Needed for Operation: Compatible Electronic Speed Control
Application Guidelines: Ideal for 1:8 scale buggies weighing up to 9 lbs.
Recommended ESC(s):  Mamba X, Cobra 10
Max. Recommended Vehicle Weight: 9 lbs
Tech Notes:

Running modes: SMARTSENSE™, Sensored, Sensorless with Castle sensored capable ESCs.

Water Resistant Design: The sensor board is coated with silicone conformal coating to protect the sensors from moisture. The sensor connections are not water resistant; water can cause signal loss which could result in loss of sensored capabilities. Castle recommended applying dielectric grease to the outside of the sensor wire connections after installation of the wire. Routine maintenance is recommended after running in wet conditions. Please refer to this document for running and maintaining motors in wet environments.

Resources
Sensored Motor Quick Start

Castle Creations, Inc. warrants this product to be free from manufacturing defects for a period of one year from date of purchase.

This is a high power product with the potential to be very dangerous. Please read the safety information before use. This product may contain chemicals known to the State of California to cause cancer and or birth defects or other reproductive harm.

Motor designed in Olathe, Kansas USA.
Motor made in China.

THE DESIGN: KEEPING IT COOL

  • Our IMPROVED 4-POLE 12-SLOT design boasts exceptional EFFICIENCY and produces LESS HEAT.
  • QUIETSENSE™ technology shields the sensors from magnetic field noise generated from the motor coils and keeps your motor and ESC in sync at all times. Use of a Flux Shield™ in conjunction with secondary Sense Magnets delivers even HIGHER PRECISION and MORE EFFICIENT startups.
  • Our OPTIMIZED design eliminates the need for mechanical timing adjustments. Our sensor alignment method delivers uniform timing and torque in both directions, automatically.
  • REBUILDABLE design allows users to replace front end bell/bearing assembly or rotor/shaft assembly.
  • ROAR standard sensor port and labeled connections.
  • Updated modern and sleek design; looks as cool as it performs.

Immense care is taken by our US design team during every step of the development process. While using the highest quality components is important, design is equally important. Our experienced, in-house engineering team, located in Olathe, Kansas, has spent countless hours simulating and developing the most efficient design. Development includes magnetic simulations, custom winding techniques, and rigorous, real-world testing of the final product.

You will reap the benefits of longer run times on one battery and a cooler running motor that can be pushed harder.

We take OVERPOWERING seriously.

INTEGRATED SOPHISTICATION

Castle engineers always add a little something extra in their designs that takes your performance to the next level. We have not skimped here. Many customers have utilized our industry leading software functionality that Castle Link* offers. When paired with a Castle Creations sensor supported ESC, like the MAMBA X or MAMBA MONSTER X, you can unlock advanced tuning capabilities that Castle Link provides specifically for sensored motors.

SMARTSENSE™ uses the motors sensors to start the motor to provide smooth starts, excellent torque, and low-speed drivability. Once the motor is turning, it seamlessly transitions to Castle’s ULTRA- EFFICIENT sensorless mode. When running, a motor must transition between different load points and a different timing advance is required for optimal efficiency at all load points. Using mechanical timing adjustments alone, you can only target one driving condition, such as higher start power or higher top end speed. This sacrifices performance and efficiency during the other driving phases. Electronic timing in SMARTSENSE™ will advance timing automatically for peak performance during all driving conditions. This allows users to combine the best of both worlds in an unrivaled HYBRID between smooth sensored startups and high-efficiency sensorless drive.

With a Castle sensored ESC and sensored motor you will have the ULTIMATE POWER PLANT for your vehicle. Users will experience PRECISE throttle control, BUTTERY SMOOTH starts, PEAK PERFORMANCE and EFFICIENCY throughout the full throttle range. You will feel the POWER and LONGER RUN TIMES that a WORLD-CLASS motor produces.

It’s not magic… it’s SMARTSENSE™.
