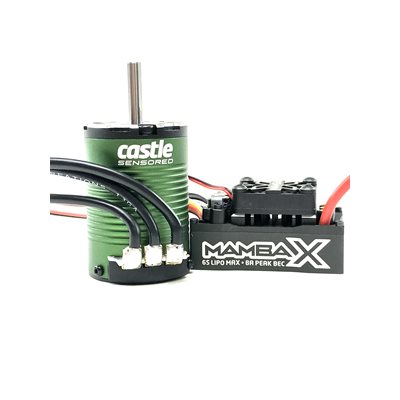

MAMBA X SCT, SENSORED, 25.2V WP ESC AND 1410-3800KV 5MM COMBO

Mamba X

Product #: 010-0161-01

(Based on 1 vote(s))
1 review(s) | Write a review
USD $254.95 /EA
List Price: USD $310.95 /EA
  • Waterproof : Yes
  • Telemetry Capable : Yes
  • Data Logging : Yes
  • Auxiliary Wire : Yes
  • Minimum Input Voltage : 2S
  • Maximum Input Voltage : 3S
  • Sensored Capable : Yes
  • Recon G6 Certified ESC : Yes
  • ROAR Certified ESC : Yes
  • CRYO-DRIVE : No
  • B-Link Compatible : Yes
    • EA
  • Tell a Friend
  • Availability: This item is in stock.

 SCT COMBO  APPLICATION
1410-3800kv 5mm shaft
Perfect for short course trucks running on 2s LiPo and weighing up to 6.5 lbs;
it can be run on a 3s LiPo with very conservative gearing and keep a close eye
on temperatures. It is a cooling running torque animal for lighter 1/10th scale
2WD stadium trucks and buggies running up to a 3s LiPo.

VERSATILITY, RELIABILITY AND PERFORMANCE.


We at Castle wanted to address three main concepts while designing a new ESC for the modern-day RC enthusiast; VERSATILITY, RELIABILITY, and PERFORMANCE. These are the pillars of the Mamba X design and the driving forces behind the feature-packed controller.

The Mamba X is extremely versatile, capable of powering a wide variety of applications ranging from 2S to 6S and vehicles ranging from 1/10th scale to 1/8th scale*. Whether you are racing at the track with your 2wd buggy, bashing through mud puddles in your SCT or monster truck, or navigating a hardcore crawling excursion, this controller raises the bar to a whole new level. Pair with a Castle 4-POLE 12-SLOT SENSORED MOTOR to provide precise throttle control and buttery smooth starts!

ESCs have a tough life - landing extreme jumps, experiencing accidental collisions, and splashing through the occasional puddle. As R/C enthusiast themselves, Castle engineers understand this and designed the Mamba X to endure these situations and power through them. It is housed in a rugged CNC-machined aluminum case and then potted in waterproof epoxy. This not only protects the electronics but ensures any heat generated in the controller can easily be dissipated through the case.

The Mamba X integrates a powerful 8A adjustable BEC into a high-performance speed control that can push the most extreme 1/10th scale setups and 1/8th race buggies. Smart-Sense™ allows you to take advantage of smooth, cog-free, and predictable sensored starts and improved throttle response keeps you ahead of the competition.

The Mamba X is proudly designed and manufactured in Olathe, Kansas and is backed by Castle Creations’ 1-year warranty and unparalleled ‘make-it-right’ customer support.  Call us, email us, or walk in our front door – we’re here to help.

FEATURES:

  • Wide 2s-6s input voltage range for powering a wide variety of applications
  • Sensored, Sensorless and SmartSense™ Running Modes
  • Brushless and brushed motor operation
  • Powerful Integrated 8A Peak Adjustable BEC (5.25V-8.0V)
  • Data logging capability to capture and record performance data from your vehicle
  • Auxiliary wire functionality for "on-the-fly" adjustments using your transmitter
  • Compatible with S.BUS2 Telemetry Link and Futaba T4PX and T7PX transmitters
  • Convenient transmitter programming for six common adjustable settings including cutoff voltage and drag brake
  • Dial in ESC settings, update ESC firmware and view data logs with Castle Link USB programming kit (coupon for USB adapter included with purchase, Castle Link software located here)
  • Optional smartphone-based programming, firmware updates and data log viewing with the B-LINK™ Bluetooth Adapter (sold separately) and Castle Link software for iOS or Android (free download)
  • ESC is housed in a rugged CNC aluminum case and potted in waterproof epoxy to protect the electronics and promote efficient heat transfer
  • Waterproof design for all weather conditions
  • Factory equipped thermally controlled (and removable) 30mm cooling fan
  • 12 AWG high strand count silicone coated copper power wires
  • Integrated Capacitors and 4mm Bullet Connectors add durability in extreme conditions
  • Audible Alerts and LED Alerts for easy diagnoses of common issues such as motor-over-temperature and low-voltage cutoff
  • ROAR and RECON 6 Certified ESC


MAMBA X ESC COMES WITH:

  • Mamba X ESC with Sensor Harness
  • Coupon for free Castle Link USB
  • Mamba Decals
  • Driver's Ed Guide/ Quick Start Guide



*In 1/8th scale setups, the Mamba X is intended to be used for off-road racing in buggies weighing up to 9 lbs (including batteries and ready-to-run). In these 1/8th scale racing setups, the Mamba X should be run at 4S Lipo (16.8V) max and is recommended to be paired with the Castle 1512-1800Kv (P/N: 060-0062-00) or Castle 1515-2200Kv (P/N: 060-0063-00) motor, with appropriate gearing only.


Resources
Mamba X Driver's Ed Guide
Mamba X Quick Start Guide
1:10th Scale Gearing Chart
SMARTSENSE™ Technology
Audible Alert Reference Chart
Maintaining Motors in Wet Conditions
RC Driver Review Mamba X
Making of Mamba X Video
Sensored Motor Quick Start
ESC Technical Specs
Input Voltage Range: MIN: 2S LiPo
MAX: 6S LiPo (25.2V)
(3s maximum with included 1410 - 3800kv motor)
BEC Specifications: Adjustable: 5.5V, 6.0V, 7.5V. or 8.0V (8A Peak), default 5.5V
Operating Environment: Waterproof* design allows for use in nearly any environment.
Brake: Proportional
Reversible: Yes, but may be disabled for racing.
On/Off Switch: Yes
Cooling Fan: Yes, factory equipped (30mm), fully removable** (see Product Use Statements below)
Size: Length: 2.14" (54.4mm)
Width: 1.39" (35.2mm)
Height: 1.18" (30.0mm)
Weight (with wires): 3.56 oz. (101g)
Connectors: 4.0mm female bullets for motor connection.
Items Needed for Operation: Battery Connector required, Castle 6.5mm Polarized Connectors, Castle 4.0mm Polarized Connectors, Traxxas® Power Connectors, or Deans® Ultra Plugs are recommended.
Product Use Statements:

*Although Mamba X is waterproof, it is not intended for operation while completely submerged in liquid. T Always rinse the ESC and motor with clean water after exposure to corrosives or dirt. While the motor and controller may be waterproof, we suggest users confirm that the rest of their vehicle, including the batteries, servos, radio and chassis are also waterproof before exposing them to liquids of any kind.

**The cooling fan must be removed prior to driving in wet conditions. It is not waterproof.

Max. Recommended Vehicle Weight: Up to 6.5lbs. with included 1410-3800Kv (5mm shaft) sensored motor.
Programmability: Fully programmable Castle feature set using Castle Link USB adapter (coupon for free link included in package) and freely downloadable Castle Link Windows software, or the Castle Link iOS App and a B-Link Bluetooth Adapter (sold separately).
Telemetry Link Capable: Yes
Tech Notes:
  1. Mamba X setups frequently hit 100+ amps in peaks and not all LiPos are created equal. Surge ratings should never be used to determine a pack's suitability for a brushless application. Recommended battery capacity for 1:8th scale vehicles is 5000mAh. We recommend using 30C continuous discharge or higher LiPo batteries (or high quality 25C batteries such as Traxxas® Power Cell).
  2. Our experience suggests using only mild gear ratios with NiMH cells. Do not attempt to use NiMH cells in extreme setups.
  3. Applying voltages higher than 25.2V will cause irreparable damage to ESC.
  4. We recommend a high-current connector designed for high-powered electric systems, rated for 70+ amps. Invest in connector sets made for high-powered electric systems such as our Castle 6.5mm Polarized Connectors, Castle 4.0mm Polarized Connectors, Traxxas® Power Connectors, or Deans® Ultra Plugs.
Motor Technical Specs
Input Voltage Range: 2-3S LiPo
Kv: 3800
Max. RPM: 100,000
Size: Length: 52.7mm
Diameter: 36mm
Weight (w/wires): 237g / 8.4oz
Shaft Size: Length: 21mm
Diameter: 0.197" (5mm)
Mounting Hole Specifications: M3 @ 25mm
Cooling Fan: Optional, coming soon!
Connectors: 4mm male Castle Bullet Connectors
Application Guidelines: Ideal for 1:10 scale 2WD and 4WD SCT up to 6.5lb (2S is ideal, 3s with very conservative gearing) as well as 1:10 scale buggies and stadium trucks up to 4lbs (2S-3S).
Recommended ESC(s): Combo includes Mamba X ESC.
Max. Recommended Vehicle Weight: See application guidelines
Tech Notes:

Running modes: SMARTSENSE™, Sensored only

Water Resistant Design: The sensor board is coated with silicone conformal coating to protect the sensors from moisture. The sensor connections are not water resistant; water can cause signal loss which could result in loss of sensored capabilities. Castle recommended applying dielectric grease to the outside of the sensor wire connections after installation of the wire. Routine maintenance is recommended after running in wet conditions. Please refer to this document for running and maintaining motors in wet environments.


For support, frequently asked questions, technical documents, and more, visit our support site.


Castle Creations, Inc. warrants this product to be free frommanufacturing defects for a period of one year from date of purchase.

This is a high power product with the potential to be very dangerous.Please read the safety information before use. This product may containchemicals known to the State of California to cause cancer and or birthdefects or other reproductive harm.

U.S. Patent # 7400103, 7492122, 7579796, 7740516, 8287328, 8678875, and 8905814 B2 - Other patents pending.

Controller designed, and circuit boards manufactured in Olathe, KS. USA
Controller assembled in Olathe, KS. USA

Motor designed in Olathe, Kansas USA.
Motor made in China.




Product Features

Enabled by default, the Mamba X captures and records performance data from your vehicle. This allows you to view a detailed turn-by-turn record of what your ESC actually experienced during the run. You will be able to record real-time data such as motor RPM, battery current and voltage, ESC and motor temperature, throttle input, and more. Download and analyze the collected data via Castle Link and make adjustments to maximize both performance and battery life. You can use the Quick Connect Duo (sold separately) to allow you to access both wires into a single Castle Link connection.

The Mamba X allows “on-the-fly” adjustments to be made through the AUX wire once enabled in Castle Link. Once you have selected an AUX wire function, that setting can then be tuned from your transmitter while driving. Torque control, max throttle, max brake and drag brake adjustments are a sampling of the available modes. This real-time tuning allows you to quickly and easily fine-tune your system. Click here for additional information.


For 25 years Castle engineers have been setting the bar for industry leading software functionality. The Castle Link Programming Suite is your ticket to creating the perfect setup. To gain access to the host of tuning parameters, simply redeem the coupon for the Castle Link adapter included with your Mamba X purchase and download the simple to install software from our website and you are ready to personalize your controller's settings. Users will receive free access to all firmware updates, including added features sets using the Castle Link USB Programming Kit or the Castle Link App and a B-Link Bluetooth Adapter. Click here for software versions available for Mamba X.  Don’t forget to use the “check for updates” feature in Castle Link to download new software as it becomes available. New features are yours at no cost, a perk for choosing Castle. Click here for settings overview for the Mamba X ESC.

You can now WIRELESSLY PROGRAM settings with the free Castle-Link app available on the Apple App store or Google Play for Android devices and the Castle B-Link™ Bluetooth™ Adapter (sold separately). It is compact and lightweight installed in your vehicle, for anytime programming!

When paired with a Castle 4-POLE 12-SLOT SENSORED MOTOR SMARTSENSE™ software, enabled by default in the Castle Link Programming Suite, will use the motor’s sensors to provide smooth starts, excellent torque, and low-speed drivability.  Once the motor is turning, it seamlessly transitions to Castle’s ULTRA-EFFICIENT sensorless mode with ELECTRONIC TIMING. Smooth sensored startups and high-efficiency sensorless running makes the Mamba X system produce more power and less heat. QUIETSENSE™ is an innovative advancement in the design of sensored motors to deliver the highest precision and most efficient startup.

Mamba X also features updated Audible Alerts that will notify you of possible issues with calibrations and error conditions to help diagnose problems in the field.
Click here to see complete list.

Mamba X is telemetry ready, which means owners of Futaba T4PX or 7PX Transmitters will be able to purchase the Castle Creations Telemetry Link for S.BUS2. Real-time data such as ESC temperature, voltages, and RPM can be monitored to ensure performance advantages and spare you the “unknown” parameters that all R/C enthusiasts experience at some point. Telemetry data provides another level of protection and can increase performance.

The Mamba X is proudly designed and manufactured in Olathe, Kansas and is backed by Castle Creations’ 1-year warranty and unparalleled "make-it-right" customer support. Call us, email us, or walk in our front door – we’re here to help. Click here for additional information about our Tier 1 and Tier II warranty.



        Optional Accessories
        011-0135-00
        B-Link Bluetooth Adapter supports iOS and Android App
        010-0152-00
        Telemetry Link S.BUS
        011-0146-00
        Direct Connect Sensor Wire
        010-0079-00
        Castle Link Quick Connect (or Quick Connect Duo)
        010-0063-00
        Quick Field Programmer, Surface Version
        011-0065-0 Castle 4mm polarized connectors
        CC Bullet 4mm Castle 4mm Bullet Connectors
        011-0148-00
        CC Cap Pack
         011-0154-00  Servo Direct Connect



        Service Parts
        011-0108-00  Mamba X-Series Sensor Harness
         011-0106-00  Receiver Harness Replacement
         011-0137-00  ESC Cooling Fan Replacement
         011-0142-00  Mamba X Wire Harness Retainer
