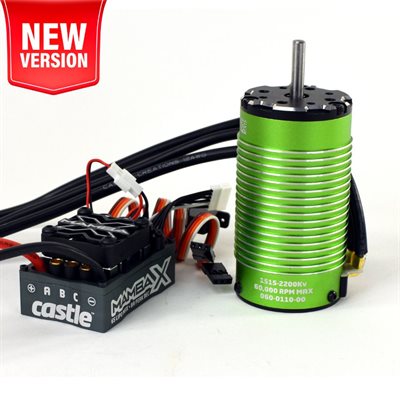

MAMBA X ESC w / 1515-2200KV V2 SENSORED 1:8 E-BUGGY EDITION

Mamba X

Product #: 010-0155-16

USD $284.95 /EA
List Price: USD $347.95 /EA
  • Waterproof : Yes
  • Telemetry Capable : Yes
  • Data Logging : Yes
  • Auxiliary Wire : Yes
  • Minimum Input Voltage : 2S
  • Maximum Input Voltage : 4S
  • Sensored Capable : Yes
  • Recon G6 Certified ESC : Yes
  • ROAR Certified ESC : Yes
  • CRYO-DRIVE : No
  • B-Link Compatible : Yes
    • EA
  • Tell a Friend
  • Availability: This item is in stock.
EBUGGY COMBO APPLICATION
1515-2200V2
This setup is recommended for 3s or 4s use in a vehicle weighing less than ~9lbs and geared for no more than ~45 MPH.
If you have a heavier vehicle, looking for more speed or just want to beat the ever loving snot out of your vehicle we
would recommend picking up the Mamba Monster X combo (P/N 010-0145-06) or the Cobra 8 combo (P/N 010-0172-03



New 1515-2200Kv V2 motor now included!  Our commitment to excellence drives us to refine the user experience, optimize performance, and ensure that every aspect of our products are meticulously designed to provide the utmost satisfaction. Let's face it, even the best products have room for refinement, which is why we are excited to introduce the newly redesigned 1515-2200Kv V2, a new spin on one of the most popular motors we've ever produced! The transformation has included several improvements, most contributed by new stator and rotor assembly upgrades that, in turn, allow for even HIGHER EFFICIENCY, REDUCED TEMPERATURES, AND SMOOTHER START-UPS!

FEATURES:

  • Wide 2s-4s input voltage range for powering a wide variety of applications
  • Sensored, Sensorless and SmartSense™ Running Modes
  • Brushless and brushed motor operation
  • Powerful Integrated 8A Peak Adjustable BEC (5.25V-8.0V)
  • Data logging capability to capture and record performance data from your vehicle
  • Auxiliary wire functionality for "on-the-fly" adjustments using your transmitter
  • Compatible with S.BUS2 Telemetry Link and Futaba T4PX and T7PX transmitters
  • Convenient transmitter programming for six common adjustable settings including cutoff voltage and drag brake
  • Dial in ESC settings, update ESC firmware and view data logs with Castle Link USB programming kit (coupon for USB adapter included with purchase, Castle Link software located here)
  • Optional smartphone-based programming, firmware updates and data log viewing with the B-LINK™ Bluetooth Adapter (sold separately) and Castle Link software for iOS or Android (free download)
  • ESC is housed in a rugged CNC aluminum case and potted in waterproof epoxy to protect the electronics and promote efficient heat transfer
  • Waterproof design for all weather conditions
  • Factory equipped thermally controlled (and removable) 30mm cooling fan
  • 12 AWG high strand count silicone coated copper power wires
  • Integrated Capacitors and 4mm Bullet Connectors add durability in extreme conditions
  • Audible Alerts and LED Alerts for easy diagnoses of common issues such as motor-over-temperature and low-voltage cutoff

 1515-2200Kv V2 FEATURES:

  • Input Voltage range: 2s-6s LiPo
  •  Redesigned rotor and stator assemblies.
  •  Reduced magnetic cogging, producing less residual drag brake.
  •  Increased efficiency, resulting in lower temperatures and longer run times.
  •  Smoother start-up, reducing cogging or stuttering when starting from a stop.
  •  Rebuildable design allows replacement of front end bell/bearing assembly or rotor/shaft assembly.
  • High-Strength Kevlar Wrap and 180C Grade Neodymium Sintered Magnets
  • Oversized NMB Bearings and High-Temperature, High-Purity Copper Windings
  • Castle 10 AWG, High-Strand-Count Silicone-Insulated Wire with 4.0mm Bullet Connectors
  • High-Performance 0.2mm Steel Lamination Stacked Stator
  • Oversized, low-resistance, gold-plated solder tabs
  • Sensor board with High Quality Temperature-Stabilized Sensors
  • T6 Aluminum CNC Machines Front/Rear End bell
  • Backed by Castle Creations' 1-YEAR WARRANTY





MAMBA X ESC WITH 1515-2200KV COMES WITH:

  • Mamba X ESC with Sensor Harness and 1515-2200kv V2 sensored motor
  • Coupon for free Castle Link USB
  • Mamba Decals
  • Driver's Ed Guide/ Quick Start Guide

Resources
Mamba X Driver's Ed Guide
Mamba X Quick Start Guide
1:10th Scale Gearing Chart
SMARTSENSE™ Technology
Audible Alert Reference Chart
Maintaining Motors in Wet Conditions
RC Driver Review Mamba X
Making of Mamba X Video
Sensored Motor Quick Start
Technical Specs
Controller:
Input Voltage Range: MIN: 2S LiPo
MAX: 6S LiPo (25.2V) (Max 4s with included motor)
BEC Specifications: Adjustable: 5.5V, 6.0V, 7.5V. or 8.0V (8A Peak), default 5.5V
Operating Environment: Waterproof* design allows for use in nearly any environment.
Brake: Proportional
Reversible: Yes, but may be disabled for racing.
On/Off Switch: Yes
Cooling Fan: Yes, factory equipped (30mm), fully removable** (see Product Use Statements below)
Size: Length: 2.14" (54.4mm)
Width: 1.39" (35.2mm)
Height: 1.18" (30.0mm)
Weight (with wires): 3.56 oz. (101g)
Connectors: 4.0mm female bullets for motor connection.
Items Needed for Operation: Battery Connector required, Castle 6.5mm Polarized Connectors, Castle 4.0mm Polarized Connectors, Traxxas® Power Connectors, or Deans® Ultra Plugs are recommended.
Product Use Statements:

*Although Mamba X is waterproof, it is not intended for operation while completely submerged in liquid. Always rinse the ESC and motor with clean water after exposure to corrosives or dirt. While the motor and controller may be waterproof, we suggest users confirm that the rest of their vehicle, including the batteries, servos, radio and chassis are also waterproof before exposing them to liquids of any kind.

**The cooling fan must be removed prior to driving in wet conditions. It is not waterproof.

Application Guidelines: Intended for up to 4s (25.2 Volt) operation in vehicles weighing less than 9bs/4kg with 1515 - 2200kv motor.  SW VS. 1.82 ROAR APPROVED
Max. Recommended Vehicle Weight: Less than 9bs/4kg, with batteries, ready-to-run.
Programmability: Fully programmable Castle feature set using Castle Link USB adapter (coupon for free link included in package) and freely downloadable Castle Link Windows software or the Castle Link iOS App and a B-LINK Bluetooth Adapter (sold separately).
Telemetry Link Capable: Yes, with purchase of the Castle Telemetry Link for S.BUS2 and a compatible transmitter.
Tech Notes:
  1. Mamba X setups frequently hit 100+ amps in peaks and not all LiPos are created equal. Surge ratings should never be used to determine a pack's suitability for a brushless application. Recommended battery capacity for 1:10th and 1:8th scale vehicles is 5000mAh. We recommend using 30C continuous discharge or higher LiPo batteries (or high quality 25C batteries such as Traxxas® Power Cell).
  2. Our experience suggests using only mild gear ratios with NiMH cells. Do not attempt to use NiMH cells in extreme setups.
  3. Applying voltages higher than 25.2V will cause irreparable damage to ESC.
  4. We recommend a high-current connector designed for high-powered electric systems, rated for 70+ amps. Invest in connector sets made for high-powered electric systems such as our Castle 6.5mm Polarized Connectors, Castle 4.0mm Polarized Connectors, Traxxas® Power Connectors, or Deans® Ultra Plugs
Motor
Input Voltage Range: 3-6S LiPo; 4s maximum with Mamba X ESC
Kv: 2200
Max. RPM: 60,000
Size: Length: 75.4mm
Diameter: 40mm (41.4mm with fins)
Weight (w/wires): 429g / 15.1oz
Shaft Size: Length: 20mm
Diameter: 5mm
Mounting Hole Specifications: M3 and M4 @ 25mm
Cooling Fan: 011-0139-00
Connectors: 4mm male Castle Bullet Connectors on 12AWG wire, includes 210mm length sensor wire.
Application Guidelines: Ideal for 1:8 scale off-road and on-road vehicles as well as 1:10 scale 4WD SCT up to 9lbs on 4s LiPo.
Max. Recommended Vehicle Weight: See application guidelines
Tech Notes:

Running Modes: SMARTSENSE™, Sensored (with Sensored capable ESC), Sensorless

Water Resistant Design: The sensor board is coated with silicone conformal coatingo protect the sensors from moisture. The sensor connections are not water resistant; water can cause signal loss which could result in loss of sensored capabilities. Castle recommended applying dielectric grease to the outside of the sensor wire connections after installation of the wire. Routine maintenance is recommended after running in wet conditions. Please refer to this document for running and maintaining motors in wet environments.



For support, frequently asked questions, technical documents, and more, visit our support site.

Castle Creations, Inc. warrants this product to be free frommanufacturing defects for a period of one year from date of purchase.

This is a high power product with the potential to be very dangerous.Please read the safety information before use. This product may containchemicals known to the State of California to cause cancer and or birthdefects or other reproductive harm.

U.S. Patent # 7400103, 7492122, 7579796, 7740516, 8287328, 8678875, and 8905814 B2 - Other patents pending.

Controller designed, and circuit boards manufactured in Olathe, KS. USA
Controller assembled in Olathe, KS. USA

Motor designed in Olathe, Kansas USA.
Motor made in China.


Product Features

Enabled by default, the Mamba X captures and records performance data from your vehicle. This allows you to view a detailed turn-by-turn record of what your ESC actually experienced during the run. You will be able to record real-time data such as motor RPM, battery current and voltage, ESC and motor temperature, throttle input, and more. Download and analyze the collected data via Castle Link and make adjustments to maximize both performance and battery life. You can use the Quick Connect Duo (sold separately) to allow you to access both wires into a single Castle Link connection.

The Mamba X allows “on-the-fly” adjustments to be made through the AUX wire once enabled in Castle Link. Once you have selected an AUX wire function, that setting can then be tuned from your transmitter while driving. Torque control, max throttle, max brake and drag brake adjustments are a sampling of the available modes. This real-time tuning allows you to quickly and easily fine-tune your system. Click here for additional information.


For 25 years Castle engineers have been setting the bar for industry leading software functionality. The Castle Link Programming Suite is your ticket to creating the perfect setup. To gain access to the host of tuning parameters, simply redeem the coupon for the Castle Link adapter included with your Mamba X purchase and download the simple to install software from our website and you are ready to personalize your controller's settings. Users will receive free access to all firmware updates, including added features sets using the Castle Link USB Programming Kit or the Castle Link App and a B-Link Bluetooth Adapter. Click here for software versions available for Mamba X.  Don’t forget to use the “check for updates” feature in Castle Link to download new software as it becomes available. New features are yours at no cost, a perk for choosing Castle. Click here for settings overview for the Mamba X ESC.

You can now WIRELESSLY PROGRAM settings with the free Castle-Link app available on the Apple App store or Google Play for Android devices and the Castle B-Link™ Bluetooth™ Adapter (sold separately). It is compact and lightweight installed in your vehicle, for anytime programming!

When paired with a Castle 4-POLE 12-SLOT SENSORED MOTOR SMARTSENSE™ software, enabled by default in the Castle Link Programming Suite, will use the motor’s sensors to provide smooth starts, excellent torque, and low-speed drivability.  Once the motor is turning, it seamlessly transitions to Castle’s ULTRA-EFFICIENT sensorless mode with ELECTRONIC TIMING. Smooth sensored startups and high-efficiency sensorless running makes the Mamba X system produce more power and less heat. QUIETSENSE™ is an innovative advancement in the design of sensored motors to deliver the highest precision and most efficient startup.

Mamba X also features updated Audible Alerts that will notify you of possible issues with calibrations and error conditions to help diagnose problems in the field.
Click here to see complete list.

Mamba X is telemetry ready, which means owners of Futaba T4PX or 7PX Transmitters will be able to purchase the Castle Creations Telemetry Link for S.BUS2. Real-time data such as ESC temperature, voltages, and RPM can be monitored to ensure performance advantages and spare you the “unknown” parameters that all R/C enthusiasts experience at some point. Telemetry data provides another level of protection and can increase performance.

The Mamba X is proudly designed and manufactured in Olathe, Kansas and is backed by Castle Creations’ 1-year warranty and unparalleled "make-it-right" customer support. Call us, email us, or walk in our front door – we’re here to help. Click here for additional information about our Tier 1 and Tier II warranty.




        Optional Accessories
        011-0135-00
        B-Link Bluetooth Adapter supports iOS and Android App
        010-0152-00
        Telemetry Link S.BUS
        011-0146-00
        Direct Connect Sensor Wire
        010-0079-00
        Castle Link Quick Connect (or Quick Connect Duo)
        010-0063-00
        Quick Field Programmer, Surface Version
        011-0065-0 Castle 4mm polarized connectors
        CC Bullet 4mm Castle 4mm Bullet Connectors
        011-0148-00
        CC Cap Pack
         011-0154-00  Servo Direct Connect


        Service Parts
        011-0108-00  Mamba X-Series Sensor Harness
         011-0106-00  Receiver Harness Replacement
         011-0137-00  ESC Cooling Fan Replacement
         011-0142-00  Mamba X Wire Harness Retainer

        Average rating:
        Rate this product:

        You may also be interested in

        Polarized Castle Connectors - 4.0mm Male / Female Set
        • USD $6.50 /EA
        • List Price USD $7.95 /EA
        • EA
        • Availability: This item is in stock.
        CC BLOWER FAN SHROUD FOR 15 SERIES MOTORS V2
        • USD $13.95 /EA
        • List Price USD $17.95 /EA
        • EA
        • Availability: This item is in stock.

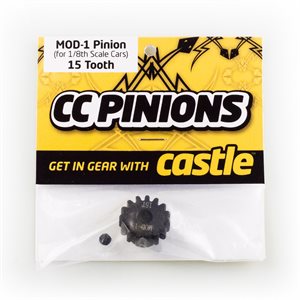

        CC PINION 15 TOOTH - MOD 1
