40MM ESC Cooling Fan

Product #: 011-0100-00

UPC code:819326010910

Run Cooler!

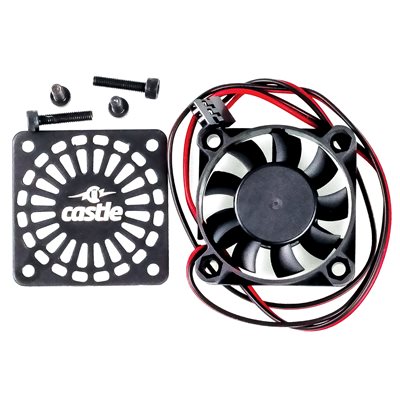

Our 40mm fan assembly is fitted to a wide range of Castle ESCs including Phoenix Edge 160 HVf, Mamba XL2, Mamba XL X, and Talon HV 120. Includes the fan (w/wire), mounting plate, and four (4) mounting screws.

  • USD $17.25 /EA
  • List Price: USD $21.95 /EA
Bookmark and Share
Code Availability Quantity
011-0100-00 This item is in stock. EA
Technical Specs
Input voltage: 4.8 - 7.4 volts
Maximum RPM: 10,000 RPM
Waterproof: No, remove before exposing ESC to moisture.

Instructions for Talon 120 HV Assembly

  1. Remove the 40mm fan, fan cover, and screws from the package.
  2. Place the fan onto the top of the ESC heatsink with the open side of the fan facing away from the ESC.
  3. Make sure that the fan wire exits the same direction as the ESC receiver cable.
  4. Align the fan cover over the fan with the Castle word logo facing away from the ESC.
  5. Align the holes for the fan cover and the fan with the threaded holes on the ESC heatsink.
  6. Place a screw in any one of the four mounting holes and use a 2.5mm hex wrench to tighten to the heatsink.
  7. Repeat step 6 for the remaining screws.

Instructions for Phoenix Edge 160 HVf, and Mamba XL2 Assembly

  1. Remove the 40mm fan, fan cover, and screws from the package.
  2. With a P1 Phillips-head screwdriver, remove the 4 assembly screws that hold the plastic housing together.
  3. Carefully remove the top plastic piece ONLY. DO NOT remove the top heatsink, thermally conductive adhesive holds the heatsink tightly against the ESC. If this bond becomes loose or gets damaged the ESC could potentially fail.
  4. With the back of the screwdriver, press the fan cover and the fan out of the plastic housing. This may take some force, be careful to not damage the plastic housing.
  5. Place the new fan cover into the plastic housing with the Castle word logo facing away from the ESC.
  6. Place the new 40mm fan into the plastic housing with the open side of the fan up against the fan cover. Make sure the fan power wires are exiting out of the molded wire relief in the plastic housing.
  7. Once the fan and fan cover are in place, align the plastic housing back onto the ESC and place the same screws into the housing that were previously removed. The four M3 socket head screws that came with the 40mm fan kit will not be used for this ESC.

NOTE: This fan does NOT work on the regular Phoenix Edge 160HV.

Warranty Note: Use in an RC car or truck potentially exposes the fan to dirt and other environmental objects that are considered abuse to the fan. For this reason we keep the replacement cost of fans low, but must limit the warranty on a fan to 60 days from the date of purchase.

This product may contain chemicals known to the State of California to cause cancer and or birth defects or other reproductive harm.

Product designed in Olathe, Kansas USA.
Product made in China.
