RECEIVER HARNESS REPLACEMENT, COPPERHEAD 10

Product #: 011-0159-00

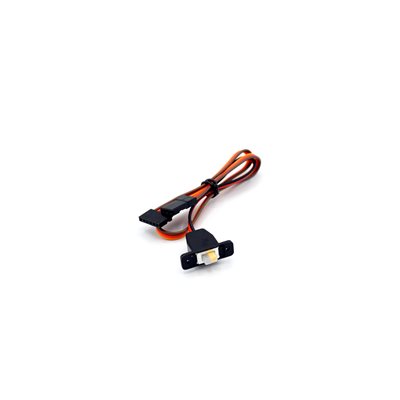

Replacement Receiver Harness for the Copperhead 10 ESC.

Features:

  • Correct factory-specified connectors
  • Waterproof switch
  • Factory-specified wire gauge
  • USD $5.95 /EA
  • List Price: USD $7.95 /EA
Bookmark and Share
Code Availability Quantity
011-0159-00 This item is in stock. EA

To Remove the Receiver Harness:

  1. Place slight outward pressure, with thumb, on the small tab located on outside edge of ESC case.
  2. Grip the harness close to the connector at the ESC and pull gently, straight up from ESC, to remove the harness from the ESC pin header.

    Note: Do not yank or forcefully pull harness out of ESC. May cause damage to ESC or harness.

To Replace the Receiver Harness:

  1. Place slight outward pressure, with thumb, on the small tab located on outside edge of ESC case.
  2. Following the wiring diagram provided on the side of the ESC's case, place the 5 wire connector onto the ESC pin header.

    Note: Misalignment of the harness will prevent the ESC from operating. Be sure that the brown receiver wire is plugged in next to the positive (+) red battery wire.

  3. Gently press on the connector to fully engage with the ESC pin header.
  4. Reconnect the ESC to the receiver.

Castle Creations, Inc. warrants this product to be free from manufacturing defects for a period of one year from date of purchase.

This product may contain chemicals known to the State of California to cause cancer and or birth defects or other reproductive harm.

Product designed in Olathe, Kansas USA.
Product made in China.
