Polarized Castle Connectors - 6.5mm Male Multi-Pack
Product #: 011-0068-00
UPC code:819326010514
USD $14.95 /EA
List Price: USD $18.30 /EA
List Price: USD $18.30 /EA
- Accessories : Wiring and Connectors
- Availability: This item is in stock.
Green Means GO!
Polarized Castle Connectors are high quality, high current polarized connectors specifically made for the demands of electric RC. Perfect for use with batteries, ESCs, charger leads, parallel and series harnesses, high current amp/watt meters, and anything else that needs extremely high current.

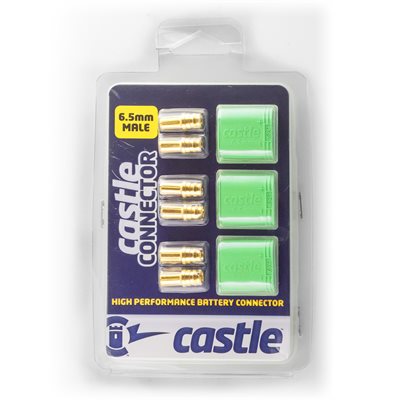

This package includes 6 male connectors, and 3 housings.
Note: Male designation of connector is determined by the metal bullet connector, not the plastic housing.
Features:
- Side ridges on the housing to make them easier to grip
- Marked for “ESC” for easy reference
| Technical Specs | |
|---|---|
| Connector Size: | 6.5mm |
| Dimensions: | Combined: 0.91" (23mm) x 1.19" (30.22mm) x 0.52" (13.3mm) Female: 0.91" (23mm) x 0.89" (22.5mm) x 0.52" (13.3mm) Male: 0.91" (23mm) x 0.94" (23.9mm) x 0.52" (13.3mm) |
| Weight: | 6M/3H Combined: 1.05 oz. (30g) |
| Max wire gauge: | 8 AWG |
| Max amps: | 200A continuous |
For support, frequently asked questions, technical documents, and more, visit our support site.
