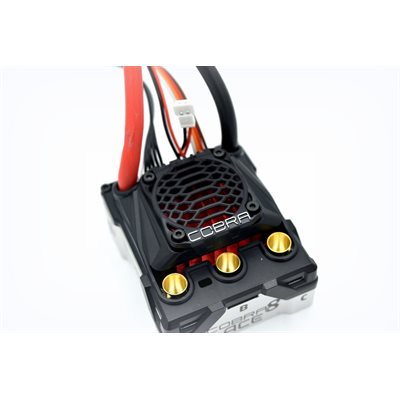

Ghost RC - Cobra 8 ACE - No Prep Drag ESC

Product #: 020-0270-00

Castle is thrilled to partner with Ghost RC in releasing the Cobra 8 ACE. The Cobra 8 ACE is built on our Cobra 8 ESC but with enhanced drag racing features and beefed up to handle the extreme conditions of drag racing. It is engineered with cutting-edge technology tailored specifically for 1/10th Drag Racing vehicles.

NOTE: Castle Creations does not provide technical support or service on Ghost RC products. Please contact Ghost RC for any questions regarding their products.
Castle does not offer trade-ins for this product as it is not a Castle product.

FEATURES:

  • 32-Bit Processing power for smoother motor control and improved response time.
  • Enhanced Data Logging includes:
    • Double the maximum sample frequency of older generations.
    • 8x increased logging time of older generations.
    • Data point for ESC electrical motor timing.
    • Data point for acceleration via onboard accelerometer.
    • Looping feature prevents interruptions in data log recording.
    • Ability to download specific sessions.
  • Highly adjustable internal BEC. (5.0V - 8.0V adjustable in 0.1V increments)
  • Access to tuning options and firmware updates for free with Castle Link V4 USB programmer included with purchase. Now with USB-C connector! (Requires Windows 10 or higher)
  • Mounting holes located in bottom of aluminum case for installation into vehicle.
  • Additional Ghost RC specific features include:
    • Upgraded 8 Gauge battery wires
    • Enhanced Start Power
      • Increased tune-ability on how much power the ESC gives the motor to get off the line and out of the prep
      • Start Power Ramp Time - Allows users to adjust how quickly the start power ramps in on launch
      • Start Power Hold Time - Sets how long it holds the start power before moving into boost timing or programmed throttle mode
    • RPM Limiter
      • Allows users to set a maximum motor RPM, reducing rotor failures if driveline components fail.
    • Boost Timing
      • Increases motor timing up to 120° total timing (sensors required)
      • RPM Based or Throttle Percentage based modes
    • Turbo Timing
      • Additional timing that activates after Boost Timing, up to 120° total.
      • Adjustable activation point based on throttle percentage
      • Tunable rate of acceleration based on degrees per second.
    • Programmed Throttle Curve
      • Allows users to set a throttle curve that automatically engages at launch
      • Time based activation that engages at an adjustable throttle input

NOTE: Castle Creations does not provide technical support or service on Ghost RC products. Please contact Ghost RC for any questions regarding their products.

An external capacitor pack must be used with the Ghost RC Cobra 8 ACE. Failure to use an external capacitor pack will affect ESC performance and can lead to damage.

WARNING: This product is for advanced users in drag racing applications. Due to the aggressive and abusive nature of drag racing, this product is sold with no warranty.

MORE FEATURES:

  • Input Voltage Range 6.0v - 16.8v (2s - 4s LiPo)
  • SmartSense™, Sensored Only and Brushed Motor Operation Modes
  • Powerful Integrated 8A Peak Adjustable BEC (5.0V - 8.0V)
  • CRYO-DRIVE™ Technology minimizes the amount of time the ESC’s electrical components spend generating heat, resulting in improved thermal performance during partial throttle operation where the majority of driving occurs
  • ESC is housed in a rugged CNC aluminum case and potted in waterproof epoxy to  protect the electronics and promote efficient heat transfer
  • Premium forged heatsink with elliptical fins for superior air flow and increased heat dissipation
  • Waterproof design for all weather conditions
  • Data logging capability to capture and record performance data from your vehicle
  • Auxiliary wire functionality for "on-the-fly" adjustments using your transmitter
  • Audible alerts for easy diagnosis of common issues such as motor-over-temperature and low-voltage cutoff
  • Convenient transmitter programming for six common adjustable settings including cutoff voltage and drag brake
  • Includes Castle Link V4 USB adapter for Windows.
  • Ghost RC Cobra 8 ACE is proudly designed and manufactured in Olathe, KS USA

GHOST RC COBRA 8 ACE COMES WITH:

  • Ghost RC Cobra 8 ACE ESC
  • Castle Link V4 USB Adapter
  • 300mm Direct Connect Sensor Wire

RESOURCES
Cobra 8 ACE User Guide
Cobra 8 ACE Quick Start
 Motor Quick Start
ESC Calibration  Audible Alert Reference Chart
ESC Mounting template

  • USD $259.99 /EA
  • List Price: USD $329.95 /EA
Code Availability Quantity
020-0270-00 This item is in stock. EA
Technical Specs
Controller
Input Voltage Range: MIN: 2s LiPo,  MAX:  4s LiPo (16.8 V)
BEC Specifications: 5.0V - 8.0V adjustable in 0.1V increments; (8A Peak); default 5.5V
Operating Environment: Waterproof* design allows for use in nearly any environment.
 Running Modes:  SmartSense Brushless, Sensored Only, Brushed
Brake: Proportional
Reversible: Yes, but may be disabled for racing.
On/Off Switch: Yes, waterproof
Cooling Fan: Optional
Size: 60mm x 52mm x 43mm (2.36" x 2.04" x 1.69")
Weight (with no battery connector): 5.84 oz. (165.6 grams)
Connectors: 6.5mm female bullets for motor connection, matching 6.5mm male bullets required
Items Needed for Operation: A high current connector designed for high-powered electric systems, rated for 120+ amps, such as Castle CC Bullet 6.5mm, CC Bullet 8.0mm, or 6.5mm Polarized Castle Connectors, soldered to the battery leads.
Product Use Statements:

Castle Creations does not provide technical support or service on Ghost RC products. Please contact Ghost RC for any questions regarding their products.

An external capacitor pack must be used with the Ghost RC Cobra 8 ACE. Failure to use an external capacitor pack will affect ESC performance and can lead to damage.

WARNING: This product is for advanced users in drag racing applications. Due to the aggressive and abusive nature of drag racing, this product is sold with no warranty.

Application Guidelines:  Intended for 1/10th scale No Prep Drag Racing.
Programmability:
Fully programmable Castle feature set using the included FREE Castle Link V4 USB adapter and freely downloadable NEW Castle Link Windows™ software. (Windows 10+ required)
Castle Link Mobile App (B-Link):
In development
Telemetry Link Capable:
Not supported

This is a high power product with the potential to be very dangerous. Please read the safety information before use.

U.S. Patent # 7400103, 7492122, 7579796, 7740516, 8287328, 8678875, and 8905814 B2 - Other patents pending.

Controller designed, and circuit boards manufactured in Olathe, KS. USA
Controller assembled in Olathe, KS. USA
