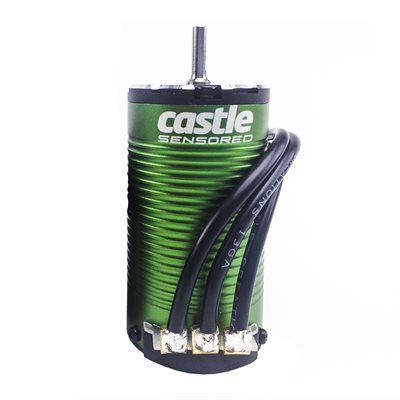

Castle 1415 1Y Sensored Motor - 2400Kv with 5mm Shaft
Press and move to zoom
Mouse over image to zoom

Castle 1415 1Y Sensored Motor - 2400Kv with 5mm Shaft

Sensored Motors

Product #: 060-0067-00

(Based on 6 vote(s))
3 review(s) | Write a review
USD $119.95 /EA
List Price: USD $146.95 /EA
  • Minimum Input Voltage : 3S
  • Maximum Input Voltage : 4S
  • Sensored Capable : Yes
  • Recon G6 Certified Motor : No
  • ROAR Certified Motor : No
    • EA
  • Tell a Friend
  • Availability: This item is in stock.

You asked. We listened.

For more than a decade Castle has been providing award winning brushless sensorless motors to R/C enthusiasts worldwide. In response to overwhelming requests by our customers, we have brought technological advancements together that will deliver unprecedented performance in our new SENSORED motor line.

The 1415 2400kv w/5mm shaft is the perfect motor for 1/10th scale 2WD and 4WD short course trucks running on 3s or 4s LiPo. Huge amounts of torque, low temperatures, and incredible speed make this the perfect motor for hardcore bashing and driveshaft snapping power. Paired with the Mamba X, Cobra 10, or Copperhead 10 ESCs, you will have the perfect pairing for your Short Course Truck or Rock Racer weighing up to 6.5 lbs on 3s or 4s LiPo.

Technical Specs
Input Voltage Range: 3S-4S LiPo
Kv: 2400
Max. RPM: 75,000
Size: Length: 69.5mm
Diameter: 36mm
Weight (w/wires): 319g / 11.3oz
Shaft Size: Length: 21mm
Diameter: 0.197" (5mm)
Mounting Hole Specifications: M3 @ 25mm
Cooling Fan: Optional, coming soon!
Connectors: 4mm male Castle Bullet Connectors
Items Needed for Operation: Compatible Electronic Speed Control (ESC)
Application Guidelines: Ideal for 1:10 scale 2WD and 4WD short course trucks up to 6.5lbs (3S-4S).
Recommended ESC(s): Mamba X, Cobra 10, Copperhead 10
Max. Recommended Vehicle Weight: See application guidelines
Tech Notes:

Running modes: SMARTSENSE™, Sensored, Sensorless with Castle sensored capable ESCs.

Water Resistant Design: The sensor board is coated with silicone conformal coating to protect the sensors from moisture. The sensor connections are not water resistant; water can cause signal loss which could result in loss of sensored capabilities. Castle recommended applying dielectric grease to the outside of the sensor wire connections after installation of the wire. Routine maintenance is recommended after running in wet conditions. Please refer to this document for running and maintaining motors in wet environments.



Resources
Sensored Motor Quick Start

Castle Creations, Inc. warrants this product to be free from manufacturing defects for a period of one year from date of purchase.

This is a high power product with the potential to be very dangerous. Please read the safety information before use. This product may contain chemicals known to the State of California to cause cancer and or birth defects or other reproductive harm.

Motor designed in Olathe, Kansas USA.
Motor made in China.



WHY SENSORED?

Drivers in all applications demand clean starts when coming off the line. Crawler fans require high-precision low speed control and torque for climbing, racers need precision and predictability, and dragsters don’t have a millisecond to spare. To achieve all of these performance demands and more, we have integrated rotor position sensor technology with our improved high power and high efficiency motor design. Through the use of our sensors, the position of the rotor is always known by the ESC. This eliminates the possibility of encountering cogging or inconsistency during startup. Users will experience PRECISE throttle control and BUTTERY SMOOTH starts plus the RAW POWER and LONGER RUN TIMES that our highly efficient motors produce.

WHAT MAKES AN EXCEPTIONAL MOTOR?

When tasked with designing a sensored motor our engineers started with the question,

“What makes a motor great?”

  • Efficiency
    • You can push it harder (gear it up)
    • You can run it longer (with the same battery)
    • It stays cool under extreme loads
  • Reliability
    • Ability to withstand the harsh demands of any RC application
    • Long-life, high-quality components
    • Proven manufacturing techniques

EFFICIENCY IS KEY

The higher the efficiency of a motor the more power it can produce without overheating, which allows you to safely run higher gear ratios. The higher the efficiency of a motor, the less power it takes to produce the same output power, which allows you to run longer on a single charge. The higher the efficiency of the motor, the less energy it turns into heat; keeping it cool under extreme loads. Efficiency equals performance.

RELIABILITY CAN’T BE IGNORED

Without a robust and reliable design, efficiency will only go so far. RC enthusiasts love pushing their equipment to the edge. The Castle engineers know this and spared no expense when developing a design that could hold up to the harsh conditions that the RC community will throw at it. Oversized NMB bearings and vibration dampening system ensure the longest bearing life possible. High-strength, high-temperature grade neodymium sintered magnets combined with a high-strength Kevlar wrap ensures the integrity of the rotor is not compromised during harsh running conditions. Our proprietary winding techniques allow us to produce a stator assembly that is the lowest possible resistance, resulting in a cooler running motor. A cooler motor has a longer lifetime. Construction of our motor required careful component selection; each verified through internal testing to ensure the highest efficiency possible. In the end, the result is a motor with unmatched quality, performance, and reliability. We wouldn’t put our name on anything less.

THE DESIGN: KEEPING IT COOL

  • Our IMPROVED 4-POLE 12-SLOT design boasts exceptional EFFICIENCY and produces LESS HEAT.
  • QUIETSENSE™ technology shields the sensors from magnetic field noise generated from the motor coils and keeps your motor and ESC in sync at all times. Use of a Flux Shield™ in conjunction with secondary Sense Magnets delivers even HIGHER PRECISION and MORE EFFICIENT startups.
  • Our OPTIMIZED design eliminates the need for mechanical timing adjustments. Our sensor alignment method delivers uniform timing and torque in both directions, automatically.
  • REBUILDABLE design allows users to replace front end bell/bearing assembly or rotor/shaft assembly.
  • ROAR standard sensor port and labeled connections.
  • Updated modern and sleek design; looks as cool as it performs.

Immense care is taken by our US design team during every step of the development process. While using the highest quality components is important, design is equally important. Our experienced, in-house engineering team, located in Olathe, Kansas, has spent countless hours simulating and developing the most efficient design. Development includes magnetic simulations, custom winding techniques, and rigorous, real-world testing of the final product.

You will reap the benefits of longer run times on one battery and a cooler running motor that can be pushed harder.

We take OVERPOWERING seriously.

INTEGRATED SOPHISTICATION

Castle engineers always add a little something extra in their designs that takes your performance to the next level. We have not skimped here. Many customers have utilized our industry leading software functionality that Castle Link* offers. When paired with a Castle Creations sensor supported ESC, like the MAMBA MICRO X, MAMBA MAX PRO or MAMBA MONSTER X, you can unlock advanced tuning capabilities that Castle Link provides specifically for sensored motors.

SMARTSENSE™ uses the motors sensors to start the motor to provide smooth starts, excellent torque, and low-speed drivability. Once the motor is turning, it seamlessly transitions to Castle’s ULTRA- EFFICIENT sensorless mode. When running, a motor must transition between different load points and a different timing advance is required for optimal efficiency at all load points. Using mechanical timing adjustments alone, you can only target one driving condition, such as higher start power or higher top end speed. This sacrifices performance and efficiency during the other driving phases. Electronic timing in SMARTSENSE™ will advance timing automatically for peak performance during all driving conditions. This allows users to combine the best of both worlds in an unrivaled HYBRID between smooth sensored startups and high-efficiency sensorless drive.

With a Castle sensored ESC and sensored motor you will have the ULTIMATE POWER PLANT for your vehicle. Users will experience PRECISE throttle control, BUTTERY SMOOTH starts, PEAK PERFORMANCE and EFFICIENCY throughout the full throttle range. You will feel the POWER and LONGER RUN TIMES that a WORLD-CLASS motor produces.

It’s not magic… it’s SMARTSENSE™.

Average rating:
(Based on 6 vote(s))
Rate this product:
Joel From United States
This is a serious motor. And super flexible.
November 23, 2023
I have a couple 1415s in various cars from a custom 2WD Slash to an Axial Exo Terra, to a wildly over powered Losi Mini 8ight Truggy. It can be smooth as silk sensored at low revs and can truly scream at high revs. Castle says it’s for “2-3S LiPo applications” here but my 1415 says “5S maximum” on the can itself. But if you do the math, 75,000rpm divided by 2400kv divided by 4.2volts you will realize it’s actually rated for 7S (!). You might void your warranty but, in theory, the motor should be able to handle it as long as the vehicle isn’t too terribly heavy. With more RPM and a little less torque than a 1512/1515 the 1415 still makes tons of horsepower, especially with higher voltage. My Slash runs it on 5S or 6S and it is the wheelie king. More smooth and controlled than a 15XX motor it also will fit in many cars a 15XX simply won’t. 36mm cases have been around since the early brushed motor days but this one is approximately 20mm longer than a traditional 540 motor. My only wish is Castle would make a higher KV version as well. If you are looking for a motor that can go slow and smooth all day without overheating or one that can blast with the big boys at sky high RPM this flexible motor can do it all. There is a reason Traxxas used these in their gone but not forgotten 1/8 scale Funny Car Dragsters from a few years ago. So whether you are running 2S or 6S and want lots of power in a comparatively small space you owe it to yourself to try a 1415.
0 of 0 people found this review helpful
Was this review helpful to you? (0) (0)
David Cee From United States
This motor is 1/10 scale perfection
July 16, 2023
This is my go to 1/10 scale motor. I have it in a ryft, MT10, trx6, and vendetta. It does awesome in everything. Tons of torque and awesome low speed control for crawling.
1 of 1 people found this review helpful
Was this review helpful to you? (1) (0)
Cwm From Us
Perfect for 1/10 bashing
September 1, 2021
This thing out lived 4 esc. Hours if run time and u finally retired it when the shaft got so warn the berrings wouldn't sit right. I'll be getting another soon
1 of 1 people found this review helpful
Was this review helpful to you? (1) (0)
