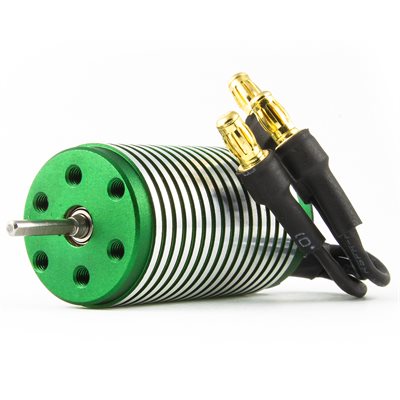

SENSORLESS MOTOR: INRUNNER, 0808-4100KV MOTOR
$59.95
Skip to product information
SENSORLESS MOTOR: INRUNNER, 0808-4100KV MOTOR
060-0037-00
$59.95
Mini Size, Massive Power!
Our 4 pole 0808 series motors are intended for on-road and off-road applications running up to 3S LiPo and weighing in at up to 2.25lbs. 0808 motors are available with in combos with both of our race-proven Micro ESCs. For 2WD and lighter 4WD vehicles (<1.5lbs) we recommend the Sidewinder Micro 2, and for heavier 4WD vehicles (<2.25lbs) the Mamba Micro X is recommended. The 0808 series motors delivers tremendous performance for an extremely affordable price.
Not intended for 1/16th scale or 1/14th scale vehicles.
|
Minimum Input Voltage: 2s |
| Maximum Input Voltage: 3s |
| Sensored Capable: No |
| Recon G6 Certified Motor: No |
| ROAR Certified Motor: No |
NOTE: 0808 MOTORS NOT RECOMMENDED FOR ARRMA GROM series. Due to the motor mounting system, it creates excessive flexing which can easily break the 2mm output shaft. Use of the 0808 motor in any Arrma GROM vehicle will not be covered under warranty.
Technical Specs
| Input Voltage Range: | 2s - 3s LiPo, 4-9 cell NiMH |
| Kv: | 4100 |
| Max RPM: | 100,000 |
| Size: | Length: 1.5" (38mm) Diameter: 0.79" (20mm) |
| Weight (w/wires): |
1.8 oz. / 50g |
| Shaft Size: |
Length: 0.511" (13mm) Diameter: 0.08" (2mm) |
| Mounting Hole Specs: | 2.5mm holes @ 1/2”, 14MM, 5/8” |
| Connectors: | 3.5mm male bullets |
| Items Needed for Operation: | Compatible Electronic Speed Control (ESC). We recommend the Mamba Micro X (legacy) or Sidewinder Micro 2 (legacy). |
| Application Guidelines: | Up to 3S LiPo and weighing in at up to 2.25lbs. Not intended for 1/16th scale or 1/14th scale vehicles (IE Losi Mini-8ight/T, Traxxas Mini E-Revo) |
| Max Recommended Vehicle Weight: | 2.25lbs |
| Tech Tips: | Monitor motor temperatures closely; overheating a motor will cause permanent damage to the magnets. Never exceed 180° F on the the motor or ESC. |
Resources
Castle Creations warrants this product to be free from manufacturing defects for a period of one year from date of purchase.
This product may contain chemicals known to the State of California to cause cancer and or birth defects or other reproductive harm.
Product designed in Olathe, Kansas USA.
