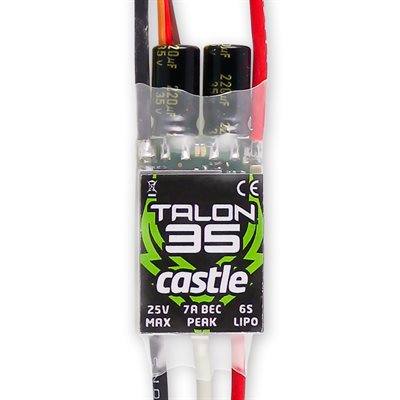

TALON 35 AMP ESC, 6S / 25V WITH 7 AMP BEC
Product #: 010-0122-00
UPC code:819326010545
Little Package, Big BEC!
Talon 35 can take on the most extreme maneuvers while keeping it's cool, and is intended for use in 450 Heli setups running up to 6S, or .10 to .20 fixed wing applications pulling up to 35 amps. It boasts a 7 amp peak/5 amp continuous BEC, keeping even the most draining servos at ease. Talon 35 also offers Castle's industry-leading helicopter functions, not to mention easy programming using the Castle Link USB adapter (coupon included). The compact layout and thin profile make mounting Talon 35 simple and stress-free in any setup.
| Technical Specs | |
|---|---|
| Input Voltage Range: | MIN: 2S LiPo MAX: 6S LiPo |
| Max Continuous Amperage at full throttle: | 35 amps* |
| Max Voltage: | N/A |
| BEC Voltage: | 5.5 volts |
| BEC Output: | 7 amp peak** 5 amp continuous (always check servo draw prior to first flight) |
| Size: | Width: 0.88" (22.4mm) Length: 1.93" (49mm) Depth: 0.33" (8.4mm) |
| Weight: | 0.98 oz. (27.8g) with wires 0.42 oz (12g) without wires |
| Connectors: | N/A |
| Items Needed for Operation: |
|
| Product Use Statements: | N/A |
| Application Guidelines: | N/A |
| Programmability: | Fully programmable Castle feature set using Castle Link USB adapter (coupon for free Castle Link adapter included in package) and freely downloadable Castle Link Windows software. |
| Telemetry Link Capable: | Yes, except Battery Current |
| Tech Notes: | N/A |
| Resources | |
|---|---|
| Talon User Guide | Talon 35 Tech Drawing |
*RC HOBBY APPLICATION RATING: 35 amps for the duration of a single 4,000 mAh battery pack with the ESC in contact with a 5 mph airflow of 25C (77F) or cooler air. Controller temperature must never exceed 100C (212F). Exceeding current or temperature ratings may damage components and may shorten the life of the ESC. Always verify system current draw at full-throttle. Decrease load or increase airflow to decrease the ESC’s operating temperature.
**Peak indicates amperage sustainable for 0.5 seconds - long enough for most servos’ current draw transients. Always confirm servo current draw before the first flight of the model.
This is a high power product with the potential to be very dangerous. Please read the safety information before use. This product may contain chemicals known to the State of California to cause cancer and or birth defects or other reproductive harm.
U.S. Patent # 7400103, 7492122, 7579796, 7740516, 8287328, 8678875, and 8905814 B2 - Other patents pending.
Controller designed and circuit boards manufactured, in Olathe, Kansas USA.
Controller assembled in Olathe, Kansas USA.
.png)
|
Product Features |
|
|
Power System Alerts: |
The Talon ESCs are programmed to sound a number of tunes and codes using the motor as well as flashing LED patterns to alert users to certain conditions regarding their power system, such as over temperature, excessive load and locked head speed. |
|
Telemetry Capable: |

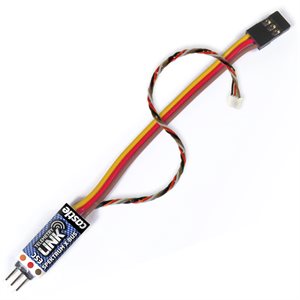

Telemetry has the potential not only to improve the safety of our models by monitoring battery voltages, ESC temperature, and other critical parameters, but it also creates other opportunities to get even more fun out of flying because you’ve essentially reduced the risks of “unknown” inevitable crashes. Think of the benefits to be had from alarms that will sound to warn you when there's interference about or if your receiver battery is running unexpectedly low. Requires purchase of Castle Telemetry Link for S.BUS2 (Item # 010-0152-00) and compatible Futaba Radio or Castle Telemetry Link for X-BUS (Item# 010-0148-00) and a compatible Spektrum Radio. |
|
Warranty: |
Castle Creations, Inc. warrants this product to be free from manufacturing defects for a period of one year from date of purchase. |
|
Programmability: |
Fully programmable Castle feature set using Castle Link USB adapter (coupon for free Castle Link adapter included in package) and freely downloadable Castle Link Windows software or the Castle Link iOS App and a B-Link Bluetooth Adapter . ( A small subset of the settings available through Castle Link Windows software can be accessed via manual programming through the transmitter stick). |
|
Firmware Upgrade: |
Users will receive free access to all firmware updates, including added features sets using the Castle Link USB Programming Kit |
Castle Link Compatible

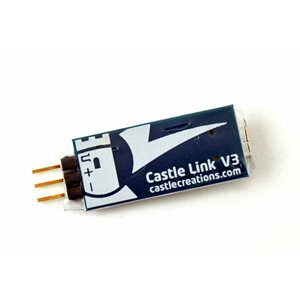

With the Castle Link USB Programming Kit you can use your Windows™ PC to easily program your controller. Castle Link includes all code for all Castle Link compatible hobby products in one convenient download. Note: Castle Link software requires a Castle Link USB Adapter and a computer that is running Windows. Castle Link is compatible with Windows Vista, Windows 7, Windows 8 and Windows 10. Macintosh users may take advantage of software such as Parallels Desktop, VMware Fusion, or Apple's Boot Camp along with Windows Vista, Windows 7, Windows 8, or Windows 10 to run the Castle Link software, provided the Macintosh has an Intel processor. Macintosh installation is not supported by Castle Creations.
Additional Castle Link benefits include:
- Access expanded programming and parameters for Castle controllers (see overview below)
- Access to all firmware updates, including added features sets released from Castle Engineering, at no charge.
- Intuitive Demo Mode capability
- Ability to default ESC to factory settings
- Ability to save setup profiles for later use
- Ability to download and view data logs (on applicable controllers)
| Talon/Talon HV Castle Link Settings Overview | ||||
| Throttle Vehicle Type: | Airplane | Helicopter | Control Line | External Governor |
| Throttle type: | Auto-Calibrating Throttle |
Fixed-Endpoints | Governor Mode:
|
Fixed-Endpoints |
| Fixed-Endpoints | Governor Mode:
|
|||
| Brake: |
|
N/A |
|
N/A |
| Cutoffs: |
|
|
|
|
| Motor: |
|
|
|
|
| Other: |
|
|
|
|
