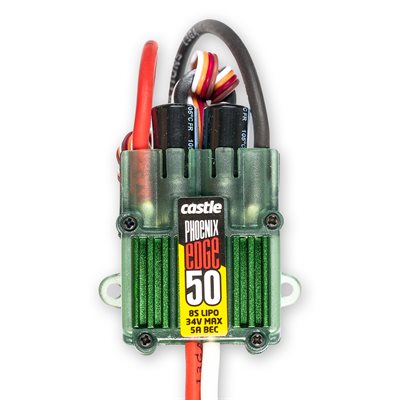

Phoenix Edge 50 AMP ESC, 8S / 33.6V with 5 AMP BEC

Phoenix Edge

Product #: 010-0102-00

UPC code:819326010040

(Based on 4 vote(s))
2 review(s) | Write a review
USD $99.95 /EA
List Price: USD $121.95 /EA
  • Telemetry Capable : Yes
  • ESC Current Rating : 50
  • Data Logging : Yes
  • Auxiliary Wire : Yes
  • Internal BEC : Yes
  • Minimum Input Voltage : 2S
  • Maximum Input Voltage : 8S
    • EA
  • Tell a Friend
  • Availability: Temporarily out of stock.

Get the Edge Over the Competition!

Phoenix Edge Series ESCs are the next evolution in speed controller technology. The white user-programmable auxiliary wire can be used for features such as helicopter governor gain input adjustments mid-flight, serving as an audible beacon after an “unexpected landing”, acting as an RPM output for 3-axis gyros that support RPM sensors, be used as an ESC arming lock (coupon for free Arming Lockout included) , or as a receiver arming lock. Combined with data logging, access to Castle’s industry leading software functions, and USB programming capability via Castle Link USB Adapter (coupon included),or the new B-LINK Bluetooth Adapter and Castle Link for iOS, Phoenix Edge offers unparalleled versatility.

Technical Specs
Input Voltage Range: MIN: 2S LiPo
MAX: 8S LiPo
Max Continuous Amperage at full throttle: 50 amps*
Max Voltage: 33.6V
BEC Voltage: User selectable choice from 5 to 8.4 volt output
BEC Output: 5 amp peak**
Size: Width: 1.7" (43.4mm)
Length: 2.1" (53.3mm)
Depth: 0.8" (70.8mm)
Weight (w/wires): 2.5 oz. (70.8g)
1.6 oz. (45.3g) without wires
Application Guidelines:
450 class helicopters and .25 - .35 fixed wing
Items Needed for Operation: Battery and motor connector required; Battery: Castle 4mm polarized connector, Motor: 4mm bullet connector (or compatible connectors pre-installed on the motor)
Product Use Statements: Always perform a range check at full, half and zero throttle before flying any new speed controller.
For helicopters, range check with the blades off the helicopter at full, half and zero throttle.
Application Guidelines: 450 class helicopters
.25 - .35 fixed wing
Tech Notes: Note to users with a Futaba Transmitter: You must reverse the throttle channel signal on your transmitter.Please refer to your Futaba instructions.
Resources
Phoenix Edge User Guide Phoenix Edge Quick Start Guide Phoenix Edge Wiring Guide
Phoenix Edge Arm Lock Key and Harness Guide Phoenix Edge 50 Tech Drawing FAQ

*RC HOBBY APPLICATION RATING: 50 amps for the duration of a single5,000 mAh battery pack with the ESC in contact with a 5 mph airflow of25C (77F) or cooler air. Controller temperature must never exceed 100C(212F). Exceeding current or temperature ratings may damage componentsand may shorten the life of the ESC. Always verify system current drawat full-throttle. Decrease load or increase airflow to decrease theESC’s operating temperature.

**Peak indicates amperage sustainable for 0.5 seconds – long enough for most servos’ current draw transients. Your setup may vary.Always confirm servo current draw before the first flight of the model.
This is a high power product with the potential to be very dangerous. Please read the safety information before use. This product may contain chemicals known to the State of California to cause cancer and or birth defects or other reproductive harm.

U.S. Patent # 7400103, 7492122, 7579796, 7740516, 8287328, 8678875, and 8905814 B2 - Other patents pending.

Controller designed, and circuit boards manufactured, in Olathe, Kansas USA.
Controller assembled in Olathe, KS USA.



Product Features

Data Logging:

Available using Castle Link USB Adapter and the Castle Link Windows software to read, analyze and store the data recorded on the ESC.

Power System Alerts:

The Edge ESCs are programmed to sound a number of tunes and codes using the motor as well as flashing LED patterns to alert users to certain conditions regarding their power system, such as over temperature, excessive load and locked head speed.

AUX Functionality:

The Edge ESCs offer an AUX LINE, which is the extra white wire connected to the receiver cable. This line may be used for a variety of tasks such as helicopter governor gain input adjustments mid-flight, serve as an audible beacon after an "unexpected landing", act as an RPM output for 3-axis gyros that support RPM sensors, be used as an ESC arming lock (coupon for free Arming Lockout Key included)  or as a receiver arming lock.

Telemetry Capable:

Telemetry has the potential not only to improve the safety of our models by monitoring battery voltages, ESC temperature, and other critical parameters, but it also creates other opportunities to get even more fun out of flying because you’ve essentially reduced the risks of “unknown” inevitable crashes. Think of the benefits to be had from alarms that will sound to warn you when there's interference about or if your receiver battery is running unexpectedly low. Requires purchase of  Castle Telemetry Link for S.BUS2 (Item # 010-0152-00) and compatible Futaba Radio or Castle Telemetry Link for X-BUS (Item# 010-0148-00) and a compatible Spektrum Radio.

Protection Features:

Arming Lockout Key: When the Arm Lock Key is in the socket, the controller will be incapable of arming. (coupon for Arm Lock Key and Harness included with EDGE purchase)
RC Arm Lock: The controller will not arm or run when the auxiliary channel is below 50% after connecting the AUX line to an open channel on your receiver that is programmed to serve as an arm lock switch.

Warranty:

Castle Creations, Inc. warrants this product to be free from manufacturing defects for a period of one year from date of purchase.

Programmability:

Fully programmable Castle feature set using Castle Link USB Adapter (coupon for free Castle Link adapter included in package) and freely downloadable Castle Link Windows software, or the Castle Link iOS App and a B-Link Bluetooth Adapter. (A small subset of the settings available through Castle Link Windows software can be accessed via manual programming through the transmitter stick).

Firmware Upgrade:

Users will receive free access to all firmware updates, including added features sets using the Castle Link USB Programming Kit


Castle Link Compatible
With the Castle Link USB Programming kit you can use your Windows™ PC toeasily program your controller. Castle Link includes all code for allCastle Link compatible hobby products in one convenient download. Note:Castle Link software requires a Castle Link USB adapter and a computerthat is running Windows. Castle Link is compatible with Windows Vista,Windows 7, Windows 8 and Windows 10. Macintosh users may take advantageof software such as Parallels Desktop, VMware Fusion, or Apple's BootCamp along with Windows Vista, Windows 7, Windows 8, or Windows 10 to runthe Castle Link software, provided the Macintosh has an Intelprocessor. Macintosh installation is not supported by Castle Creations.

Additional Castle Link benefits include:
  • Access expanded programming and parameters for Castle controllers (see overview below)
  • Access to all firmware updates, including added features sets released from Castle Engineering, at no charge.
  • Intuitive Demo Mode capability
  • Ability to default ESC to factory settings
  • Ability to save setup profiles for later use
  • Ability to download and view data logs (on applicable controllers)
Phoenix Edge/HV Castle Link Settings Overview
Throttle Vehicle Type: Airplane Helicopter Control Line External Governor
Throttle type: Auto-Calibrating Throttle
Fixed-Endpoints Governor Mode:
  • Simple
  • Gov Low/High
  • Set RPM
Fixed-Endpoints
Fixed-Endpoints Governor Mode:
  • Simple
  • Gov Low/High
  • Set RPM
Brake:
  • Brake Strength
  • Brake Ramp
  • Brake Delay
                 N/A
  • Brake Strength
  • Brake Ramp
  • Brake Delay
                N/A
Cutoffs:
  • Cutoff Voltage
  • Voltage Cutoff Type
  • Current Limiting
  • Current Cutoff Type
  • Auto-LiPo Volts/Cells
  • Cutoff Voltage
  • Voltage Cutoff Type
  • Current Limiting
  • Current Cutoff Type
  • Auto-LiPo Volts/Cells
  • Cutoff Voltage
  • Voltage Cutoff Type
  • Current Limiting
  • Current Cutoff Type
  • Auto-LiPo Volts/Cells
  • Cutoff Voltage
  • Voltage Cutoff Type
  • Current limiting
  • Current Cutoff Type
  • Auto-LiPo Volts/Cells
Motor:
  • Start Power
  • Timing
  • Direction
  • PWM Rate
  • Start Power
  • Timing
  • Direction
  • PWM Rate
  • Start Power
  • Timing
  • Direction
  • PWM Rate
  • Start Power
  • Timing
  • Direction
  • PWM Rate
Other:
  • Power-On Beep
  • Link Live Enable
  • BEC Voltage*
  • Auxiliary Wire Mode
  • Power-On Beep
  • Link Live Enable
  • BEC Voltage*
  • Auxiliary Wire Mode
  • Power-On Beep
  • Link Live Enable
  • BEC Voltage*
  • Auxiliary Wire Mode
  • Power-On Beep
  • Link Live Enable
  • BEC Voltage*
  • Auxiliary Wire Mode
Logging:
  • Enable Logging
  • Sample Frequency
  • Automatic Data Reset
  • Data Log Parameters
  • Enable Logging
  • Sample Frequency
  • Automatic Data Reset
  • Data Log Parameters
  • Enable Logging
  • Sample Frequency
  • Automatic Data Reset
  • Data Log Parameters
  • Enable Logging
  • Sample Frequency
  • Automatic Data Reset
  • Data Log Parameters
*Phoenix Edge HV and Phoenix Edge HV Lite ESCs do not have an on-board BEC and as such do not have a BEC Voltage setting.
Average rating:
(Based on 4 vote(s))
Rate this product:
Charles From Peachtree Corners, Georgia
Works great
November 2, 2023
Very useful ESC, with lots of very useful display functions to monitor performance.
1 of 1 people found this review helpful
Was this review helpful to you? (1) (0)
nhk750 From United States
Great ESC!
October 26, 2018
This esc is heavy duty and works great. I built an Alien Aircraft Super Dragon and it is sealed inside this flying boat, so no air flow, and it runs at around 145 deg f with no issues. I'm putting out around 600-700 watts with my setup.
