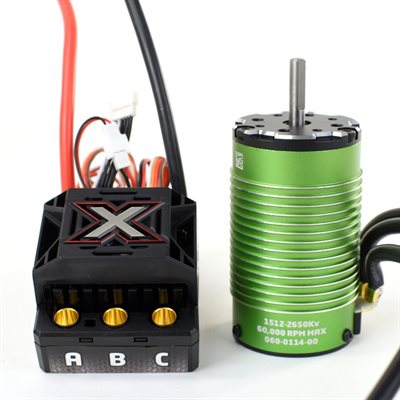

MONSTER X 25.2V ESC, 8A PEAK BEC W / 1512-2650KV V2 SENSORED MOTOR
Product #: 010-0145-07
USD $299.95 /EA
List Price: USD $365.95 /EA
List Price: USD $365.95 /EA
- Waterproof : Yes
- Telemetry Capable : Yes
- Data Logging : Yes
- Auxiliary Wire : Yes
- Minimum Input Voltage : 2S
- Maximum Input Voltage : 4S
- Sensored Capable : Yes
- Recon G6 Certified ESC : No
- ROAR Certified ESC : No
- CRYO-DRIVE : No
- B-Link Compatible : Yes
- Availability: This item is in stock.
Putting the X in Extreme!
Our Mamba Monster X ESC and 1512-2650Kv V2 are paired together and perform incredibly in 1/8th buggies and on-road cars weighing up to 9lbs and up to 4s LiPo. You will have all the power your 1:8th scale vehicle demands with thes moother throttle control of a sensored motor. Mamba Monster X takes Castle’s legendary “monster” performance to a whole new level.
New 1512-2650Kv V2 motor now included! Our commitment to excellence drives us to refine the user experience,optimize performance, and ensure that every aspect of our products are meticulously designed to provide the utmost satisfaction. Let's face it,even the best products have room for refinement, which is why we are excited to introduce the newly redesigned 1512-2650Kv V2, a new spin on one of the most popular motors we've ever produced! The transformation has included several improvements, most contributed by new stator and rotor assembly upgrades that, in turn, allow for even HIGHER EFFICIENCY, REDUCED TEMPERATURES, AND SMOOTHER START-UPS!
Note:011-0131-00 Rotor Replacement is NOT compatible with the V2 motor. Anew rotor replacement will be available in the future. Check back herefor updates.
MAMBA MONSTER X FEATURES:
|
|
*Not intended for operation while submerged in liquid. If unit is operated in wet conditions, rinse with fresh water to remove dirt or corrosives,then fully dry unit.
1512-2650 V2 MOTOR FEATURES:
|
|
MAMBA MONSTER X ESC W/1512-2650KV V2 COMBO COMES WITH:
|
|
| Resources | ||
|---|---|---|
| Monster X Driver's Ed Guide | Monster X Quick Start Guide | Sensored Motor Quick Start |
| SMARTSENSE™ Technology | Audible Alert Reference Chart | Maintaining Motors in Wet Conditions |
| Technical Specs | |
|---|---|
| Electronic Speed Controller: | |
| Input Voltage Range: | MIN: 2S LiPo MAX: 6S LiPo (4s max with included 1512-2650kv V2 motor) |
| BEC Specifications: | Adjustable: 5.5V, 6.0V, 7.5V. or 8.0V (8A Peak), default 5.5V |
| Operating Environment: | Waterproof* design allows for use in nearly any environment. |
| Brake: | Proportional |
| Reversible: | Yes, but may be disabled for racing. |
| On/Off Switch: | Yes |

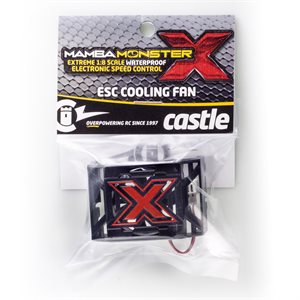

| Cooling Fan: | Yes, factory equipped (30mm), fully removable** (see Product Use Statements below) |
| Size: | Length: 2.09" (53mm) Width: 1.93" (49mm) Height: 1.44" (36.4mm) |
| Weight (with no battery connector): | 3.92 oz. (111.g) |
| Connectors: | 6.5mm female bullets for motor connection. |
| Items Needed for Operation: | Battery Connector required, 6.5mm Castle Connectors are recommended. |
| Product Use Statements: | *Although Mamba Monster X and Castle brushless motors are waterproof, they are not intended for operation while completely submerged in liquid. They can corrode when exposed to corrosive materials, such as salt water. Always rinse the ESC and motor with clean water after exposure to corrosives or dirt. While the motor and controller may be waterproof, we suggest users confirm that the rest of their vehicle, including the batteries, servos, radio and chassis are also waterproof before exposing them to liquids of any kind. **The cooling fan must be removed prior to driving in wet conditions. It is not waterproof. |
| Application Guidelines: | Intended for up to 4S (25.2 Volt) operation in vehicles weighing less than 9 lbs, with batteries, ready-to-run. |
| Recommended Motors: | Combo includes Castle sensored 1512-2650Kv: Max Cells: 4s |
| Max. Recommended Vehicle Weight: | Less than 9 lbs, with batteries, ready-to-run with included 1512-2650Kv motor. |
| Programmability: | Fully programmable Castle feature set using Castle Link USB adapter (coupon for free Link included) and freely downloadable Castle Link Windows software, or the Castle Link iOS App and a B-Link Bluetooth Adapter (sold separately). |
| Telemetry Link Capable: | Requires purchase of Futaba S.BUS™ Telemetry Link. S.BUS2™ extends Futaba S.BUS™ and supports bidirectional communication. Compatible radios will support S.BUS2 protocol. It is also necessary to utilize a compatible Futaba® Telemetry Receiver. Click here to view the Futaba® Radio Compatibility Chart. |
| Tech Notes: |
|
| Motor: | |
| Input Voltage Range: | 2-4S LiPo |
| Kv: | 2650 |
| Max. RPM: | 60,000 |
| Size: | Length: 67.7mm Diameter: 40mm (41.4mm with fins) |
| Weight (w/wires): | 383g (13.6oz); 334g without wires. |
| Shaft Size: | Length: 20mm Diameter: 5mm |
| Mounting Hole Specifications: | M3 and M4 @ 25mm |
| Cooling Fan: | 011-0139-00 |
| Connectors: | 6.5mm male Castle Bullet Connectors, includes 210mm length sensor wire. |
| Application Guidelines: | Ideal for 1:8 scale off-road and on-road vehicles as well as 1:10 scale 4WD SCT up to 9lbs and up to a 4s LiPo. |
| Max. Recommended Vehicle Weight: | See application guidelines |
| Tech Notes: | Running modes: SMARTSENSE™, Sensored, Sensorless with Castle sensored capable ESCs. |
| Resources | |
|---|---|
| Monster X Driver's Ed Guide | Monster X Quick Start Guide |
For support, frequently asked questions, technical documents, and more, visit our support site.Castle Creations, Inc. warrants this product to be free from manufacturing defects for a period of one year from date of purchase.
This is a high power product with the potential to be very dangerous. Please read the safety information before use. This product may contain chemicals known to the State of California to cause cancer and or birth defects or other reproductive harm.
U.S. Patent # 7400103, 7492122, 7579796, 7740516, 8287328, 8678875, and 8905814 B2 - Other patents pending.
This is a high power product with the potential to be very dangerous. Please read the safety information before use. This product may contain chemicals known to the State of California to cause cancer and or birth defects or other reproductive harm.
U.S. Patent # 7400103, 7492122, 7579796, 7740516, 8287328, 8678875, and 8905814 B2 - Other patents pending.
Controller designed and circuit boards manufactured, in Olathe, Kansas USA.
Controller assembled in Olathe, Kansas USA.
Motor designed in Olathe, Kansas USA.
Motor manufactured in China.
| Product Features | |
|---|---|
| Date Logging: | Mamba Monster X can capture and record performance data from your last couple of runs, commonly referred to as data logging. This data can be downloaded via the Castle Link USB programmer; you can use the Quick Connect Duo (sold separately) to allow you to access both wires into a single Castle Link connection. You can then analyze this data and make adjustments to the ESC to maximize both performance and battery life. |
| Auxiliary Functionality: | Mamba Monster X features the addition of a new, programmable AUX wire that allows you to make “on-the-go” adjustments to several settings such as torque control, and max throttle, and fine-tune the performance of your ESC right from the transmitter using an auxiliary channel on the receiver. The AUX wire function is disabled by default but is programmable via Castle Link or the Castle Link iOS App. Once you have programmed the functionality of the AUX wire, that setting can then be adjusted on-the-go from a compatible transmitter. Click here for additional information. |
| Programmability: | Fully programmable Castle feature set using Castle Link USB adapter (coupon for free Castle Link adapter included in package) and freely downloadable Castle Link Windows software or the Castle Link iOS App and a B-LINK Bluetooth Adapter. (A small subset of the settings available through Castle Link Windows software can be accessed via manual programming through the transmitter stick). |
| Firmware Updates: | Users will receive free access to all firmware updates, including added features sets using the Castle Link USB Programming Kit. Click here for software versions available for Mamba Monster X. |
| 1512-2650Kv Motor: | Our IMPROVED 4-POLE 12-SLOT sensored design boasts exceptional EFFICIENCY and produces LESS HEAT. Learn more about the optimized design and motor features by clicking here. |
| Power System Alerts: | Mamba Monster X also features updated Audible Alerts that will notify you of possible issues with calibrations and error conditions to help diagnose problems in the field. Click here to see complete list. |
| Telemetry Capable: | Mamba Monster X is telemetry ready, which means owners of Futaba T4PX Transmitters will be able to purchase the Castle Creations Telemetry Link for S.BUS2. Real-time data such as ESC temperature, voltages, and RPM can be monitored to ensure performance advantages and spare you the “unknown” parameters that all R/C enthusiasts experience at some point. Telemetry data provides another level of protection and can increase performance. |
| Warranty: | Castle Creations, Inc. warrants this product to be free from manufacturing defects for a period of one year from date of purchase.Click here for additional information about our Tier 1 and Tier II warranty. |
Castle Link Compatible
With the Castle Link USB Programming Kit you can use your Windows™ PC to easily program your controller. Castle Link includes all code for all Castle Link compatible hobby products in one convenient download.
Adjustable settings include:
Additional Castle Link benefits include:
- Throttle
- Braking curve
- Drag brake
- Auto LiPo cutoff
- Punch Control
- Reverse Type
- Motor Type
Additional Castle Link benefits include:
- Access expanded programming and custom parameters for Castle controllers
- Access to all firmware updates, including added features sets released from Castle Engineering, at no charge.
- Intuitive Demo Mode capability
- Ability to default ESC to factory settings
- Ability to save setup profiles for later use
- Ability to download and view data logs (on applicable controllers)
