Mamba X Wires Harness Retainer
Product #: 011-0142-00
This is a replacement part for the 1/10th Mamba X ESC. It is used to retain the receiver harness and sensor harness.
Package includes:
1 - Delrin retainer
2 - 1.6mm x 8mm screws
Package includes:
1 - Delrin retainer
2 - 1.6mm x 8mm screws
Installation instructions:
1.Unplug wires from receiver and disconnect the fan.
2.Using 1.5mm hex wrench, remove screws.
3.Remove old Wire Harness Retainer.

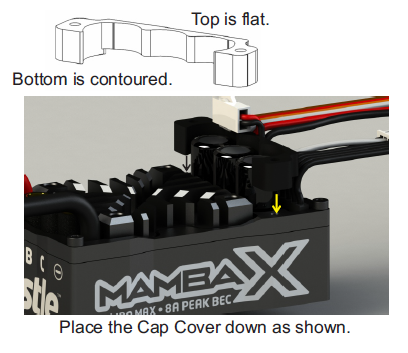

4.Install new Wire Harness Retainer and screws. Make sure flat side faces up and contoured side faces toward ESC (see picture).
5.Reconnect cooling fan and receiver connections.
2.Using 1.5mm hex wrench, remove screws.
3.Remove old Wire Harness Retainer.
4.Install new Wire Harness Retainer and screws. Make sure flat side faces up and contoured side faces toward ESC (see picture).
5.Reconnect cooling fan and receiver connections.
