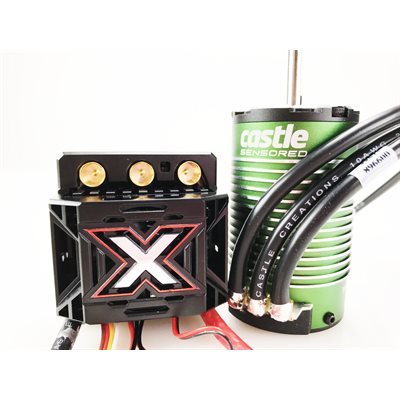

MONSTER X 25.2V ESC,8A PEAK BEC W / 1515-2200KV SENSORED MOTOR
Product #: 010-0145-03
Putting the X in Extreme!
Our Mamba Monster X ESC and 1515-2200Kv are paired together and perform incredibly in monster trucks with up to 6S LiPo packs (4S LiPo is the sweet spot), and works great in 1:8 scale buggies, truggies and on-road vehicles as well as 1:10 scale monster trucks weighing up to 15 lbs. You will have all the power your 1:8th scale vehicle demands with the smoother throttle control of a sensored motor. Mamba Monster X takes Castle’s legendary “monster” performance to a whole new level.
New Firmware Available! Version 2.06 added 'Drag Brake Ramp' feature. Allows user to adjust the rate at which the drag brake is applied at neutral. Click here for additional information and be sure to update your new Mamba Monster X ESC!
- Input Voltage range 2S-6S
- 8A Adjustable BEC (5.25V-8.0V)
- 1515-2200Kv, 4-pole 12-slot sensored motor.
- Waterproof design.
- Removable 30MM cooling fan.
- Convenient transmitter programming for six common adjustable settings.
- Easily program and update ESC with use of Castle Link USB (coupon included for free USB with purchase) and freely downloadable Castle-Link Windows™ program.
- Data Logging capable
- Telemetry Ready
- Auxiliary Wire Functionality allows for “on-the-fly” adjustments such as Max Power and Max Brake.
- Audible Alerts that will notify you of possible issues with calibrations and error conditions.
- Designed and manufactured in Olathe, Kansas and is backed by our 1-year warranty.
|Monster X Driver's Ed Guide ||Monster X Quick Start Guide ||Sensored Motor Quick Start |
|SMARTSENSE™ Technology ||Audible Alert Reference Chart ||Maintaining Motors in Wet Conditions |
- Waterproof : Yes
- Telemetry Capable : Yes
- Data Logging : Yes
- Auxiliary Wire : Yes
- Minimum Input Voltage : 2S
- Maximum Input Voltage : 6S
- Sensored Capable : Yes
- Recon G6 Certified ESC : No
- ROAR Certified ESC : No
- Availability: This item is out of stock and will ship when available.
|Input Voltage Range:||MIN: 2S LiPo
MAX: 6S LiPo (25.2V)
|BEC Specifications:||Adjustable: 5.5V, 6.0V, 7.5V. or 8.0V (8A Peak), default 5.5V|
|Operating Environment:||Waterproof* design allows for use in nearly any environment.|
|Reversible:||Yes, but may be disabled for racing.|
|Cooling Fan:||Yes, factory equipped (30mm), fully removable** (see Product Use Statements below)|
|Size:||Length: 2.09" (53mm)
Width: 1.93" (49mm)
Height: 1.44" (36.4mm)
|Weight (with no battery connector):||3.92 oz. (111.g)|
|Connectors:||6.5mm female bullets for motor connection.
|Items Needed for Operation:||Battery Connector required, 6.5mm Castle Connectors are recommended.|
|Product Use Statements:||*Although Mamba Monster X and Castle brushless motors are waterproof, they are not intended for operation while completely submerged in liquid. They can corrode when exposed to corrosive materials, such as salt water. Always rinse the ESC and motor with clean water after exposure to corrosives or dirt. While the motor and controller may be waterproof, we suggest users confirm that the rest of their vehicle, including the batteries, servos, radio and chassis are also waterproof before exposing them to liquids of any kind.
**The cooling fan must be removed prior to driving in wet conditions. It is not waterproof.
|Application Guidelines:||Intended for up to 6S (25.2 Volt) operation in vehicles weighing less than 15 lbs, with batteries, ready-to-run.
Not recommended for use in high speed 1/8th and larger applications (IE Arrma Infraction and Limitless, Traxxas XO-1)
|Recommended Motors:||Combo includes Castle sensored 1515 2200Kv: Max Cells: 6s Lipo or 16 NiMH|
|Max. Recommended Vehicle Weight:||Less than 15 lbs, with batteries, ready-to-run|
|Programmability:||Fully programmable Castle feature set using Castle Link USB adapter (coupon for free Link included) and freely downloadable Castle Link Windows software, or the Castle Link iOS App and a B-Link Bluetooth Adapter (sold separately).
|Telemetry Link Capable:||Yes|
|Input Voltage Range:||2-6S LiPo|
Diameter: 40mm (41.4mm with fins)
|Weight (w/wires):||429g / 15.1oz
|Shaft Size:||Length: 20mm
|Mounting Hole Specifications:||M3 and M4 @ 25mm|
|Cooling Fan:||Optional, coming soon!
|Connectors:||6.5mm male Castle Bullet Connectors, includes 210mm length sensor wire.
|Application Guidelines:||Ideal for 1:8 scale buggies, truggies, on-road vehicles and 1:10 scale monster trucks up to 15lbs.|
|Max. Recommended Vehicle Weight:||See application guidelines
Running modes: SMARTSENSE™, Sensored, Sensorless with Castle sensored capable ESCs.
|Monster X Driver's Ed Guide
||Monster X Quick Start Guide
||Sensored Motor Quick Start
||Audible Alert Reference Chart
||Maintaining Motors in Wet Conditions
This is a high power product with the potential to be very dangerous. Please read the safety information before use. This product may contain chemicals known to the State of California to cause cancer and or birth defects or other reproductive harm.
U.S. Patent # 7400103, 7492122, 7579796, 7740516, 8287328, 8678875, and 8905814 B2 - Other patents pending.
Controller designed, and circuit boards manufactured in Olathe, KS. USA
Controller assembled in Olathe, KS. USA
Motor designed in Olathe, Kansas USA.
Motor made in China.
||Mamba Monster X can capture and record performance data from your last couple of runs, commonly referred to as data logging. This data can be downloaded via the Castle Link USB programmer; you can use the Quick Connect Duo (sold separately) to allow you to access both wires into a single Castle Link connection. You can then analyze this data and make adjustments to the ESC to maximize both performance and battery life.
||Mamba Monster X features the addition of a new, programmable AUX wire that allows you to make “on-the-go” adjustments to several settings such as torque control, and max throttle, and fine-tune the performance of your ESC right from the transmitter using an auxiliary channel on the receiver. The AUX wire function is disabled by default but is programmable via Castle Link or the Castle Link iOS App. Once you have programmed the functionality of the AUX wire, that setting can then be adjusted on-the-go from a compatible transmitter. Click here for additional information.
||Fully programmable Castle feature set using Castle Link USB adapter (coupon for free Castle Link adapter included in package) and freely downloadable Castle Link Windows software or the Castle Link iOS App and a B-LINK Bluetooth Adapter. (A small subset of the settings available through Castle Link Windows software can be accessed via manual programming through the transmitter stick).
||Users will receive free access to all firmware updates, including added features sets using the Castle Link USB Programming Kit. Click here for software versions available for Mamba Monster X.
||Our IMPROVED 4-POLE 12-SLOT sensored design boasts exceptional EFFICIENCY and produces LESS HEAT. Learn more about the optimized design and motor features by clicking here.
|Power System Alerts:
||Mamba Monster X also features updated Audible Alerts that will notify you of possible issues with calibrations and error conditions to help diagnose problems in the field. Click here to see complete list.
||Mamba Monster X is telemetry ready, which means owners of Futaba T4PX Transmitters will be able to purchase the Castle Creations Telemetry Link for S.BUS2. Real-time data such as ESC temperature, voltages, and RPM can be monitored to ensure performance advantages and spare you the “unknown” parameters that all R/C enthusiasts experience at some point. Telemetry data provides another level of protection and can increase performance.
||Castle Creations, Inc. warrants this product to be free from manufacturing defects for a period of one year from date of purchase.Click here for additional information about our Tier 1 and Tier II warranty.
Castle Link Compatible
With the Castle Link USB Programming Kit you can use your Windows™ PC to easily program your controller. Castle Link includes all code for all Castle Link compatible hobby products in one convenient download.
- Braking curve
- Drag brake
- Auto LiPo cutoff
- Punch Control
- Reverse Type
- Motor Type
Additional Castle Link benefits include:
- Access expanded programming and custom parameters for Castle controllers
- Access to all firmware updates, including added features sets released from Castle Engineering, at no charge.
- Intuitive Demo Mode capability
- Ability to default ESC to factory settings
- Ability to save setup profiles for later use
- Ability to download and view data logs (on applicable controllers)
