Receiver Harness Replacement - Monster X, Monster X 8S, Mamba X, & Cobra 8 / 10
Press and move to zoom
Mouse over image to zoom

Receiver Harness Replacement - Monster X, Monster X 8S, Mamba X, & Cobra 8 / 10

Product #: 011-0106-00

UPC code:819326011184

USD $6.75 /EA
List Price: USD $8.95 /EA
  • Accessories : Service Parts
    • EA
  • Tell a Friend
  • Availability: Temporarily out of stock.

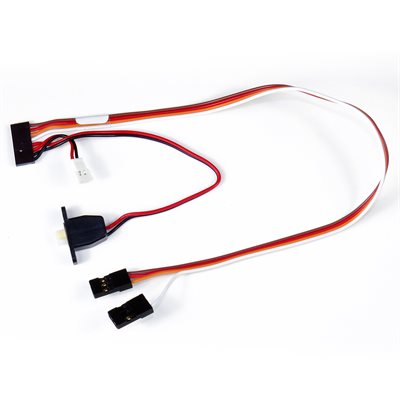

Replacement Receiver Harness for the Mamba Monster X, Mamba Monster X 8s, Mamba X, and Cobra 8 ESCs.

Features:

  • Correct factory-specified connectors (RX and AUX)
  • Waterproof switch
  • Factory-specified wire gauge
Switch Power Switch On Off On/Off XLX2 Switch Switch Power Switch On Off On/Off XLX2 Switch Switch Switch

Mamba Monster X Receiver Harness Connection Instructions

To Remove the Receiver Harness:

  1. Place slight pressure with thumb on capacitor shroud (Figure 1).
  2. Grip the harness close to the 8 pin connector and pull gently, at a slight angle away from ESC, to remove the harness from the ESC pin header (Figure 2).

    Note: Do not yank or forcefully pull harness out of ESC. May cause damage to ESC or harness.

To Replace the Receiver Harness:

  1. Place slight pressure with thumb on capacitor shroud (Figure 1).
  2. Following the color coded wiring diagram provided on the Monster X label, place the 8 pin connector onto the ESC pin header (Figure 3).

    Note: Misalignment of the harness will prevent the ESC from operating. Be sure that the brown wire is plugged in next to the negative (-) black power wire.

  3. Gently press on the 8 pin connector to fully engage with the ESC pin header.
  4. Reconnect cooling fan and receiver connections.

Castle Creations, Inc. warrants this product to be free from manufacturing defects for a period of one year from date of purchase.

This product may contain chemicals known to the State of California to cause cancer and or birth defects or other reproductive harm.

Product designed in Olathe, Kansas USA.
Product made in China.

Average rating:
(Based on 2 vote(s))
Rate this product:
