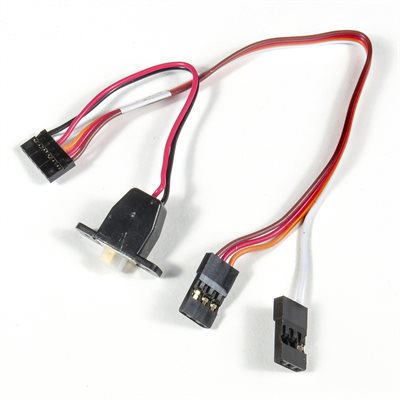

Replacement Receiver Harness for the Mamba Micro X and Mamba Micro X2 ESCs.


  • Correct factory-specified connectors (RX and AUX)
  • Waterproof switch
  • Factory-specified wire gauge
Switch Power Switch On Off On/Off Micro X2

Mamba Micro X Receiver Harness Connection Instructions

To Remove The Receiver Harness:

  1. Place slight outward pressure with thumb on the retaining clip (Figure 1).
  2. Grip the harness close to the 6 pin connector and pull gently, at a slight angle towards the ESC, to remove the harness from the ESC pin header (Figure 2).

    Note: Do not yank or forcefully pull harness out of ESC. May cause damage to ESC or harness.

To Replace The Receiver Harness:

  1. Place slight outward pressure with thumb on the retaining clip (Figure 1).
  2. Following the color coded wiring diagram provided on the Mamba Micro X label, place the 6 pin connector into the ESC pin header (Figure 3).

    Note: The harness must be plugged into the pin headers furthest from the ESC/input capacitors. Misalignment of the harness will prevent the ESC from operating. Be sure that the brown wire is plugged in next to the negative (-) black power wire.
  3. Gently press on the 6 pin connector to fully engage with the ESC pin header, a slight click should be heard when secured. You may need to use a flat head screw driver or tweezers to ensure the connector snaps into place.
