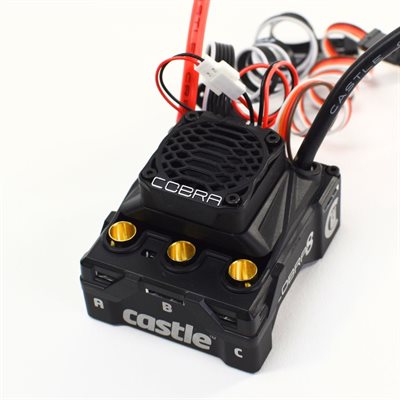

We're thrilled to introduce the Cobra 8, our next generation electronic speed controller (ESC) for surface applications. As the inaugural product in a new line, the Cobra 8 is engineered with cutting-edge technology tailored specifically for 1:8th scale vehicles weighing up to 15 lbs. We’ve packaged the Cobra 8 with three different Castle 4 -POLE 12-SLOT motor options to overpower a wide range of 1:8th scale vehicles.
| Waterproof: Yes |
| Telemetry Capable: No |
| Data Logging: Yes |
| Auxiliary Wire: Yes |
|
Minimum Input Voltage: 2s |
| Maximum Input Voltage: 6s |
| Sensored Capable: Yes |
| Recon G6 Certified Motor: No |
| ROAR Certified Motor: No |
| CRYO-DRIVE: Yes |
| B-link Compatible: Yes |
Package Includes:
- Cobra 8 ESC
- Castle Link V4 USB Adapter
- 300mm Direct Connect Sensor Wire
- Quick Start Guide
- Castle Decals
Cobra 5 Technical Specs
| Input Voltage Range: |
2s - 6s LiPo (25.2v) |
| BEC Specifications: |
5 - 8 volts adjustable in 0.1V increments; (8A Peak); default 5.5V |
| Running Modes: |
SmartSense™ Brushless, Sensored Only, Brushed |
| Brake: |
Proportional |
| Reversible: |
Yes, but may be disabled for racing. |
| On/Off Switch: |
Yes, waterproof |
| Cooling Fan: |
30mm fan included, temperature controlled |
| Size (L x W x H): |
2.36" x 2.04" x 1.69" (60mm x 52mm x 43mm) |
| Weight, with no battery connector: |
5.84 oz (165.6 grams) |
| Connectors: |
6.5mm female bullets for motor connection included. Matching 6.5mm male bullets required (sold separately) |
| Items Needed for Operation: |
A high current connector designed for high-powered electric systems, rated for 120+ amps, such as Castle CC Bullet 6.5mm, CC Bullet 8.0mm, or 6.5mm Polarized Castle Connectors, soldered to the battery leads. |
| Product Use Statement: |
Not intended for drag racing applications. See Ghost RC Cobra 8 ACE for drag racing version. |
| Application Guidelines: |
Intended for 1/8th scale vehicles weighing up to 15lbs and up to 6s LiPo. |
| Programmability: |

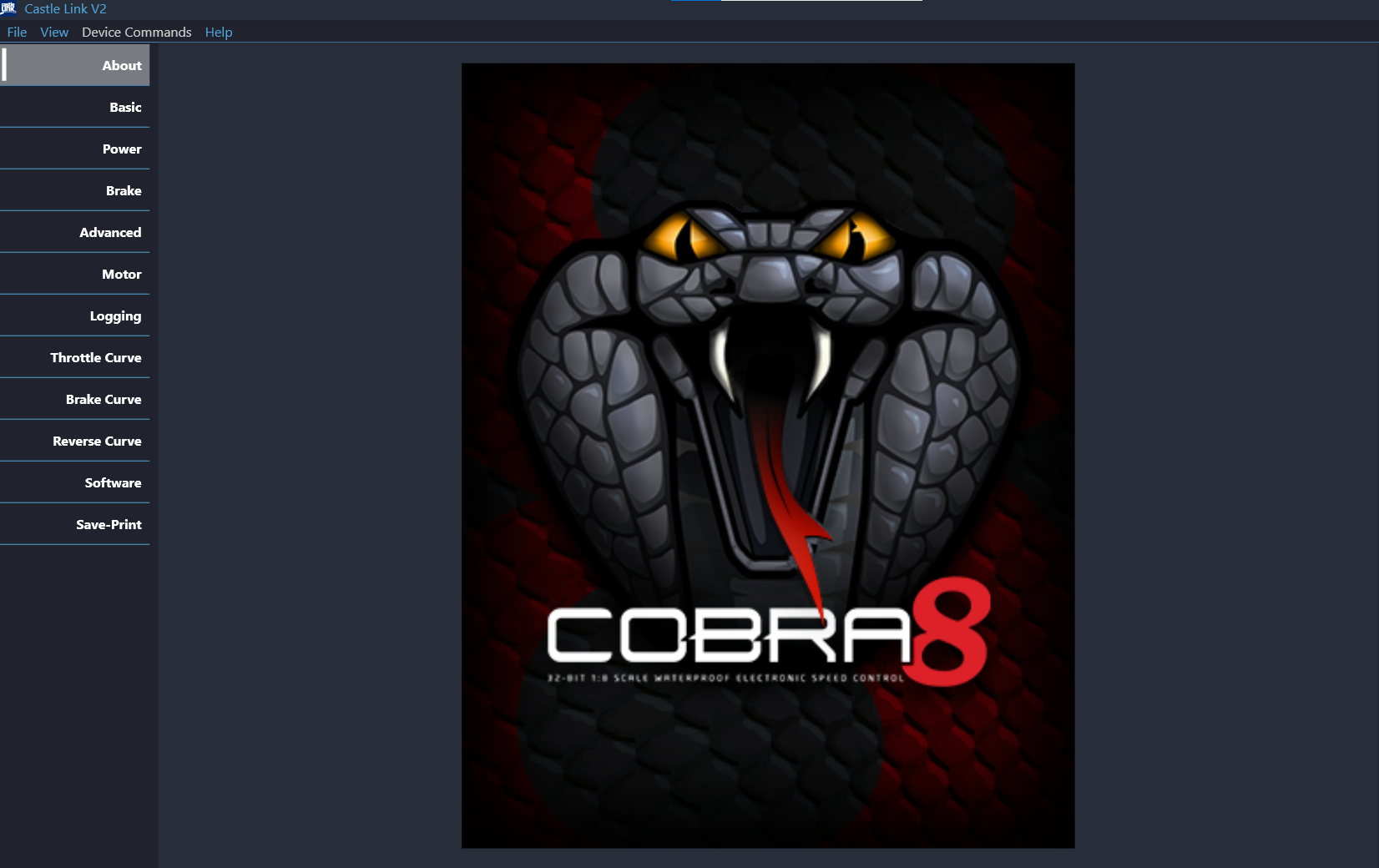

Fully programmable Castle feature set using the included FREE Castle Link V4 USB adapter and freely downloadable NEW Castle Link 2 Windows™ software. (Windows 10+ required) or optional smartphone-based programming with the B-Link 2 Bluetooth Interface (sold separately) and free Castle Link 2 app available on Google Play or Apple App Store. |
- 32-Bit processing power for smoother motor control and improved response time.

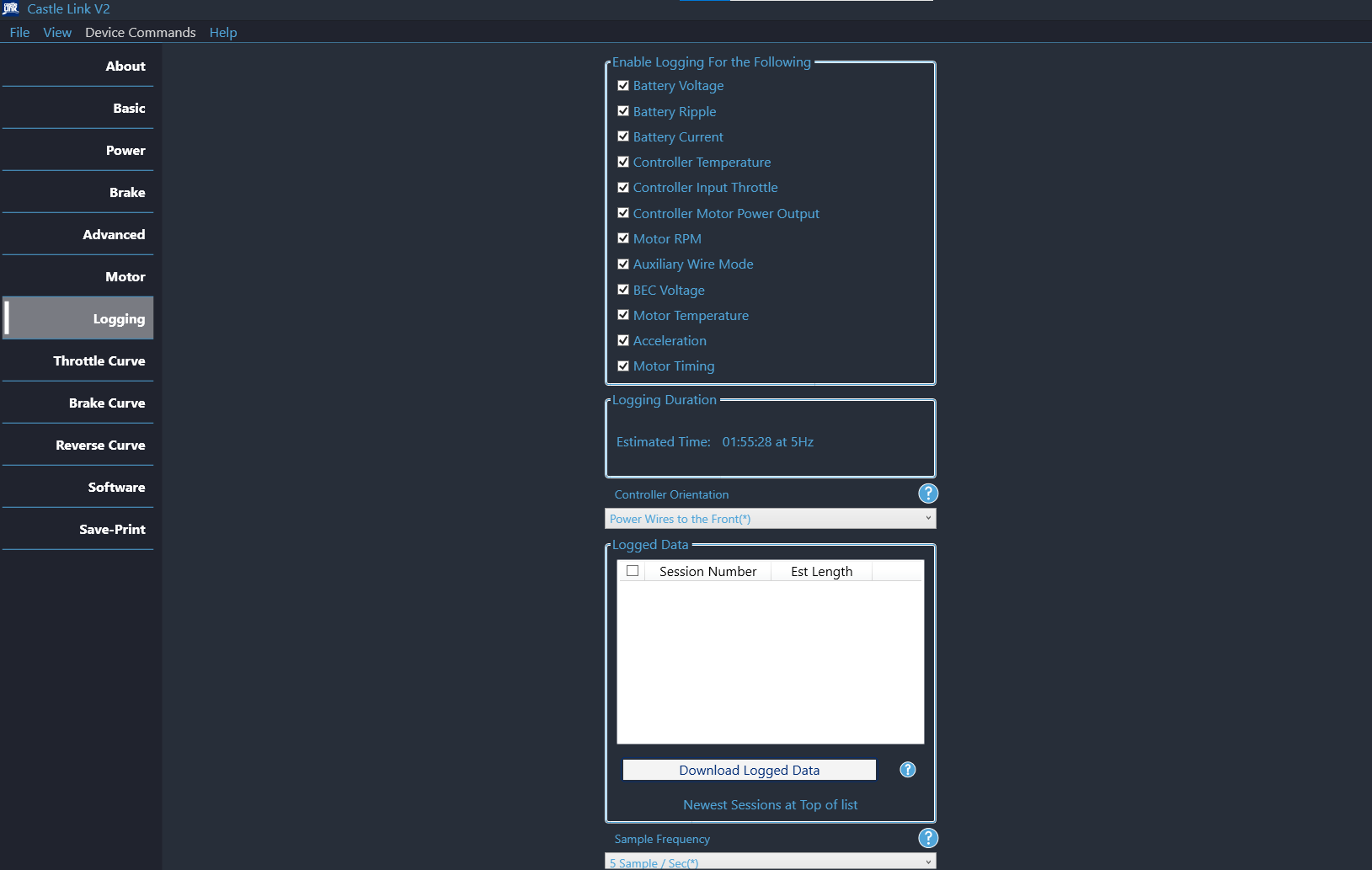

- Enhanced Data Logging includes:
- Double the maximum sample frequency of older generations.
- 8x increased logging time of older generations.
- ESC electrical motor timing data.
- Acceleration data via onboard accelerometer.
- Looping feature prevents interruptions in data log recording.
- Additional tuning features include:
- Improved braking adjustability
- Separate brake and reverse curves
- Highly adjustable internal BEC (5.0V - 8.5V adjustable in 0.1V increments)
- Access to tuning options and firmware updates for free with Castle Link V4 USB programmer included with purchase.
- Optional smartphone-based programming with the B-LINK™ 2 Bluetooth Interface (sold separately) and free Castle Link 2 app available on Google Play or Apple App Store
- Mounting holes located in bottom of aluminum case for installation into vehicle.
Optional Accessories:
| Castle Link Quick Connect (010-0079-00) | 6.5mm Polarized Connectors (M/F single pack) (011-0053-00) |
| Direct Connect Sensor Wire (011-0146-00) | 6.5mm Polarized Connectors (Male single pack) (011-0068-00) |
| 6.5mm Polarized Connectors (Female single pack) (011-0069-00) | CC Bullet 6.5mm |
| CC Bullet 8.0mm | Motor Cooling Fan (011-0153-00) |
| Castle Capacitor Pack, 8s (011-0148-00) |
Resources:
Castle Creations warrants this product to be free from manufacturing defects for a period of one year from date of purchase.
This product may contain chemicals known to the State of California to cause cancer and or birth defects or other reproductive harm.
Product designed in Olathe, Kansas USA.
