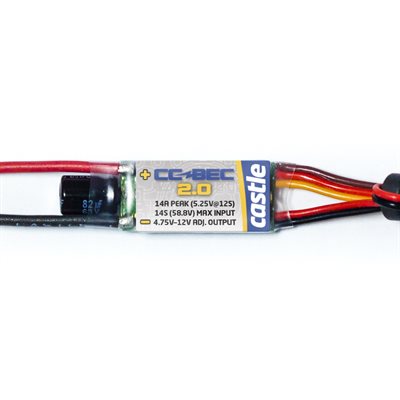

VOLTAGE REGULATOR: CC BEC 2.0, 14A MAX OUTPUT, 14S (58.8 VOLTS)
VOLTAGE REGULATOR: CC BEC 2.0, 14A MAX OUTPUT, 14S (58.8 VOLTS)
From the trusted manufacturer of BECs comes the next generation of voltage regulators. Castle Creations’ CC BEC 2.0 gives users higher voltage ranges in two unique packages. For pilots there is a smaller, lightweight (0.7 oz.) design capable of 14 amps peak, perfect for sport flying, helicopters, and UAVs. Racers, crawlers, and other bashers can now integrate a 15 amp peak power regulator in a waterproof (WP), CNC machined, aluminum case. Both versions handle up to an impressive 14S without brake enabled or 12S with brake.
Technical Specs
| Output Voltage Setting |
| LiPo Cells | 5.25V | 6V | 7V | 8V | 9V/10V | 11V | 12V |
| 8s - 14s | 14A | 13A | 12A | 11A | 10A | 9A | 8A |
| 6S | 13A | 13A | 12A | 11A | 10A | 9A | 8A |
| 4S | 13A | 12A | 11A | 10A | 10A | - | - |
| 3S | 12A | 12A | 11A | 10A | 10A | - | - |
| 2S | 11A | 11A | 10A | - | - | - | - |
CC BEC Comparison Chart:
|
CC BEC 1.0 |
CC BEC Pro |
CC BEC 2.0 |
C BEC 2.0 WP | |
|
Part Number: |
010-0004-00 | 010-0004-01 | 010-0154-00 | 010-0153-00 |
| Common Applications: | Crawlers, Racing, Sport Planes, Night Flyers | Helis, 1/5th Scale Cars, Giant Scale Planes, UAS | Helis, Planes, UAS, Racing | Crawlers, Marine, Sea Planes, UAS, Industrial |
| Waterproof: | No | No | No | Yes |
| Peak Current: | 10A | 20A | 14A (dependent upon input/output voltage) | 15A (dependent upon input/output voltage) |
| Continuous current1: |
2S-3S: 7A 4S-6S: 5A |
2S-4S: 15A 5S-6S: 13A 7S-8S: 11A 9S-10S: 9A 11S-12S: 8A |
4.75-7.0V output: 9A 7.25V-8.5V output: 8A 8.75V-10.0V output: 7A 10.25-12.0V output: 6A |
4.75- 6.0V output: 10A 6.25-8.5V output: 9A 8.75-10.0V output: 8A 10.25-12.0V output: 7A |
| Max Volts: | 6S (25.2V) | Surface: 8S (33.6V) Air (w/Brake): 10S (42.0V) Air (No Brake): 12S (50.4V) |
Surface: 12S (50.4V) Air (W/Brake): 12S (50.4V) Air (No Brake): 14S (58.8V) |
Surface 12S (50.4V) Air (w/Brake): 12S (50.4V) Air (No Brake): 14S (58.8V) |
| Adjustable Output Voltage2: | 4.8 to 9V | 4.9 to 12.5V | 4.75 to 12V | 4.75 to 12V |
| Default Setting: | 5.1V | 5.1V | 5.25V | 5.25V |
| Length: | 1.7" (43mm) | 1.86" (47mm) | 1.69" (43mm) | 1.37" (35mm) |
| Width: | 0.57" (15mm) | 1.30" (33mm) | 0.56" (14mm) | 0.69" (18mm) |
| Height: | 0.48" (12mm) | 0.86" (22mm) | 0.32" (8mm) | 0.75" (19mm) |
| Weight3: | 0.53 oz. (15.2g) | 1.4 oz. (40g) | 0.7 oz. (21g) | 1.0 oz. (28g) |
Footnotes:
1. Ratings are determined with a 5mph airflow at 25° C (77° F). Ratings for CC BEC 2.0 are dependent on both input and output voltage.
2. Adjustable Output Voltage may be set with Castle Link (sold separately).
3.Weight with full length wires, power wires may be shortened to save weight depending on application.
Tech Note: Do not connect 3-wire lead (brown/red/orange) to the bind port on Spektrum receivers. This can cause some Spektrum receivers to go into bind mode. You can connect the 2-wire (black/red) to the bind port.
The CC BEC 2.0 complements our established line of BECs hobbyists have relied on for years. With hundreds of thousands in the field, users can count on this new design to power today’s high-power, digital servos and accessories safely. The CC BEC 2.0 features heavy duty, dual output wires that will provide clean power to sensitive radio equipment. Castle Link 2 software1 can be used to set the output from 4.75 to 12 volts and power today’s power hungry servos, cameras, and other accessories. Do it right the first time, invest in the CC BEC 2.0 to protect expensive electronics for the long haul.
Note: CC BEC 2.0 should never be operated in series or parallel with another BEC or backup receiver pack connected to the RX/Servo side of the circuit.
Footnote:
1. Adjustable Output Voltage may be set with Castle Link (sold separately).
Resources:
| CC BEC 2.0 Instruction Manual | External BEC Wiring Guide |
Castle Creations warrants this product to be free from manufacturing defects for a period of one year from date of purchase.
This product may contain chemicals known to the State of California to cause cancer and or birth defects or other reproductive harm.
Product designed in Olathe, Kansas USA.
