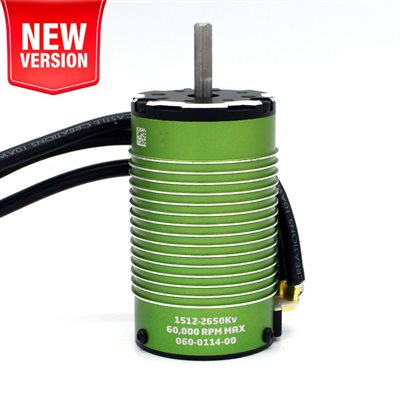

SENSORED MOTOR: 4-POLE SENSORED BRUSHLESS 1512-2650KV V2 MOTOR
SENSORED MOTOR: 4-POLE SENSORED BRUSHLESS 1512-2650KV V2 MOTOR

SENSORED MOTOR: 4-POLE SENSORED BRUSHLESS 1512-2650KV V2 MOTOR

060-0114-00
$189.95

Our dedication to excellence compels us to continuously enhance the user experience, optimize performance, and meticulously craft every detail of our products to deliver maximum satisfaction. Even the finest products can be improved, which is why we're thrilled to unveil the newly revamped 1512-2650Kv V2. This updated version features a completely re-engineered rotor and stator, leading to improved magnetic flux. The result? Greater efficiency, smoother startups, lower temperatures, and extended run times!

Note:011-0131-00 Rotor Replacement is NOT compatible with the V2 motor. A new rotor replacement will be available in the future. Check back here for updates.



Minimum Input Voltage: 2s
Maximum Input Voltage: 4s
Sensored Capable: Yes
Recon G6 Certified Motor: No
ROAR Certified Motor: No



1512-2650Kv V2 Features:

  • Input Voltage range: 2s-4s LiPo
  • Redesigned rotor and stator assemblies.
  • Reduced magnetic cogging, producing less residual drag brake.
  • Increased efficiency, resulting in lower temperatures and longer run times.
  • Smoother start-up, reducing cogging or stuttering when starting from a stop.
  • Rebuildable design allows replacement of front end bell/bearing assembly or rotor/shaft assembly.
  • High-Strength Kevlar Wrap and 180C Grade Neodymium Sintered Magnets
  • Oversized NMB Bearings and High-Temperature, High-Purity Copper Windings
  • Castle 10 AWG, High-Strand-Count Silicone-Insulated Wire with 6.5mm Bullet Connectors
  • High-Performance 0.2mm Steel Lamination Stacked Stator
  • Oversized, low-resistance, gold-plated solder tabs
  • Sensor board with High Quality Temperature-Stabilized Sensors
  • T6 Aluminum CNC Machines Front/Rear End bell
  • Proudly Designed and Supported in Kansas, USA.
  • Backed by Castle Creations' 1-YEAR WARRANTY



Technical Specs

Input Voltage Range: 2s - 4s LiPo
Kv: 2650
Max RPM: 60,000
Size: Length: 67.7mm
Diameter: 40mm (41.1mm with fins)
Weight (w/wires):

13.6oz / 383g (334g without wires)
Shaft Size: Length: 20mm
Diameter: 5mm
Mounting Hole Specs: M3 and M4 @ 25mm
Cooling Fan: Optional, 011-0139-00
Connectors: 6.5mm male Castle Bullet Connectors, includes 210mm length sensor wire.
Items Needed for Operation: Compatible Electronic Speed Control (ESC)
Application Guidelines: Ideal for 1:8 scale off-road and on-road vehicles as well as 1:10 scale 4WD SCT up to 9lbs and up to 4s LiPo.
Recommended ESCs: Mamba Monster X, Cobra 10
Tech Tips: Running modes: SmartSense™ Sensored and an ultra-efficient Sensorless mode

Water Resistant Design: The sensor board is coated with silicone conformal coating to protect the sensors from moisture. The sensor connections are not water resistant; water can cause signal loss which could result in loss of sensored capabilities. Castle recommended applying dielectric grease to the outside of the sensor wire connections after installation of the wire. Routine maintenance is recommended after running in wet conditions. Please refer to instructions for running and maintaining motors in wet environments.



Resources

Sensored Motor Quick Start Guide

Maintaining Motors in Wet Conditions

Castle Motor User Guide

1512-2650Kv Mechanical Drawing

Castle Creations warrants this product to be free from manufacturing defects for a period of one year from date of purchase.

This product may contain chemicals known to the State of California to cause cancer and or birth defects or other reproductive harm.

Product designed in Olathe, Kansas USA.
