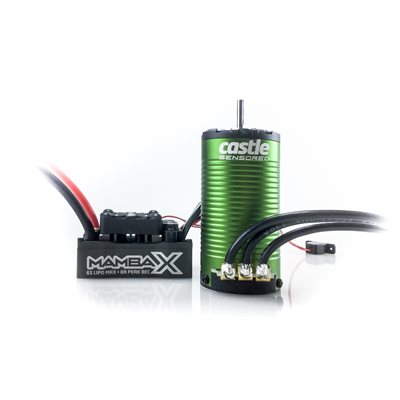

MAMBA X SCT, SENSORED, 25.2V WP ESC AND 1415-2400KV COMBO
Press and move to zoom
Mouse over image to zoom

MAMBA X SCT, SENSORED, 25.2V WP ESC AND 1415-2400KV COMBO

Product #: 010-0160-00

Meet the next generation.

Castle Creations is proud to announce our new flagship surface product, the MAMBA X EXTREME 1:10 SCALE WATERPROOF ESC. We at Castle wanted to address three main concepts while designing a new ESC for the modern day RC enthusiast; VERSATILITY, RELIABILITY, and PERFORMANCE. These are the pillars of the Mamba X design and the driving forces behind the feature-packed controller.

The Mamba X is extremely versatile, capable of powering a wide variety of applications ranging from 2S to 6S and vehicles ranging from 1/10th scale to 1/8th scale*. The Mamba X with 1415 2400kv sensored motor is the perfect combo for 1/10th scale 2WD and 4WD short course trucks and rock racers weighing up to 6.5lbs and running on 3s or 4s LiPo. It will have huge amounts of torque, low temperatures, and incredible speed making this the perfect combo for hardcore bashing and driveshaft snapping power.


FEATURES:

MAMBA X ESC COMES WITH:

  • Mamba X ESC with Sensor Harness
  • 1415-2400Kv 4-pole 12-slot sensored motor
  • Coupon for free Castle Link USB
  • Mamba Decals
  • Driver's Ed and Quick Start Guide
  • Gearing Chart for Castle Motors

*In 1/8th scale setups, the Mamba X is intended to be used for off-road racing in buggies weighing up to 9 lbs (including batteries and ready-to-run). In these 1/8th scale racing setups, the Mamba X should be run at 4S Lipo (16.8V) max and is recommended to be paired with the Castle 1512-1800Kv (P/N: 060-0062-00) or Castle 1515-2200Kv (P/N: 060-0063-00) motor, with appropriate gearing only.



Resources
Mamba X Driver's Ed Guide
Mamba X Quick Start Guide
1:10th Scale Gearing Chart
SMARTSENSE™ Technology
Audible Alert Reference Chart
Maintaining Motors in Wet Conditions
RC Driver Review Mamba X
Making of Mamba X Video
Sensored Motor Quick Start
1406 Motor 2-Pole Equivalent Turn-Count Data Sheet
1406 Sensored Motor Competitive Testing Results
Mamba X ESC and 1415-2400 Diagram


USD $239.95 /EA
List Price: USD $292.95 /EA
Bookmark and Share
  • Waterproof : Yes
  • Telemetry Capable : Yes
  • Data Logging : Yes
  • Auxiliary Wire : Yes
  • Minimum Input Voltage : 2S
  • Maximum Input Voltage : 4S
  • Sensored Capable : Yes
  • Recon G6 Certified ESC : Yes
  • ROAR Certified ESC : Yes
  • Availability: Not available

Product Features
Data-Logging
Enabled by default, the Mamba X captures and records performance data from your vehicle. This allows you to view a detailed turn-by-turn record of what your ESC actually experienced during the run. You will be able to record real-time data such as motor RPM, battery current and voltage, ESC and motor temperature, throttle input, and more. Download and analyze the collected data via Castle Link and make adjustments to maximize both performance and battery life. You can use the Quick Connect Duo (sold separately) to allow you to access both wires into a single Castle Link connection.
Auxiliary Functionality:

The Mamba X allows “on-the-fly” adjustments to be made through the AUX wire once enabled in Castle Link. Once you have selected an AUX wire function, that setting can then be tuned from your transmitter while driving. Torque control, max throttle, max brake and drag brake adjustments are a sampling of the available modes. This real-time tuning allows you to quickly and easily fine-tune your system. . Click here for additional information.

Programmability:
For over 20 years Castle engineers have been setting the bar for industry leading software functionality. The Castle Link Programming Suite is your ticket to creating the perfect setup. To gain access to the host of tuning parameters, simply redeem the coupon for the Castle Link adapter included with your Mamba X purchase or download the Castle Link iOS App and purchase the B-Link Bluetooth Adapter. Download the simple to install software from our website and you are ready to personalize your controller’s parameters. Don’t forget to use the “check for updates” feature in Castle Link to download new software as it becomes available. New features are yours at no cost, a perk for choosing Castle. Click here for settings overview for the Mamba X ESC.
Firmware Updates:
Users will receive free access to all firmware updates, including added features sets using the Castle Link USB Programming Kit or the Castle Link iOS App and a B-Link Bluetooth Adapter. Click here for software versions available for Mamba X.
Advanced Technology
When paired with a Castle 4-POLE 12-SLOT SENSORED MOTOR SMARTSENSE™ software, enabled by default in the Castle Link Programming Suite, will use the motor’s sensors to provide smooth starts, excellent torque, and low-speed drivability.  Once the motor is turning, it seamlessly transitions to Castle’s ULTRA-EFFICIENT sensorless mode with ELECTRONIC TIMING. Smooth sensored startups and high-efficiency sensorless running makes the Mamba X system produce more power and less heat. QUIETSENSE™ is an innovative advancement in the design of sensored motors to deliver the highest precision and most efficient startup.
Power System Alerts:
Mamba X also features updated Audible Alerts that will notify you of possible issues with calibrations and error conditions to help diagnose problems in the field.
Click here to see complete list.
Telemetry Ready:
Mamba X is telemetry ready, which means owners of Futaba T4PX Transmitters will be able to purchase the Castle Creations Telemetry Link for S.BUS2. Real-time data such as ESC temperature, voltages, and RPM can be monitored to ensure performance advantages and spare you the “unknown” parameters that all R/C enthusiasts experience at some point. Telemetry data provides another level of protection and can increase performance.
Industry Leading Warranty:

The Mamba X is proudly designed and manufactured in Olathe, Kansas and is backed by Castle Creations’ 1-year warranty and unparalleled "make-it-right" customer support. Call us, email us, or walk in our front door – we’re here to help. Click here for additional information about our Tier 1 and Tier II warranty.

Rugged and Element Proof:

Housed in a rugged CNC-machined aluminum case and then potted in waterproof epoxy. This not only protects the electronics but ensures any heat generated in the controller can easily be dissipated through the case.

Powerful Integrated BEC:

The high performance Mamba X includes an integrated and powerful 8A adjustable BEC and can push the most extreme 1/10th scale setups and 1/8th scale* race buggies.


*In 1/8th scale setups, the Mamba X is intended to be used for off-road racing in buggies weighing up to 9 lbs (including batteries and ready-to-run). In these 1/8th scale racing setups, the Mamba X should be run at 4S Lipo (16.8V) max and is recommended to be paired with the Castle 1512-1800Kv (P/N: 060-0062-00) or Castle 1515-2200Kv (P/N: 060-0063-00) motor, with appropriate gearing only.


Castle Link Compatible
With the Castle Link USB Programming Kit you can use your Windows™ PC to easily program your controller. Castle Link includes all code for all Castle Link compatible hobby products in one convenient download.

Adjustable settings include:

  • Throttle
  • Braking curve
  • Drag brake
  • Auto LiPo cutoff
  • Punch Control
  • Reverse Type
  • Motor Type

Additional Castle Link benefits include:
  • Access expanded programming and custom parameters for Castle controllers
  • Access to all firmware updates, including added features sets released from Castle Engineering, at no charge.
  • Intuitive Demo Mode capability
  • Ability to default ESC to factory settings
  • Ability to save setup profiles for later use
  • Ability to download and view data logs (on applicable controllers)

ESC Technical Specs
Input Voltage Range: MIN: 2S LiPo
MAX: 6S LiPo (25.2V)
(4s maximum with included 1415 -2400kv motor)
BEC Specifications: Adjustable: 5.5V, 6.0V, 7.5V. or 8.0V (8A Peak), default 5.5V
Operating Environment: Waterproof* design allows for use in nearly any environment.
Brake: Proportional
Reversible: Yes, but may be disabled for racing.
On/Off Switch: Yes
Cooling Fan: Yes, factory equipped (30mm), fully removable** (see Product Use Statements below)
Size: Length: 2.14" (54.4mm)
Width: 1.39" (35.2mm)
Height: 1.18" (30.0mm)
Weight (with wires): 3.56 oz. (101g)
Connectors: 4.0mm female bullets for motor connection.
Items Needed for Operation: Battery Connector required, Castle 6.5mm Polarized Connectors, Castle 4.0mm Polarized Connectors, Traxxas® Power Connectors, or Deans® Ultra Plugs are recommended.
Product Use Statements:

*Although Mamba X is waterproof, it is not intended for operation while completely submerged in liquid. T Always rinse the ESC and motor with clean water after exposure to corrosives or dirt. While the motor and controller may be waterproof, we suggest users confirm that the rest of their vehicle, including the batteries, servos, radio and chassis are also waterproof before exposing them to liquids of any kind.

**The cooling fan must be removed prior to driving in wet conditions. It is not waterproof.

Max. Recommended Vehicle Weight: Up to 6.5lbs with included 1415 - 2400kv sensored motor.
Programmability: Fully programmable Castle feature set using Castle Link USB adapter (coupon for free Link included) and freely downloadable Castle Link Windows software, or the Castle Link iOS App and a B-Link Bluetooth Adapter (sold separately).
Telemetry Link Capable: Yes
Tech Notes:
  1. Mamba X setups frequently hit 100+ amps in peaks and not all LiPos are created equal. Surge ratings should never be used to determine a pack's suitability for a brushless application. Recommended battery capacity for 1:8th scale vehicles is 5000mAh. We recommend using 30C continuous discharge or higher LiPo batteries (or high quality 25C batteries such as Traxxas® Power Cell).
  2. Our experience suggests using only mild gear ratios with NiMH cells. Do not attempt to use NiMH cells in extreme setups.
  3. Applying voltages higher than 25.2V will cause irreparable damage to ESC.
  4. We recommend a high-current connector designed for high-powered electric systems, rated for 70+ amps. Invest in connector sets made for high-powered electric systems such as our Castle 6.5mm Polarized Connectors, Castle 4.0mm Polarized Connectors, Traxxas® Power Connectors, or Deans® Ultra Plugs.
Motor Technical Specs
Input Voltage Range: 3-4S LiPo
Kv: 2400
Max. RPM: 75,000
Size: Length: 69.5mm
Diameter: 36mm
Weight (w/wires): 318g / 11.2oz
Shaft Size: Length: 15.5mm
Diameter: 1/8" (3.17mm)
Mounting Hole Specifications: M3 @ 25mm
Cooling Fan: Optional, coming soon!
Connectors: 4mm male Castle Bullet Connectors
Recommended ESC(s): Combo includes Mamba X ESC.
Max. Recommended Vehicle Weight: See application guidelines
Tech Notes:

Running modes: SMARTSENSE™, Sensored only

Water Resistant Design: The sensor board is coated with silicone conformal coating to protect the sensors from moisture. The sensor connections are not water resistant; water can cause signal loss which could result in loss of sensored capabilities. Castle recommended applying dielectric grease to the outside of the sensor wire connections after installation of the wire. Routine maintenance is recommended after running in wet conditions. Please refer to this document for running and maintaining motors in wet environments.


Resources
Mamba X Driver's Ed Guide
Mamba X Quick Start Guide
1:10th Scale Gearing Chart
SMARTSENSE™ Technology
Audible Alert Reference Chart
Maintaining Motors in Wet Conditions
RC Driver Review Mamba X
Making of Mamba X Video
Sensored Motor Quick Start
1406 Motor 2-Pole Equivalent Turn-Count Data Sheet
1406 Sensored Motor Competitive Testing Results


For support, frequently asked questions, technical documents, and more, visit our support site.

Castle Creations, Inc. warrants this product to be free from manufacturing defects for a period of one year from date of purchase.

This is a high power product with the potential to be very dangerous. Please read the safety information before use. This product may contain chemicals known to the State of California to cause cancer and or birth defects or other reproductive harm.

U.S. Patent # 7400103, 7492122, 7579796, 7740516, 8287328, 8678875, and 8905814 B2 - Other patents pending.

Controller designed, and circuit boards manufactured in Olathe, KS. USA
Controller assembled in Olathe, KS. USA

Motor designed in Olathe, Kansas USA.
Motor made in China.
