Field Link Portable Programmer for Flying
Press and move to zoom
Mouse over image to zoom

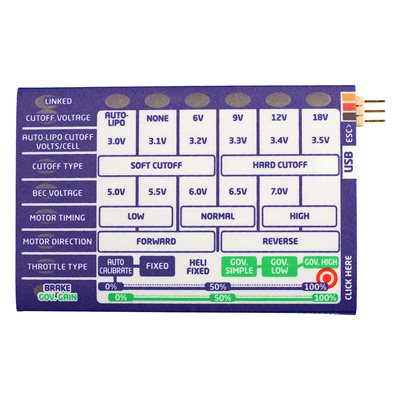

Field Link Portable Programmer for Flying

Product #: 010-0063-01

UPC code:899598001953

Program your controllers in the field!

Field Link Portable Programmer allows you to modify the most commonly used settings in your Castle controller at the touch of a single button.

Field Link for Flying settings:

  • Cutoff voltage
  • Auto LiPo volts per cell (3.0, 3.1, 3.2, 3.3, 3.4, 3.5)
  • Low voltage cutoff type
  • BEC voltage setting*
  • Motor timing*
  • Motor direction
  • Throttle type*
  • Brake
  • Governor gain*

*If applicable to your ESC. Please check "Specifications" section for full list of functions.

This package includes one Field Link portable programmer specifically made to work with Castle air controllers, and a USB cable. For surface controllers, see the Field Link for Driving.

USD $24.18 /EA
USD $20.00 /EA
18% discount
List Price: USD $29.95 /EA
Bookmark and Share
    • EA
  • Availability: This item is in stock.

Full Castle Link Functionality
This Field Link portable programmer can also act as a Castle Link USB Programming kit, allowing you to connect your controller to your Windows™ PC for easy programming. Adjustable settings include:

  • Access expanded programming and parameters for Castle controllers
  • Access to all firmware updates, including added features sets released from Castle Engineering, at no charge.
  • Intuitive Demo Mode capability
  • Ability to default ESC to factory settings
  • Ability to save setup profiles for later use
  • Ability to download and view data logs (on applicable controllers)
Field Link Settings ESC Compatibility
Setting Talon Phoenix Edge Phoenix Edge HV Thunderbird CC Bec and CC BEC Pro
Cutoff voltage
Auto LiPo volts/cell
Low voltage cutoff type
BEC voltage
Motor timing
Motor direction
Throttle type
Brake
Governor gain

Specific Usage Notes:

Thunderbird Controllers
Thunderbird controllers have fewer settings than may be represented on the Field Link. The Field Link will simply skip over these unsupported option rows.

CC BEC and CC BEC Pro
CC BEC and CC BEC Pro have adjustable output voltages only. Use the BEC VOLTAGE row on the Field Link to change their output value.

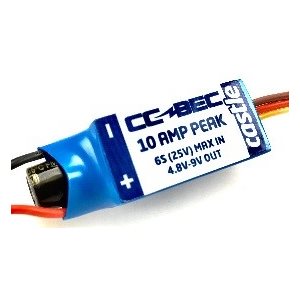

CC BEC
CC BEC does not supply output power when connected to the Castle Link or Field Link. It must therefore be powered with a Y harness like the HV ESC in diagram 2 for field use. The motor pack is not required for this specific setup.

CC BEC Pro
To use the Field Link you must use the adapter cable provided with your CC BEC Pro. Connect one side to the Field Link and the other side to the “Link Port” on your CC BEC Pro.

Technical Specs
System requirements: Castle Link software is compatible with Windows Vista, Windows 7, Windows 8 and Windows 10.
Items needed for operation: Field Link contains a proprietary interface adapter and standard USB cable. All you need is an available USB port on your PC.
Application guidelines:

Works with all Castle Link compatible air controllers including: Phoenix Edge, Phoenix Edge Lite, Phoenix Edge HV, Phoenix Edge Lite HV, Talon, Phoenix, Phoenix HV, Phoenix Ice, Phoenix Ice HV, Thunderbird (limited to select Thunderbird features).

Requires USB 2.0 on a Windows PC running Castle Link software.

Tech notes:

Field Link card cannot change settings on controller series that do not have the listed settings. See settings compatibility chart above for details.

Macintosh users may take advantage of software such as Parallels DesktopVMware Fusion, or Apple's Boot Camp along with Windows Vista, Windows 7, Windows 8 and Windows 10. to run the Castle Link software, provided the Macintosh has an Intel processor. Macintosh installation is not supported by Castle Creations.

If your Field Link LEDs are flashing continuously, it is likely in need of a firmware update. See the Field Link Firmware Compatibility page for more details.

For support, frequently asked questions, technical documents, and more, visit our support site.
