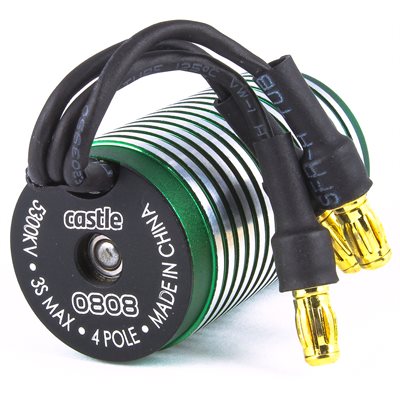

SENSORLESS MOTOR: 1:18th SCALE MOTOR, INRUNNER, 0808-5300KV
$59.95
Skip to product information
Our 4-pole 0808 series motors are intended for on-road and off-road applications running up to 3S LiPo and weighing in at up to 2.25lbs. 0808 motors are available with in combos with both of our race-proven Micro ESCs.
SENSORLESS MOTOR: 1:18th SCALE MOTOR, INRUNNER, 0808-5300KV
060-0038-00
$59.95
Mini Size, Massive Power!
Our 4-pole 0808 series motors are intended for on-road and off-road applications running up to 3S LiPo and weighing in at up to 2.25lbs. 0808 motors are available with in combos with both of our race-proven Micro ESCs.
|
Minimum Input Voltage: 2s |
| Maximum Input Voltage: 3s |
| Sensored Capable: No |
| Recon G6 Certified Motor: No |
| ROAR Certified Motor: No |
NOTE: 0808 MOTORS NOT RECOMMENDED FOR ARRMA GROM series. Due to the motor mounting system, it creates excessive flexing which can easily break the 2mm output shaft. Use of the 0808 motor in any Arrma GROM vehicle will not be covered under warranty.
Technical Specs
| Input Voltage Range: | 2s - 3s LiPo, 4-9 cell NiMH |
| Kv: | 5300 |
| Max RPM: | 100,000 |
| Size: | Length: 1.5" (38mm) Diameter: 0.79" (20mm) |
| Weight (w/wires): |
1.8 oz. / 50g |
| Shaft Size: |
Length: 0.472" (12mm) Diameter: 0.08" (2mm) |
| Mounting Hole Specs: | 2.5mm holes @ 1/2”, 14MM, 5/8” |
| Connectors: | 3.5mm male bullets |
| Items Needed for Operation: | Compatible Electronic Speed Control (ESC). We recommend the Mamba Micro X2. |
| Application Guidelines: | Up to 3S LiPo and weighing in at up to 2lbs. Not intended for 1/16th scale or 1/14th scale vehicles |
| Max Recommended Vehicle Weight: | 2lbs |
| Tech Tips: | Monitor motor temperatures closely; overheating a motor will cause permanent damage to the magnets. Never exceed 180° F on the the motor or ESC. |
